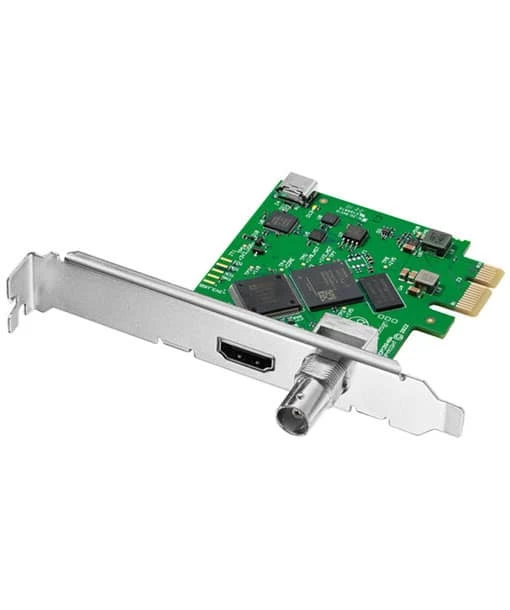

Blackmagic Design DeckLink Mini Monitor HD

Blackmagic Design DeckLink Mini Monitor HD

The Blackmagic Design Decklink Mini Monitor is a 1-lane PCIe slot playback card with SDI and HDMI outputs, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, providing you with just the playback and monitoring functionality for delivering broadcast-quality video via HDMI or SDI monitors.

Monitor your computer’s video output via SDI or HDMI with the Blackmagic Design DeckLink Mini Monitor HD. The card supports up to DCI 2k formats and is compatible with such software packages as DaVinci Resolve and Final Cut Pro. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it’ll handle all common video formats as well as HDR.

KEY FEATURES

• Broadcast-Quality Playback & Monitoring
• 1-Lane PCIe Slot Card (for 1-16 Lanes)
• SDI and HDMI Outputs
• Up to 1080p60 Resolution Support in HDMI
• Supports up to 2K DCI over SDI
• 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
• REC 601/709 Color Space Support
• Mac, Windows, and Linux Compatible

SPECIFICATIONS BLACKMAGIC DESIGN MINI MONITOR HD

Model	BDLKMINIMON3G
Host Connection	PCIe x1 (PCIe 1.0)
Video Output Connectors	1x BNC (3G-SDI) (Monitor) 1x HDMI (2.0) (Monitor)
Output Video Format	SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 1080PsF at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines 59.94 fps SDI (8/10-Bit 4:2:2 YUV) DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (12-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Embedded Audio	SDI: 16-Channel HDMI: 8-Channel
OS Compatibility	macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 Linux
Power Consumption	3 W
Operating Temperature	5 to 40°C
Dimensions / Weight	91.95 mm / 56 g

INCLUDED BY DEFAULT

• Blackmagic Design DeckLink Mini Monitor HD
• Low-Profile Slot Bracket
