Blackmagic Design DeckLink Mini Recorder 4K

Blackmagic Design DeckLink Mini Recorder 4K

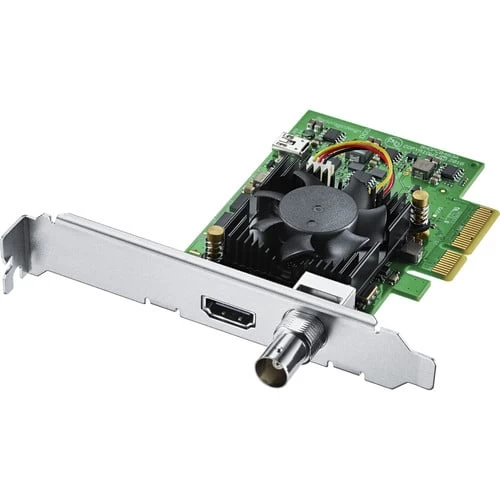

The Blackmagic Design Decklink Mini Recorder 4K captures SD, HD, or 4K footage via HDMI or SDI. Whether recording for broadcast or backing up older media to newer, more robust formats for current projects. The input panel holds a single SD/HD/3G/6G-SDI input and an HDMI 2.0 input, both capable of DCI and UHD 4K resolutions. Support for major software applications such as Wirecast, vMix and OBS.

Consumer and professional video codecs are supported, including H.264, Apple ProRes, AVC-Intra, and more, allowing full-resolution input of nearly any project. Wide software support including Blackmagic Design’s own DaVinci Resolve and Fusion in addition to other popular platforms such as Apple’s Final Cut Pro X, Avid’s Media Composer, and Adobe’s Premiere and After Effects CC, allows for the same hardware to be used with changing workflows over time.

The card itself requires an open PCI-Express slot conforming to at least PCI-E 2.0 x4 specifications. PCI-E x8 and x16 slots in 2.0 and 3.0 variants can also be used. A full-height bracket comes pre-installed, and a low-profile bracket is included for installation in a small form-factor PC or an external chassis.



KEY FEATURES

• SD/HD/3G/6G-SDI Input
• HDMI Input
• PCI-Express 2.0 x4 Interface
• DCI 4K, UHD, HD, and SD Video Support
• 10-Bit Processing
• MacOS X, Windows, and Linux Compatible
• Color Space Conversion: Hardware-based, real-time color space conversion
• HD Up-Conversion: Software-based down-conversion during video playback

SPECIFICATIONS BLACKMAGIC DESIGN MINI RECORDER 4K

Model	BDLKMINIREC
Host Connection	PCIe x4 (PCIe 2.0)
Video Output Connectors	1 x BNC (6G-SDI) Female 1 x HDMI (HDMI 2.0a) Female
Input Video Format	SDI (8/10-Bit 4:2:2 YUV) DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30 fps DCI 2K: 23.98/24/25 fps DCI 2KPsF: 23.98/24/25 fps SDI (8/10/12-Bit 4:4:4 RGB) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps PAL NTSC HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0) DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps PAL NTSC
Embedded Audio Input	HDMI: 16-Channel SDI: 8-Channel
OS Compatibility	Windows 8.1 or Later macOS 10.14 or Later Linux
Power Consumption	8 W
Operating Temperature	0 to 40°C
Dimensions / Weight	11.94 cm / 90 g

INCLUDED BY DEFAULT

• Blackmagic Design DeckLink Mini Recorder 4K
• Low-Profile Bracket
