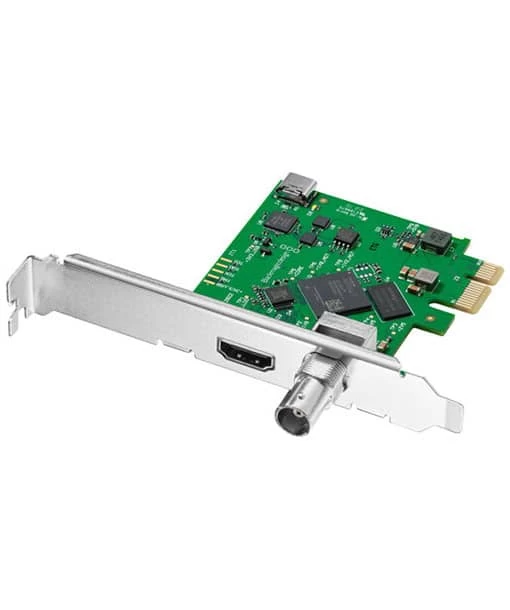

Blackmagic Design DeckLink Mini Recorder HD

Blackmagic Design DeckLink Mini Recorder HD

The Blackmagic Design DeckLink Mini Recorder is a 1-lane PCIe slot playback card with SDI and HDMI inputs is, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, allowing you to capture up to DCI 2K video over SDI, and HD video over HDMI 2.0.

Record HD video over SDI or HDMI, the card is compatible with such software packages as Wirecast, vMix, and OBS. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it’ll handle all common video formats as well as HDR.

PCIe Compatibility

PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)

KEY FEATURES

• Broadcast-Quality Recording
• 1-Lane PCIe Slot Card (for 1-16 Lanes)
• SDI and HDMI Inputs
• Supports up to 2K DCI over SDI
• Up to 1080p60 Resolution Support in HDMI
• 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
• REC 601/709 Color Space Support
• Mac, Windows, and Linux Compatible

SPECIFICATIONS BLACKMAGIC DESIGN MINI RECORDER HD

Model	BDLKMINIREC3G
Host Connection	PCIe x1 (PCIe 1.0)
Video Inputs	1x BNC (3G-SDI) 1x HDMI (2.0)
Input Video Format	SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps SDI (8/10-Bit 4:2:2 YUV) DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8-Bit 4:4:4 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (12-Bit 4:4:4 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Embedded Audio	SDI: 16-Channel HDMI: 8-Channel
OS Compatibility	macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 Linux
Power Consumption	3 W
Operating Temperature	5 to 40°C
Dimensions / Weight	91.95 mm / 56 g

INCLUDED BY DEFAULT

• Blackmagic Design DeckLink Mini Recorder HD
• Low-Profile Slot Bracket
