Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card

Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card

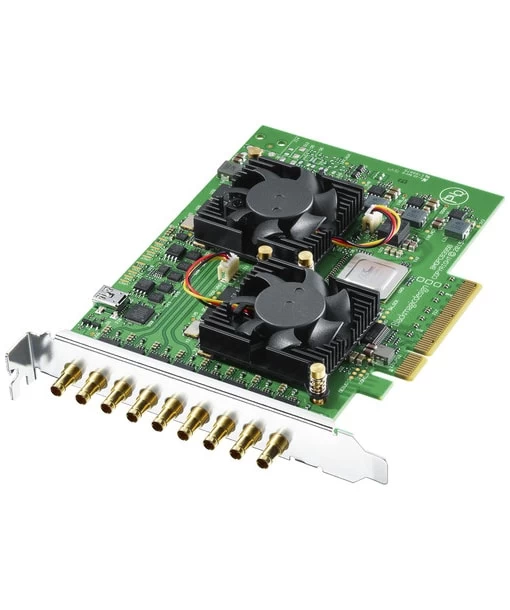

The Blackmagic Design Quad 2 is an 8-lane PCIe card that features eight bidirectional 12-bit SD/HD/3G-SDI connectors that are independently configurable to provide any combination of eight capture or playback channels at up to 1080p60. The card supports compressed video formats such as ProRes and DNxHD, as well as uncompressed 10-bit 4:2:2 and 4:4:4 video, making it ideal for use in both live broadcast and post-production. It is compatible with Mac, Windows, and Linux computers, and supported by a wide range of software applications. For use with applications that don’t capture video on their own, Blackmagic’s Media Express software is included, allowing you to capture, organize, and manage your media.

KEY FEATURES

• Eight bidirectional 12-bit SD/HD/3G-SDI connectors ( 8 x Bidirectional SD/HD/3G-SDI)
• 8-lane PCIe interface compatible with Mac-, Windows-, and Linux-based workstations and servers
• Each SDI input and output can be a different video standard, as they’re all independent
• Single black burst/tri-sync reference input
• Supports uncompressed 10-bit 4:2:2 and 4:4:4 signals
• Cross-conversion between 720p and 1080p on video capture
• SD upconversion to 720p or 1080p on video capture
• HD to SD downconversion on video capture or playback
• Supports 16 channels of embedded audio per input/output
• Resolutions up to 1080p60
• Inputs/Outputs Independently Switchable
• Reference Input
• Up/Down/Cross Conversions
• Media Express Application Included

SPECIFICATIONS BLACKMAGIC DESIGN DECKLINK QUAD 2

Model	BDLKDVQD2
Host Connection	PCIe x8 (PCIe 2.0)
Shared Input/Output Connectors	8 x BNC (3G-SDI) Male
Input Video Format	SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 60 fps PAL: 50 fps
Input Audio Format	Analog: 48 kHz / 24-Bit
Embedded Audio Input	SDI: 16-Channel
Output Video Format	SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p: 23.98/24/25/29.97/30/50/59.94 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 60 fps PAL (768 x 576): 50 fps
Embedded Audio Output	SDI: 16-Channel
OS Compatibility	Windows 8.1.10 or Later macOS 10.14.15 or Later Linux
Power Consumption	22 W
Operating Temperature	5 to 40°C
Dimensions	16 cm
Weight	130 g

INCLUDED BY DEFAULT

• Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card
• Included Software: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, Drivers for macOS, Windows 8/10, and Linux
