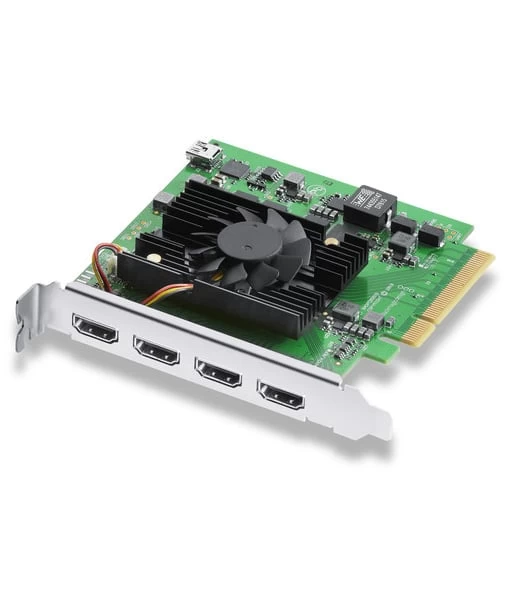

Blackmagic Design DeckLink Quad HDMI Recorder Capture Card

Blackmagic Design DeckLink Quad HDMI Recorder Capture Card

Use the Blackmagic Design Decklink Quad HDMI Recorder Capture Card to ingest high-resolution 4K video and audio for streaming or editing applications. The DeckLink Quad is a PCIe card that features four HDMI 2.0b inputs that provide support for resolutions up to DCI 4K60. Additionally, the DeckLink Quad supports eight channels of embedded 24-bit 48 kHz audio. Supports major software applications such as Wirecast, vMix, and OBS.

The DeckLink Quad offers flexible format and system support, letting you work with popular compressed video formats such as ProRes, AVCHD, XDCAM, and DNxHD, as well as up to 12-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications.

The DeckLink Quad is compatible with Mac, Windows, and Linux based workstations. Drivers and utility software are available on the manufacturer’s website.

KEY FEATURES

• PCIe capture/playback card compatible with Mac, Windows, and Linux-based workstations and servers
• Four HDMI 2.0b inputs
• Up to DCI 4K60 capture
• 12-bit 4:4:4 color up to 4K30 in all modes
• HDMI inputs are switchable between SD, HD, UHD 4K, DCI 4K, and DVI modes
• Rec. 601, Rec. 709, and Rec. 2020 color space
• Copy protection compliant; HDMI input is unable to capture from copy protected HDMI sources
• Supports eight channels of embedded 24-bit 48 kHz audio in SD/HD/UHD/DCI 4K
• Record up to DCI 4K60 HDMI Video

SPECIFICATIONS BLACKMAGIC DESIGN QUAD HDMI RECORDER



Model	BDLKDVQDHDMI4K
Host Connection	PCIe x8 (PCIe 1.0)
Video Input Connectors	4 x HDMI (HDMI 2.0b)
Input Video Format	HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) PAL: 50 fps NTSC: 59.94 fps 720p: 50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps DVI 480p: 60 fps
HDCP Support	No
OS Compatibility	Windows 8.1 or Later macOS 10.14 or Later Linux
Power Consumption	23 W
Operating Temperature	5 to 40°C
Dimensions / Weight	108.97 mm / 128 g

INCLUDED BY DEFAULT

• Blackmagic Design DeckLink Quad HDMI Recorder Capture Card
