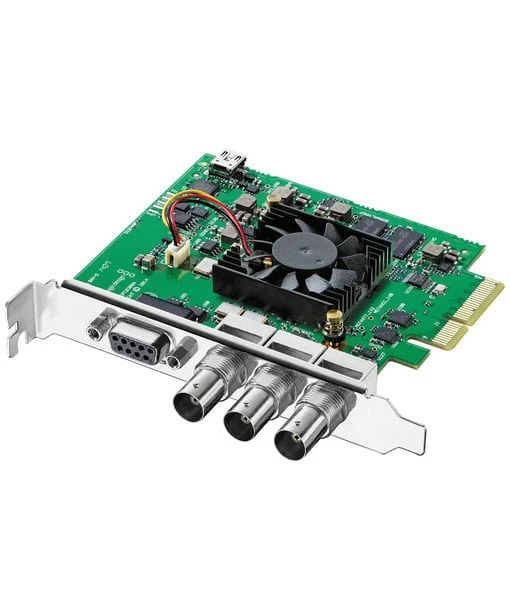

Blackmagic Design Decklink SDI 4K Capture & Playback Card

Blackmagic Design Decklink SDI 4K Capture & Playback Card

The Blackmagic Design Decklink SDI 4K Capture & Playback Card features a single multi-rate SDI input and multi-rate SDI output. These multi-rate connections accept single-link SD, HD, 3G, and 6G-SDI signals, providing support for resolutions from SD to Ultra HD 4K (3840×2160) and DCI 4K (4096×2160). Additionally, the Decklink SDI 4K includes RS-422 deck control, internal keying, and a reference input.

Decklink SDI 4K offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 10-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. Decklink SDI 4K is compatible with Mac, Windows, and Linux based workstations.

KEY FEATURES

• PCIe capture/playback card compatible with Mac, Windows, and Linux based workstations and servers
• 10-bit, 4:2:2 UHD 4K or DCI 4K by single-link 6G-SDI
• 10-bit, 4:4:4 1080p by single-link 6G-SDI
• HD to SD down-conversion
• SD to HD up-conversion
• Hardware cross conversion between 720p and 1080p on playback
• RS-422 deck control
• Internal keying
• Reference input
• Blackburst and tri-sync
• Supports 16 channels of embedded SDI audio in HD, 2K, and 4K resolutions; 8 channels in SD

SPECIFICATIONS

Model	BDLKSDI4K
Card	PCIe 1.0 x1
Video Inputs	1x BNC (6G-SDI)
Video Outputs	1x BNC (6G-SDI)
Other I/O	1x BNC Reference Input
Simultaneous Multi-Input Support	Yes
Input Video Format	SDI (10-Bit 4:4:4/4:2:2) 576i / 625 lines at 50 fps 480i / 525 lines 59.94 fps 720p 50/59.94/60 fps 1080p 23.98/24/25/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 4K 23.98/24/25 fps DCI 2K 23.98/24/25 fps
Output Video Format	SDI (10-Bit 4:4:4/4:2:2) 576i / 625 lines at 50 fps 480i / 525 lines 59.94 fps 720p 50/59.94/60 fps 1080p 23.98/24/25/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 4K 23.98/24/25 fps DCI 2K 23.98/24/25 fps
Video Standard Compliance	SMPTE 259M/292M/296M/372M/425M/ST-2081 ITU -R BT.601/BT.656
HDCP Support	No
Operating Temperature	5 to 40°C
Dimensions	9.53 cm
Weight	128 g

INCLUDED BY DEFAULT

• Blackmagic Design Decklink SDI 4K Capture & Playback Card
• SD Card with Support Software/Drivers
