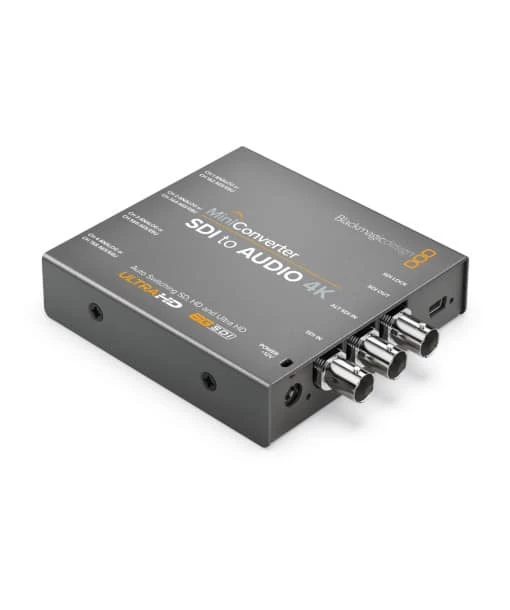

Blackmagic Design Mini Converter SDI to Audio 4K
The Blackmagic Design Mini Converter SDI to Audio 4K includes everything you need to de‑embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more!
KEY FEATURES
SDI Video Inputs
- 1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
SDI Video Outputs
- 1 x SDI Loop Output.
Analog Audio Outputs
- 4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
Digital Audio Outputs
- 8 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Inputs
- Automatically switches over if main SDI input is lost.
Multi Rate Support
- Auto detection SD, HD or 6G‑SDI.
Updates and Configuration
- USB
Reclocking
- Yes
SPECIFICATIONS Blackmagic Design Mini Converter SDI to Audio 4K
| Model | CONVMCSAUD4K |
| SDI Video Input | 1 x SD/HD/3G/6G-SDI 1 x SD/HD/3G/6G-SDI-SDI redundant input |
| SDI Video Output | 1 x SD/HD/3G/6G-SDI |
| Audio Output | 4 x 1/4″ jacks 4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio |
| Multi-Rate Support | Auto detection of SD, HD, 2K, UHD, and 4K signals |
| Reclocking | Yes |
| Format Support | SD: NTSC 525/29.97 and 525/23.98 PAL 625/25HD: 720p 59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/602K: 2048x1080PsF 23.98/24/25 2048/1080p 23.98/24/25UHD/4K 3840x2160p 23.98/24/25/29.97/30 4096x2160p 23.98/24/25/29.97/30 |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601 |
| SDI Video Rates | Switchable between SD, HD, 3G, and 6G-SDI |
| SDI Auto Switching | Automatically detects SD, HD, 3G, or 6G-SDI |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Audio Sampling | 24-bit, 48 kHz |
| SDI Color Precision | 4:2:2, 4:4:4 |
| SDI Color Space | YUV, RGB |
| Settings Control | DIP switches or USB software for Mac OS X and Windows |
| Firmware Upgradeable | Via USB 2.0 |
| Power Supply | 12 VDC |
| Power Consumption | 8.4 W |
| Operational Voltage Range | 12 to 31 VDC |
| Operating Temperature | 32 to 104° F (0 to 40 ° C) |
| Storage Temperature | -4 to 113° F (-20 to 45 ° C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 4.52 x 3.63 x 0.90″ (11.48 x 9.22 x 2.29 cm) |
| Weight | 7.61 oz (215.74 g) |
INCLUDED BY DEFAULT
- Mini Converter SDI to Audio 4K
- 12V universal power supply with international socket adapters
