Blackmagic Design Pocket Cinema Camera 6K (Canon EF/EF-S)

Blackmagic Design Pocket Cinema Camera 6K (Canon EF/EF-S)

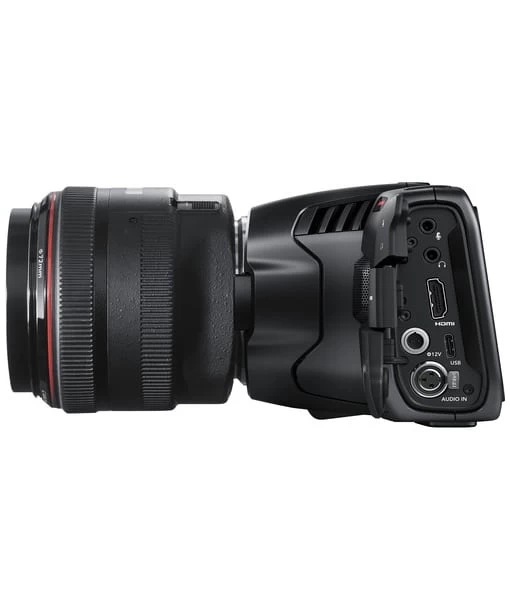

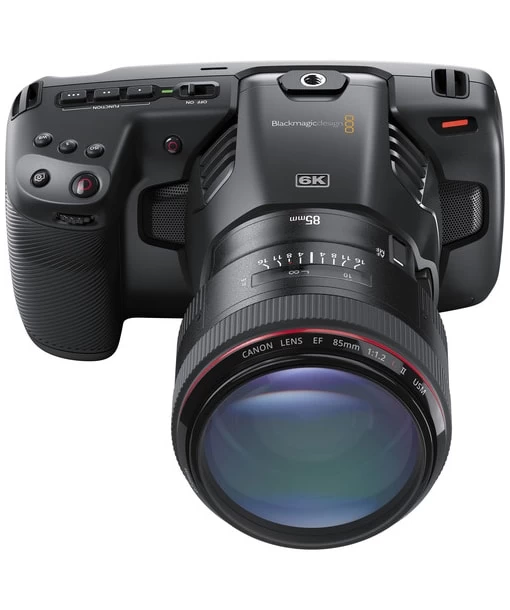

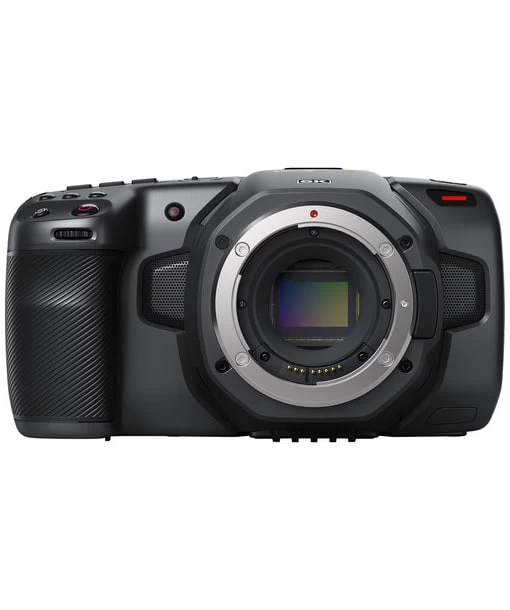

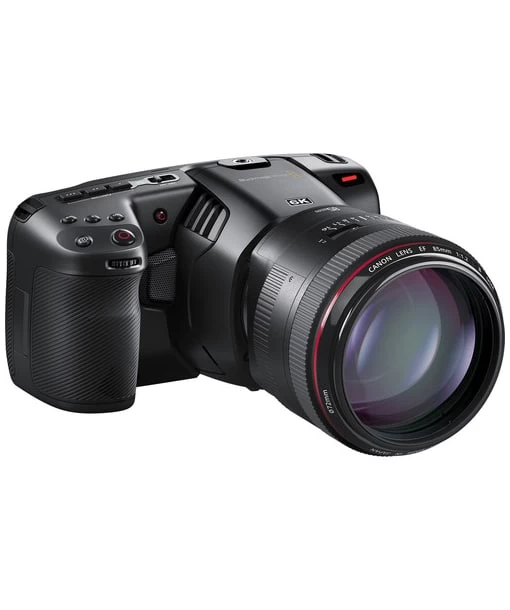

The Blackmagic Design Pocket Cinema Camera 6K is a full-featured, compact Super35 camera recording up to 50 fps 6144 x 3456 video, featuring an active Canon EF mount, letting users take advantage of the EF/EF-S–mount lenses.

Turn to the BMPCC 6K to turn one frame into two by cropping a second shot from one frame, to upscale to 8K, or to simply capture rich, detailed footage with your favorite EF/EF-S–mount lens. The same internal color processing makes it easy to intercut BMPCC 6K with BMPCC 4K footage. Record using the internal CFast 2.0 and SD/UHS-II card slots or output via the USB-C port to capture longer clips to an external drive. The BMPCC 6K includes a DaVinci Resolve Studio license and supports Blackmagic Raw capture from the sensor. Using the Raw format with the sensor’s metadata simplifies editing to suit any project and makes editing easier with DaVinci Resolve.

The compact BMPCC 6K retains the familiar controls and menu layout of the 4K version in a minimally deeper form to accommodate the EF lens mount. Features such as ISO support up to 25,600, 13 stops of dynamic range, 1920 x 1080 monitor output, and a bright 1920 x 1080 touchscreen 5″ LCD are carried through from the BMPCC 4K as well. Professional audio support includes a mini XLR input with phantom +48V power and four built-in mics. Whether you’re shooting an indie film, wildlife, or fashion, the BMPCC 6K’s compact form is less intrusive than larger cameras, lending itself to more intimate setups. The BMPCC 6K is fashioned from a carbon fiber polycarbonate composite that is both lightweight and durable.

Additional pro features include lens metadata support, 3D LUT application for both monitoring and recording, up to 21.2MP still image capture, and a multifunction grip that enables single-handed operation. Sync multiple cameras for a concert, event, or other multicamera shoots by linking an external timecode generator to the BMPCC 6K’s internal timecode generator (accessed via the 3.5mm audio port). Then save valuable time by using Resolve 16.1 to automatically sync your multicamera shots in post.

In addition to the DaVinci Resolve Studio activation key, the BMPCC 6K comes with a power supply offering simultaneous battery charging, an LP-E6 battery, a lens port cap, and a camera strap.

KEY FEATURES

• Active Canon EF/EF-S Mount
• Super 35-Sized HDR Sensor
• Record 6K 6144 x 3456 up to 50 fps
• Dual Native 400 & 3200 ISO to 25,600

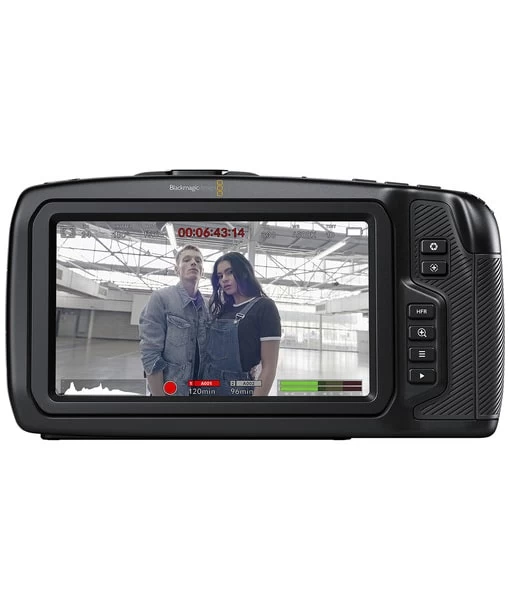

• 5″ 1920 x 1080 Touchscreen Display
• Record up to 120 fps Windowed HD
• CFast 2.0 & SD/UHS-II Card Slots
• External Recording via USB Type-C
• 13-Stop Dynamic Range, 3D LUT Support
• Includes DaVinci Resolve Studio License

SPECIFICATIONS BLACKMAGIC POCKET CINEMA CAMERA 6K

Model	CINECAMPOCHDEF6K
Sensor size	23.1 x 12.99 mm (Super35)
Sensor Type	CMOS
Sensor Resolution	Effective: 21.2 Megapixel (6144 x 3456)
Shutter Type	Rolling Shutter
ISO	100 to 25,600 (Expanded)
Advertised Dynamic Range	13 Stops
Lens Mount	Canon EF
Lens Communication	Yes
Built-In ND Filter	No
Built-In Microphone Type	Stereo
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC (UHS-II) Single Slot: CFast
Variable Frame Rates	Up to 120 fps
Raw Recording	Raw: 6144 x 3456 at 23.98/24/25/29.97/30/50 fps (49 to 483 MB/s) 6144 x 2560 at 23.98/24/25/29.97/30/50/59.94/60 fps (37 to 359 MB/s) 5744 x 3024 at 23.98/24/25/29.97/50/59.94/60 fps (40 to 395 MB/s)
Recording Modes	ProRes 422HQ: 4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (24.25 to 117.88 MB/s) 3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 to 110 Mb/s) 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (27.5 MB/s) ProRes 422: 4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (78.63 MB/s) 3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (73.6 MB/s) 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (18.4 MB/s) ProRes 422LT: 4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (54.63 MB/s) 3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (51 MB/s) 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (12.75 MB/s) ProRes 422 Proxy: 4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (24.25 MB/s) 3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 MB/s) 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (5.6 MB/s)
Video Output	4:2:2 10-Bit via HDMI: 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Raw Output	USB: 6144 x 3456 at 23.98/24/25/29.97/30/50 fps 6144 x 2560 at 23.98/24/25/29.97/30/50/59.94/60 fps 5744 x 3024 at 23.98/24/25/29.97/30/50/59.94/60 fps
Video Connectors	1 x HDMI Output
Audio Connectors	1 x Mini XLR Mic/Line Level (+48 V Phantom Power) Input 1 x 3.5 mm Stereo Mic/Line Level Input 1 x  3.5 mm Stereo Headphone Output
Other I/O	1 x USB Type-C USB 3.1 Gen 1 Control, Video Output 1 x 3.5 mm Timecode Input (Shared with 3.5 mm Mic/Line input)
Display	Fixed Touchscreen LCD 1920×1080
Battery Type	Canon LP-E6
Power Connectors	1 x Weipu SF610/S2 Input
Operating Temperature	0 to 40°C
Accessory Mount	1 x 1/4″-20 Female
Dimensions and Weight	177.8 x 101.6 x 96.52 mm, 898 g
Material of Construction	Carbon Fiber

INCLUDED BY DEFAULT

• Blackmagic Design Pocket Cinema Camera 6K (Canon EF/EF-S)
• Lens Port Cap
• Camera Strap
• Power Supply with International Adapters (30W)
• LP-E6 Battery
• DaVinci Resolve Studio Activation Key
• Lens not included
