Blackmagic Design Studio Fiber Converter

Blackmagic Design Studio Fiber Converter

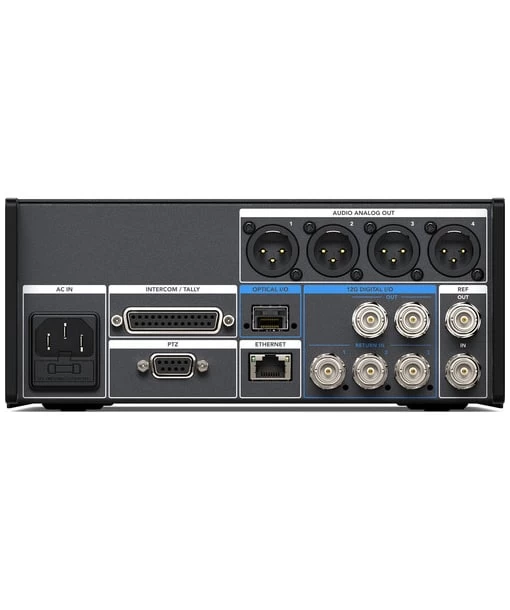

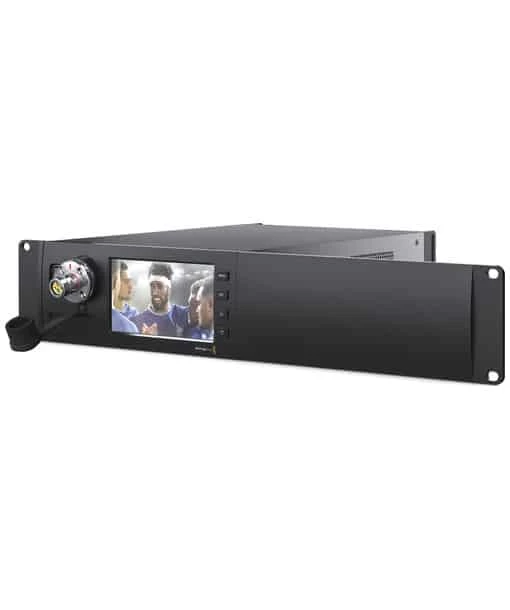

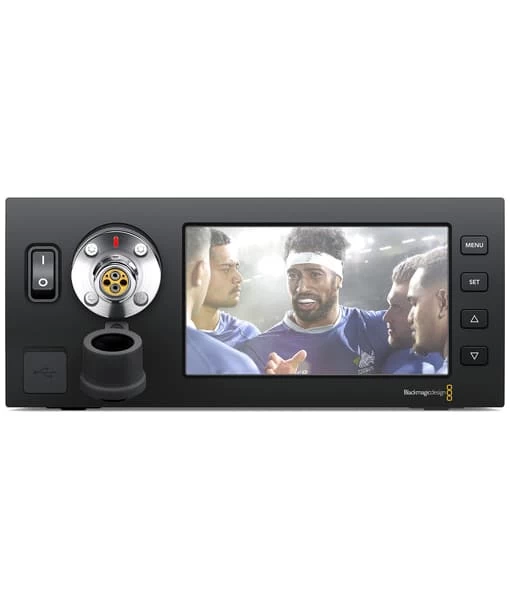

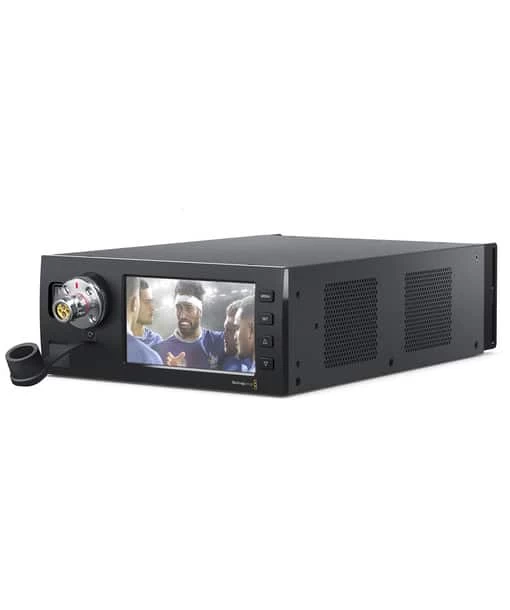

The Blackmagic Design Studio Fiber Converter is a bi-directional fiber optic interface for the Blackmagic Camera Fiber Converter. Able to communicate with a Camera Fiber Converter up to 2.5KM away, the Studio Fiber Converter can be implemented in OB vans, television studios, and large venues to carry video, audio, communication, and control signals over a single SMPTE fiber connection. On the rear panel, SDI connections for HD or UHD 4K video and HD return feeds are available. Audio breaks out from the four XLR connections. Additional connections include reference in and out, PTZ and intercom/tally on D connectors, Ethernet, and SFP fiber (requires separately available SFP cage). The front panel features a lone SMPTE fiber connector for the Camera Fiber Converter and a 5″ display.

KEY FEATURES

• Connects to Camera Fiber Converter
• For HD and UHD 4K Productions
• Bi-Directional SMPTE Fiber Link
• XLR Audio Breakout
• Reference and Control Connections

SPECIFICATIONS BLACKMAGIC STUDIO FIBER CONVERTER

Connections	SMPTE Optical Fiber: 1 x SMPTE 304 12G-SDI Input: 3 x BNC 12G-SDI Output: 2 x BNC Analog Audio Output: 4 x XLR Optical Fiber Output: 1 x SFP Computer: 1 x USB Type-C
Video	3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.9 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
SDI Standards	SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M
Audio Sampling	24-bit, 48 kHz
Video Sampling	4:2:2
Bit Depth	10-bit
Color Space	REC 709, REC 2020
Power	110 – 240 VAC
Operating Temperature	0 to 40°C
Dimensions	21 x 8.8 x 37.2 cm
Weight	2.8 kg

INCLUDED BY DEFAULT

• Blackmagic Design Studio Fiber Converter
