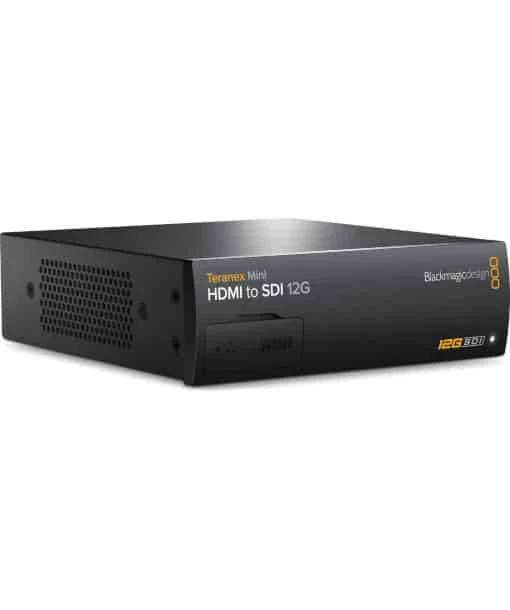

Blackmagic Design Teranex Mini HDMI to SDI 12G Converter

The Blackmagic Teranex Mini HDMI to SDI 12G converts HDMI to 12G-SDI. Works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. Embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections.

KEY FEATURES

• Advanced High-Data Rate Signal Converter
• Supports Up to 4K DCI 4096x2160p Signals
• Two Independent 12G-SDI Outputs
• Run 4096x2160p 70 ft Using 6G-SDI Cables
• XLR Connections Switchable to AES/EBU
• Ethernet Port for Remote Control or PoE
• Supports Optional LCD Smart Front Panel
• Intelligent Thermal Heat Dissipation
• 3 Units 1U Rack-Mountable in 19″ Rack
• Manage Numerous Units from a Mac or PC

SPECIFICATIONS Teranex Mini HDMI to SDI 12G

Model	Blackmagic Design Teranex Mini HDMI to SDI 12G

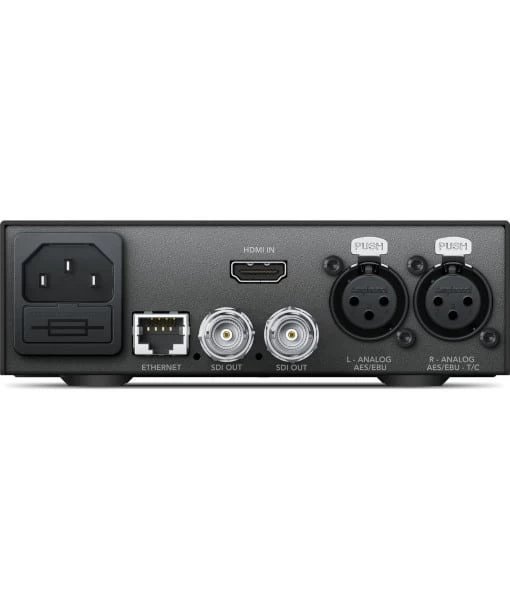

HDMI Input	1x HDMI 2.0 type A
SDI Video Output	2x SDI on BNC (automatically matches SD, HD, 3G, 6G, 12G-SDI HDMI video input)
XLR Audio Input	2 channels professional balanced analog audio via XLR connectors Right XLR can be configured for timecode input
AES/EBU Audio Input	4 channels professional 110 ohm balanced digital audio via XLR connectors Right XLR can be configured for timecode input
Multi Rate Support	Automatic switching between SD, HD, 2K, and 4K
Updates and Configuration	USB or Ethernet
Re-Clocking	Yes
SD Format Support	525/29.97 NTSC, 625/25 PAL
HD Format Support	1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60
2K Format Support	2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25
4K Format Support	3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
SDI Compliance	SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, and ITU-R BT.601
SDI Video Rates	SDI video connections are auto switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI
SDI Video Sampling	4:2:2 and 4:4:4
SDI Audio Sampling	Television standard sample rate of 48 kHz and 24-bit
SDI Color Precision	4:2:2 and 4:4:4
SDI Color Space	YUV
HDMI Format Support	525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
HDMI Color Space	REC 601, REC 709
HDMI Color Precision	YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K
Copy Protection	HDMI input is unable to capture from copy protected HDMI sources Always confirm copyright ownership before capture or distribution of content
Software Control	Mac OS X and Windows software upgrade via USB and Ethernet
Internal Software Upgrade	Via included updater application
Basic Settings Control	Mini Switches, USB, and Ethernet via free software utility
Power Supply	1x built-in international AC power supply with IEC C14 inlet IEC power cable required (not included) 90 – 240 VAC input
Power Over Ethernet	Can be powered via 48 VDC using PoE (Power-over-Ethernet)
Power Consumption	15 W
Operational Voltage Range	90 – 240 VAC
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Relative Humidity	0 to 90%
Dimensions	14 x 4.6 x 17 cm
Weight	0.6 kg

DIMENSIONS





INCLUDED BY DEFAULT

• Blackmagic Design Teranex Mini HDMI to SDI 12G Converter
• Software SD Card
