Aanbieding!

Blackmagic Design Ultra Studio 4K Mini - Afbeelding 2

Oorspronkelijke prijs was: 365,00 €.Huidige prijs is: 98,99 €.

Professional Capture and Playback for Thunderbolt 3 Computers. The Blackmagic Design Ultrastudio 4K mini is a capture and playback device with lcd status and preview screen capturing up to 4K60 via 12G-SDI or up to 4K30 video via HDMI.

12G-SDI & HDMI 2.0 Input/Output
1 x 40 Gb/s Thunderbolt 3 Interface
3″ LCD Status/Preview Screen
1 x 40 Gb/s Thunderbolt 3 Interface

Artikelnummer: BL-BDLKULSDMINI4K Categorie: Video Capture and Playback

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

Blackmagic Design UltraStudio 4K Mini Capture and Playback for Thunderbolt 3

Name: Naadloos winkelen: eenvoudige retourzendingen bij aankoop van Blackmagic Design Ultra Studio 4K Mini op Beveiligingscamera Winkel in Nederland.
SKU: BL-BDLKULSDMINI4K
Price: 98.99 EUR
Availability: InStock

Professional Capture and Playback for Thunderbolt 3 Computers. The Blackmagic Design The UltraStudio 4K Mini links your Thunderbolt 3 computer to any of a variety of video components for capture, playback, or streaming. This portable unit captures up to DCI 4K60 4:2:2 via single-link 12G-SDI or up to DCI 4K30 4:2:2 video via HDMI. Record 12-bit High Dynamic Range (HDR) footage at rates up to DCI 4K30 and 8-/10-bit video at rates up to DCI 4K60. A built-in LCD screen enables you to monitor your signal, and an SD card reader provides instant access to your SD media. The compact UltraStudio 4K Mini’s Thunderbolt 3 interface offers lightning-fast connections and will trickle-charge a connected computer. Audio features include 16-channel SDI and 8-channel HDMI embedded input and output, a 3-pin XLR audio input, and a headphone output.

Versatile Compatibility

The UltraStudio Mini 4K Thunderbolt 3 supports both compressed and uncompressed video, is Windows, macOS, and Linux compatible, and supports the most popular codecs. The UltraStudio 4K Mini also supports 3D capture and playback via HDMI, plus 3D SDI playback at rates up to DCI 4K30. The free version of DaVinci Resolve and the additional software are included via a QR code download. Power the UltraStudio Mini 4K Thunderbolt 3 via its internal 100-240 VAC adapter.

Compact Design

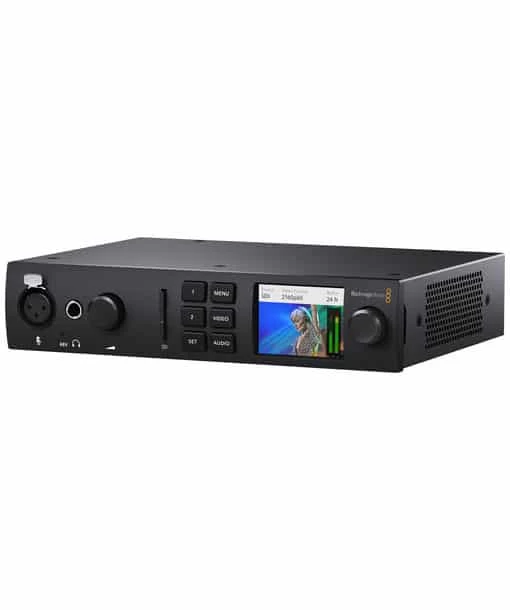

Portable design with front-panel control buttons, LCD with video, audio, and status information, XLR mic input, and an SD card slot.

Supports up to DCI 4K60 Video

8/10/12-bit HDR capture and playback with multi-rate support from SD to DCI 4K60.

Software Application Support

DaVinci Resolve
Fusion
Final Cut Pro X
Adobe Premiere Pro CC
Avid Media Composer
Adobe After Effects CC
Avid Pro Tools
Steinberg Cubase
Steinberg Nuendo
Adobe Photoshop CC

Supports Macs with Thunderbolt 3

UltraStudio has been specifically designed for the Mac platform’s unique needs and is supported by a huge range of popular video software. The included drivers have been optimized for high performance video, plus the features needed for editing software such as DaVinci Resolve, Final Cut Pro X, Premiere Pro CC, and Avid Media Composer. For visual effects get full compatibility with Fusion, After Effects CC and Photoshop CC. For audio get compatibility with ProTools, Steinberg Nuendo and Cubase. For streaming use OBS, Wirecast, Livestream Producer.

KEY FEATURES

12G-SDI & HDMI 2.0 Input/Output
1 x 40 Gb/s Thunderbolt 3 Interface
3″ LCD Status/Preview Screen
DCI 4K60 4:2:2 Single-Link 12G-SDI I/O
DCI 4K30 4:4:4 Single-Link 12G-SDI I/O
DCI4K60 4:4:4 via HDMI
8-, 10- & 12-Bit Processing
2K/HD/SD via SDI or HDMI
RS-422 Deck Control
macOS, Windows & Linux Compatible

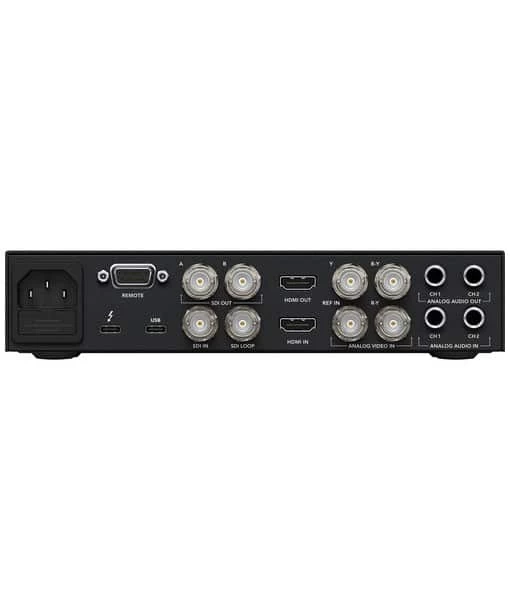

SPECIFICATIONS

Model	Ultrastudio 4K Mini
System Connection	USB-C (Thunderbolt 3)
Video Inputs	1x BNC (12G-SDI) 1x HDMI (2.0b) 2x Coax (Component)
Audio Inputs	1x XLR 3-Pin 1x 2RCA Stereo
Video Outputs	2x BNC (12G-SDI) (Program) 1x BNC (12G-SDI) (Loop Output) 1x HDMI (2.0b) 2x Coax (Component)
Audio Outputs	1x 2RCA Stereo Female 1x 1/4″ TRS Female
Other I/O	1x USB-C 1x DE-9/DB-9 Control
Input Video Format	SDI (10-Bit 4:4:4/4:2:2 YUV) DCI 4K up to 60 fps SDI (12-Bit 4:4:4/4:2:2 YUV) DCI 4K up to 30 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080i up to 60 fps 720p up to 60 fps 480i / 525 lines at 59.94 fps 576i / 625 lines at 50 fps HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0) DCI 4K up to 60 fps UHD 4K up to 60 fps 1080p up to 60 fps 1080i up to 60 fps 720p up to 60 fps 480i / 525 lines at 59.94 fps 576i / 625 lines at 50 fps
Input Audio Format	Analog: 48 kHz
Output Video Format	SDI (10-Bit 4:4:4/4:2:2) DCI 4K up to 60 fps SDI (12-Bit 4:4:4/4:2:2) DCI 4K up to 30 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080i up to 60 fps 720p up to 60 fps 480i / 525 lines at 59.94 fps 576i / 625 lines at 50 fps HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0) DCI 4K up to 60 fps UHD 4K up to 60 fps 1080p up to 60 fps 1080i up to 60 fps 720p up to 60 fps 480i / 525 lines at 59.94 fps 576i / 625 lines at 50 fps
Output Audio Format	Analog: 48 kHz
Embedded Audio	SDI: 16-Channel HDMI: 8-Channel
Video Standard Compliance	SMPTE 259M/274M/296M/424M/425M-A/425M-B/2048-1/ST-2036/ST-2081-10/ST-2082-10/ST-2108-1
HDR Compatibility	HDR10, Hybrid Log Gamma
Media Card Reader	1x SD (UHS-II [312 MB/s])
OS Compatibility	macOS 11.1 to 12.0 or Later Windows 10 to 11 (64-Bit Only) Linux
Power I/O	1x USB-C Output 1x Barrel Input
Power Consumption	Power Supply: 100 to 240 VAC (75.3 W)
Operating Temperature	5 to 40°C
Dimensions	17.8 x 4.6 cm
Weight	1.2 kg
