Blackmagic Design Video Assist 3G-SDI/HDMI 5″ Recorder/Monitor

Blackmagic Design Video Assist 3G-SDI/HDMI 5″ Recorder/Monitor

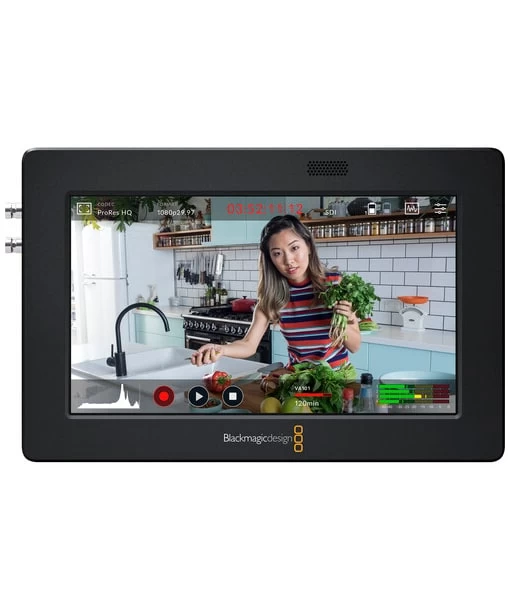

The Blackmagic Design Video Assist 3G-SDI/HDMI 5″ Recording Monitor adds professional monitoring and high-quality recording to your camera. It features a bright 5″ 1920 x 1080 display with 300 cd/m² brightness to help you frame and focus your shots, and it provides 3G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record video resolutions up to 1080p60 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio. Firmware update 3.3.1 adds a video output via the USB Type-C port that can be used to convert your connected camera for webcam use. It also enables you to select channels for audio monitoring.

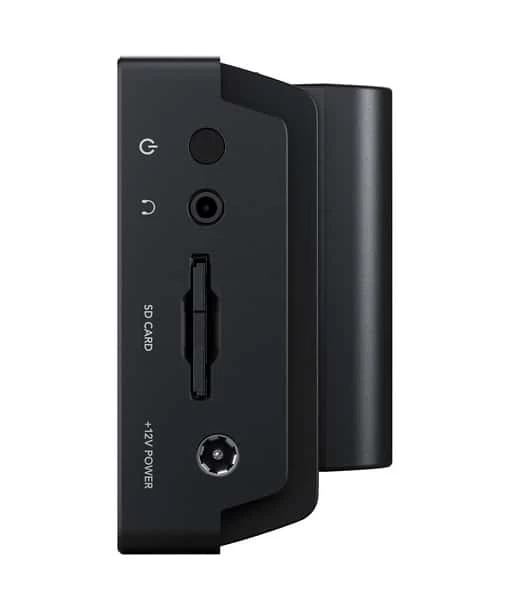

The Video Assist 3G 5″ records to an SDXC/SDHC memory card using a single UHS-I SD card slot. Use the USB Type-C port to record for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD codecs.

This monitor’s touchscreen interface enables you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope, and many more scopes and exposure tools. There is also a tally light on top of the monitor to indicate it is operating and recording. Choose from 11 languages for easier use of on-screen text displays and menu options. Power the monitor using the included 12V power adapter or using separately available Sony L-Series type batteries on the dual battery slots.

KEY FEATURES

• 1920 x 1080 5″ Touchscreen LCD
• HDMI & 3G-SDI Video Inputs
• Records up to 1080p60 Video
• Stores to 1 x SDXC/SDHC Memory Card
• Loop-Through Video Outputs
• Waveform, Vectorscope & Histogram
• Focus Peaking, False Color & Zebra
• 11 x Display Language Options

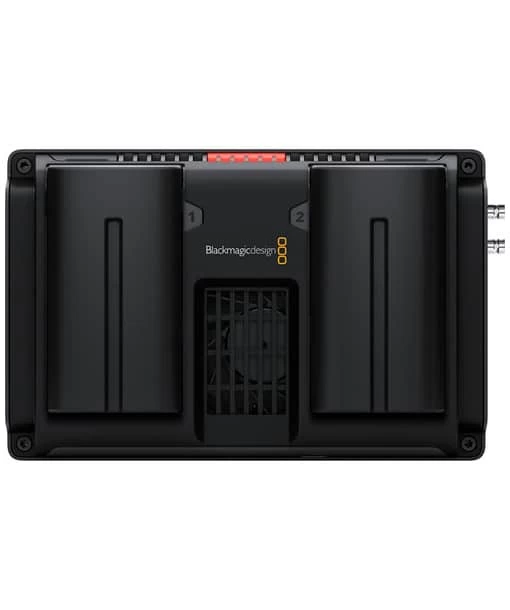

• Dual Sony L-Series Type Battery Slots

SPECIFICATIONS BLACKMAGIC VIDEO ASSIST 3G-SDI/HDMI 5″ Recorder/Monitor

Model	HYPERD/AVIDA12/5HDR
Panel Type	TFT LCD
Display Size	5″ / 12.7 cm
Resolution	1920×1080
Aspect Ratio	16:9
Touchscreen	Yes
Max Brightness	300 cd/m2
Viewing Angle	Horizontal: 135°
Pixels per Inch (ppi)	441 ppi
Image Controls	Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

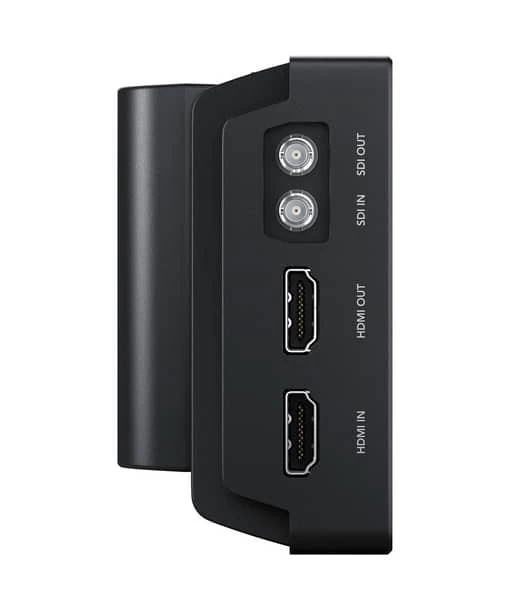

Video I/O	1 x HDMI Type A Input 1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Input 1 x HDMI Type A Output 1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Output 1 x USB Type-C Output
HDCP Support	Yes
Embedded Audio	HDMI: 8-Channel SDI: 16-Channel
Audio	1 x 1/8″ / 3.5 mm Headphone Output
Built in Speaker	1
Power	1 x Barrel (12 VDC) Input
Mounting	6 x 1/4″-20 Female
Video Format	SDI (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94HDMI (10-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94
Recording Media	1 x SDXC (UHS-I)
Metadata Tagging	Yes
Encoding Formats	Up to 1920 x 1080 ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD 145, 145 MXF, 220x, 220x MXF, 45, 45 MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks	16
DC Input Power	12 VDC
Built-in Battery	None
Battery Type	2 x L-Series
Power Consumption	36 W
Operating Temperature	0 to 40°C
Dimensions	14.81 x 8.99 x 3.66 cm

INCLUDED BY DEFAULT

• Blackmagic Design Video Assist 3G-SDI/HDMI 5″ Recorder/Monitor
• Blackmagic Design Power Supply for Video Assist
