Blackmagic Design Video Assist 3G-SDI/HDMI 7″ Recorder/Monitor

Blackmagic Design Video Assist 3G-SDI/HDMI 7″ Recorder/Monitor

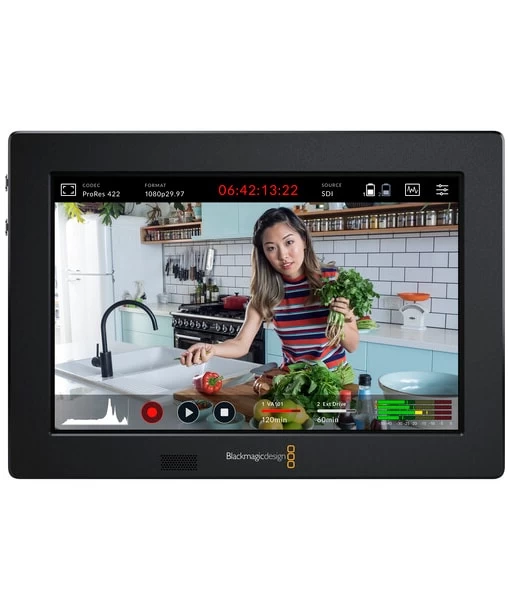

The Blackmagic Design Video Assist 3G-SDI/HDMI 7″ Recording Monitor adds professional monitoring and high-quality recording to your camera. It features a bright 7″, 1920 x 1200 display with 300 cd/m² brightness to help you frame and focus your shots, and it provides 3G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record video resolutions up to 1080p60 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio. This monitor also features two balanced 3-pin mini-XLR inputs with 48V phantom power support for crisp audio recording. Firmware update 3.3.1 adds a video output via the USB Type-C port that can be used to convert your connected camera for webcam use. It also adds XLR audio mapping to different channels, XLR external timecode, and select channel selection for audio monitoring.

The Video Assist 3G 7″ records to SDXC/SDHC memory cards via dual UHS-I SD card slots. Use the USB Type-C port to record for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD codecs.

This monitor’s touchscreen interface enables you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope, and many more scopes and exposure tools. There is also a tally light on top of the monitor to indicate it is operating and recording. Choose from 11 languages for easier use of on-screen text displays and menu options. Power the monitor using the included 12V power adapter or using separately available Sony L-Series type batteries on the dual battery slots.

KEY FEATURES

• 1920 x 1200 7″ Touchscreen LCD
• HDMI & 3G-SDI Video Inputs/Outputs
• Records up to 1080p60 Video
• USB Type-C Webcam Video Output

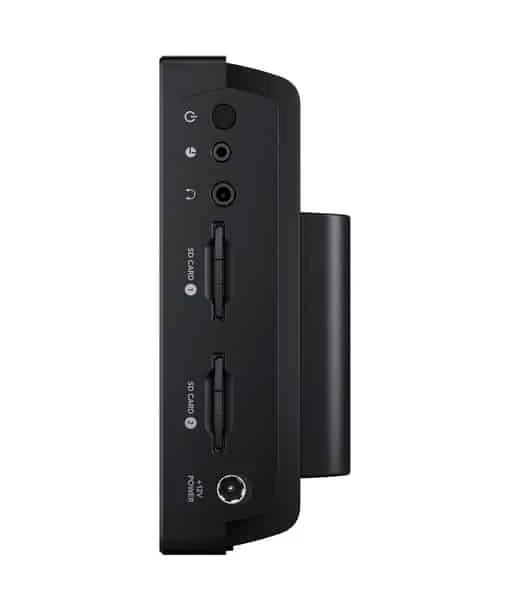

• Stores to 2 x SDXC/SDHC Memory Cards
• 2.5mm LANC Port for Record Start & Stop
• Waveform, Vectorscope & Histogram
• Focus Peaking, False Color & Zebra
• 11 x Display Language Options

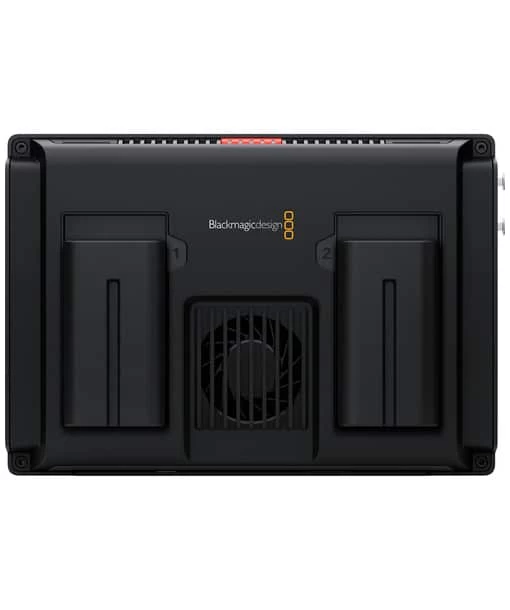

• Dual Sony L-Series Type Battery Slots
• 12V Power Adapter Included

SPECIFICATIONS BLACKMAGIC VIDEO ASSIST 7″

Model	HYPERD/AVIDA03/7
Panel Type	TFT LCD
Display Size	7″ / 17.8 cm
Resolution	1920×1200
Aspect Ratio	16:9
Touchscreen	Yes
Max Brightness	310 cd/m2
Color Gamut	100% Rec. 709
Pixels per Inch (ppi)	323 ppi
Image Controls	Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

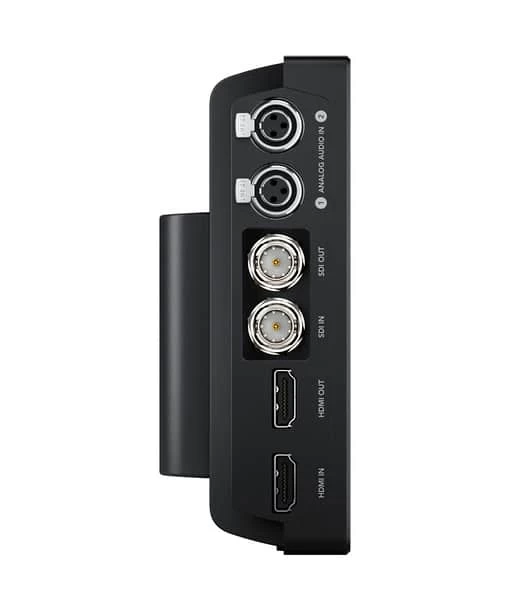

Video I/O	1 x HDMI Type A Input 1 x BNC (3G-SDI/HD-SDI/SD-SDI) Input 1 x HDMI Type A Output 1 x BNC (3G-SDI/HD-SDI/SD-SDI) Output
HDCP Support	Yes
Embedded Audio	HDMI: 8-Channel SDI: 16-Channel
Audio	2 x Mini-XLR Input 1 x 1/8″ / 3.5 mm Headphone Output
Built in Speaker	1
Power	1 x Barrel (12 VDC) Input
Other I/O	1 x USB Type-C 1 x LANC (2.5 mm) Input
Video Format	SDI (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94HDMI (10-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94
Mounting	6 x 1/4″-20 Female
Real-Time LUT Monitoring	SDR
Encoding Formats	Up to 1920 x 1080 ProRes 422 HQ, 422, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks	16
DC Input Power Phantom Power	12 VDC +48V
Built-in Battery	None
Battery Type	2 x L-Series
Power Consumption	36 W
Operating Temperature	0 to 40°C
Dimensions	19.3 x 13.06 x 3.68 cm, 825g

INCLUDED BY DEFAULT

• Blackmagic Design Video Assist 3G-SDI/HDMI 7″ Recorder/Monitor
• Blackmagic Design Power Supply for Video Assist
