Blackmagic Design Video Assist 5″ 12G-SDI/HDMI HDR Recording Monitor

Blackmagic Design Video Assist 5″ 12G-SDI/HDMI HDR Recording Monitor

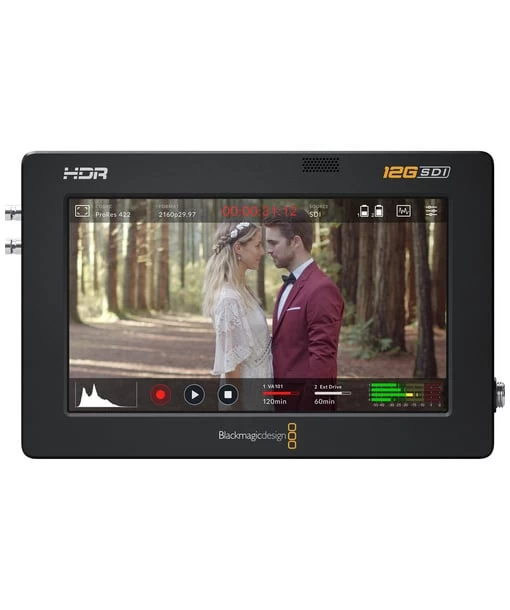

The Blackmagic Design Video Assist 5″ 12G-SDI/HDMI HDR Recording Monitor adds professional monitoring and high-quality recording to virtually any camera. It features a bright 5″, 1920 x 1080 display with 2500 cd/m² brightness to help you frame and focus your shots, and provides 12G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record HDR video up to DCI 4K, UHD 4K, 2K, or HD 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio.

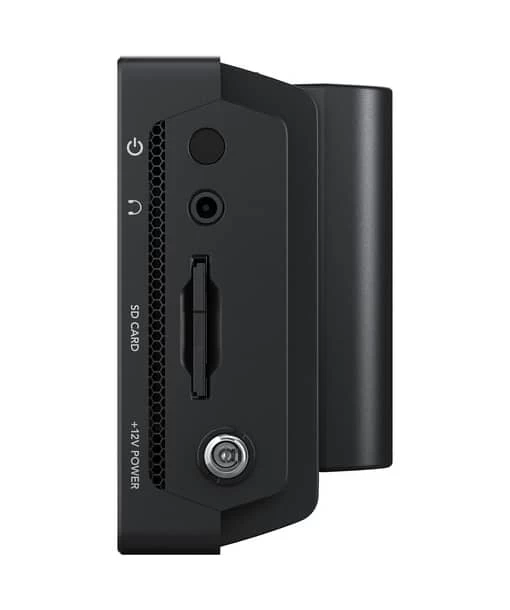

The Video Assist records using a single high-speed UHS-II SD slot to SDHC/XC memory cards. You can also use the USB 3.1 Gen 1 Type-C port to record to an external drive, as well as use it for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD and DNxHR codecs.

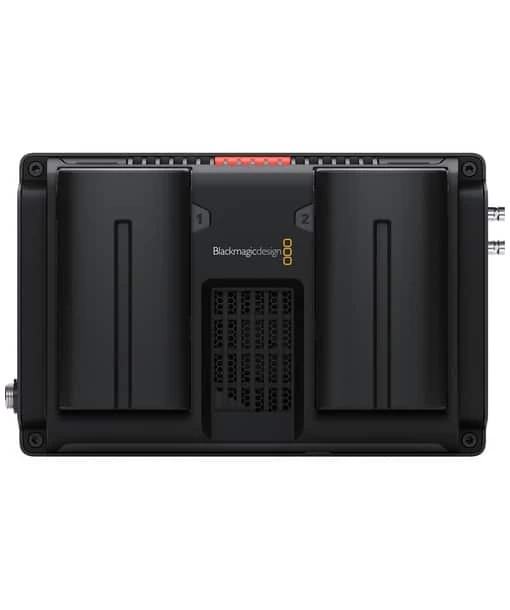

The monitor’s touchscreen interface allows you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope, and many more scopes and exposure tools. There is also a tally light on top of the monitor to indicate that it is operating and recording. To power the monitor, a 12V power adapter is included. It also has dual battery slots on the rear to power the monitor using separately available Sony L-series type batteries.

When you update the firmware to version 3.3, Blackmagic has introduced USB webcam output, so the monitor can send a full 1080p signal to your computer over USB in a streaming-friendly format. Also added is audio monitoring channel selection.

KEY FEATURES

• 5″ 1920 x 1080 Touchscreen LCD
• Record up to DCI or UHD 4K HDR Video
• HDMI and 12G-SDI Video Inputs & Outputs
• 10-Bit, 4:2:2 ProRes & DNxHD Encoding
• 3D LUTs, 2500 cd/m² Brightness
• Stores to Single SDHC/XC Memory Slot
• Histogram, Waveform, Vectorscope
• Dual L-Series Type Battery Slots
• 12V Power Adapter Included

SPECIFICATIONS BLACKMAGIC VIDEO ASSIS 5″ 12G HDR

Model	HYPERD/AVIDA12/5HDR
Panel Type	TFT LCD
Display Size	5″ / 12.7 cm
Resolution	1920×1080
Aspect Ratio	16:9
Touchscreen	Yes
Max Brightness	2500 cd/m2
HDR compatibility	Advanced HDR
Pixels per Inch (ppi)	440 ppi
Image Controls	Histogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform

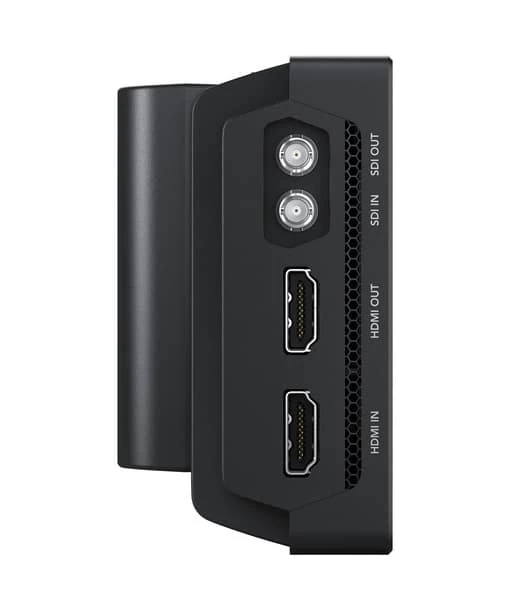

Video I/O	1 x HDMI Type A (HDMI 2.0a) Input 1 x Micro BNC (12G-SDI) Input 1 x HDMI Type A (HDMI 2.0a) Output 1 x Micro BNC (12G-SDI) Output
HDCP Support	No
Embedded Audio	HDMI: 8-Channel SDI: 16-Channel
Audio	1 x 1/8″ / 3.5 mm Headphone Output
Built in Speaker	1
Power	1 x Barrel (12 VDC) Input
Other I/O	1 x USB Type-C
Video Format	SDI (10-Bit 4:2:2 RGB) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 25/24/23.98 DCI 2K PsF: 25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94HDMI (10-Bit) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94
Gamma Curve	HDR-HLG, Rec2020, Rec709
Timecode	Yes
Encoding Formats	Up to 4096 x 2160 ProRes 422, HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD 145, 145 MXF, 220x, 220x MXF, 45, 45 MXF, HQX, LB, LB MXF, SQ, SQ MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks	16
DC Input Power	12 VDC
Built-in Battery	None
Battery Type	2 x L-Series
Power Consumption	36 W
Operating Temperature	0 to 40°C
Dimensions	14.81 x 8.99 x 3.66 cm

INCLUDED BY DEFAULT

• Blackmagic Design Video Assist 5″ 12G-SDI/HDMI HDR Recording Monitor
• 12 VDC, 36W Power Adapter
