Blackmagic HyperDeck Studio HD Plus

Blackmagic HyperDeck Studio HD Plus

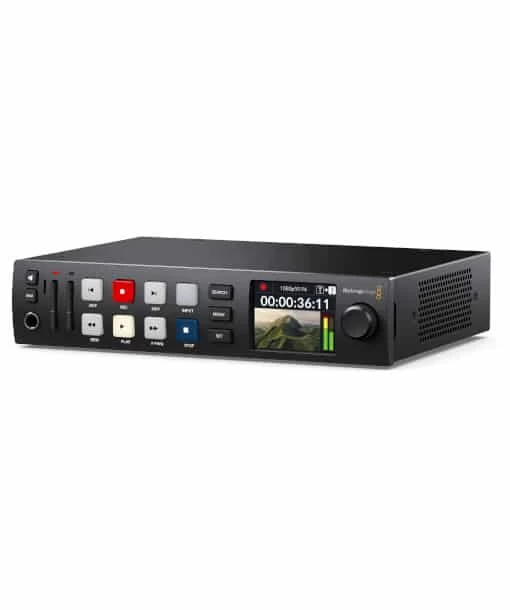

The Blackmagic HyperDeck Studio HD Plus includes all the features of the Mini model, but is larger so it has more space for extra controls and extra connections. This model adds 6G-SDI so it can record and playback ProRes up to Ultra HD 30fps, and it includes an SDI loop out and HDR support. Plus the two 6G-SDI outputs allow fill and key playback up to 1080p60. There is also an HDMI input and a dedicated 3G-SDI monitoring output with overlays. Any button pushed on the front panel is sent to a dedicated RS-422 remote output and the DC power is now a broadcast style XLR connector. The front panel is also upgraded with better transport control buttons, a headphone socket and built in speaker.

KEY FEATURES

• Records up to 4K DCI at 30 fps
• Plays Back up to 3840 x 2160 at 30 fps
• 1 x 6G-SDI Input, 1 x HDMI 2.0 Input
• 1 x HDMI 2.0 and 2 x 6G-SDI Outputs
• Records ProRes, DNxHD, and H.264
• Records in H.264 SDI 4:2:2 10-Bit
• Front-Panel Buttons, Jog Wheel, LCD
• Timecode and Reference Input/Output
• 1/2 Rack-Mountable Form Factor
• USB Type-C, 1G Ethernet, RS-422

SPECIFICATIONS Blackmagic HyperDeck Studio HD Plus

Connectivity

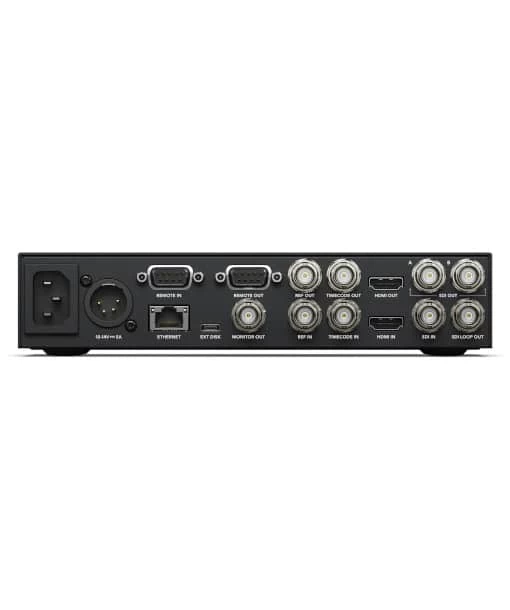

Video Input	1 x BNC, 6G-SDI 1 x HDMI 2.0 Type A
Video Output	1 x BNC, 6G-SDI Loop-Out 2 x BNC, 6G-SDI 1 x HDMI Type A, 2.0 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI) 1 x BNC, 3G-SDI (Monitor Out)
Timecode	In: 1 x BNC Out: 1 x BNC
Reference	Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC
Audio Input	None (Embedded Audio Only, 16 Channels)
Audio Output	Headphone: 1 x 1/4″ Phone
Device Control	2 x RS-422 Deck Control Port on DB9 Female
Ethernet	1 x RJ45 for Remote Operation
Media Interface	2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+

Standards

Supported Resolutions	4K 4096 x 2160p: 30/29.97/25/24/23.98 3840 x 2160p: 30/29.97/25/24/23.982K 2048 x 1080p: 0/29.97/25/24/23.98HD 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 SD NTSC PAL
SDI Compliance	SMPTE 259M//292M/296M/372M/424M/425M Level A and B SMPTE 2084 SMPTE 2108‑1
SDI Metadata Support	HD RP188 and Closed Captioning CEA‑708 HDR Metadata Supported on SDI
Video Sampling	4:2:2 YUV
Color Depth	10-Bit
Color Space	Rec. 601 Rec. 709 Rec. 2020 33-Point 3D LUTS Can Be Applied to SDI Monitor Out
HDR Support	Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support	Autodetection of SD, HD, and 6G-SDI
Audio Sampling	Television Standard 48 kHz, 24-Bit
Supported Codecs	ProRes HQ QuickTime 422 QuickTime LT QuickTime Proxy QuickTime for Formats up to 1080p60DNxHD 220x 220x MXF 145 145 MXF 45 45 MXF for 720p and 1080p HD Formats up to 60 fpsH.264 SDI 4:2:2 10-Bit High 4:2:0 8-Bit Medium 4:2:0 8-Bit Low 4:2:0 8-Bit for Progressive Formats up to 1080p60

System Requirements

Operating System

macOS: 10.15 (Catalina), 11.5 (Big Sur) or Later Windows: 10 64-Bit

General

Rack Height	1 RU
Power Supply	AC 100 to 240 VAC, 50/60 HzDC 12 VDC; 1 x 4-Pin XLRConsumption 100 W Max
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Relative Humidity	0 to 90% Non-Condensing
Dimensions	8.27 x 6.96 x 1.74″ / 21.01 x 17.68 x 4.42 cm
Weight	1.8 lb / 0.82 kg



DIMENSIONS



INCLUDED BY DEFAULT

• Blackmagic HyperDeck Studio HD Plus
