Blackmagic PYXIS Monitor Kit
High-brightness 5” HDR monitor with full camera control for Blackmagic PYXIS cameras.
The Blackmagic PYXIS Monitor Kit is a 5” touchscreen monitor designed specifically for the Blackmagic PYXIS cinema camera series.
With full camera control functionality, this monitor acts as an extended viewfinder while providing essential settings adjustments on a bright 1500-nit HDR display.
Multiple mounting points allow flexible rigging options, whether mounted directly onto the camera or used as an external director’s monitor.
Key Features
- 5” HDR touchscreen display (1920 x 1080 resolution)
- 1500-nit brightness for outdoor usability HDR support
- Seamless camera control via touchscreen UI
- Lightweight and rugged design for professional use
- Multiple 1/4″-20 & M4 mounting points for flexible rigging
- Three Assignable Function Buttons
- Clip-On Sunshade Included
- Swivel & Fixed Mounts Included
- USB-C Viewfinder Cable Included
Specifications
| Model | CINEURSABB/AMKIT |
| Screen Size | 5.0″ / 12.7 cm |
| Resolution | 1920 x 1080 |
| Brightness | 1500 nits |
| Mounting | 1x ARRI Anti-Twist 1/4″-20 (Bottom) 1x ARRI Anti-Twist 1/4″-20 (Right) 2x M4 Female (Bottom) 2x M4 Female (Right) |
| Touchscreen | Yes |
| Connectivity | 1x USB-C Camera Input |
| Image Controls | False Color, Focus Assist, Screen Markers, Zebra |

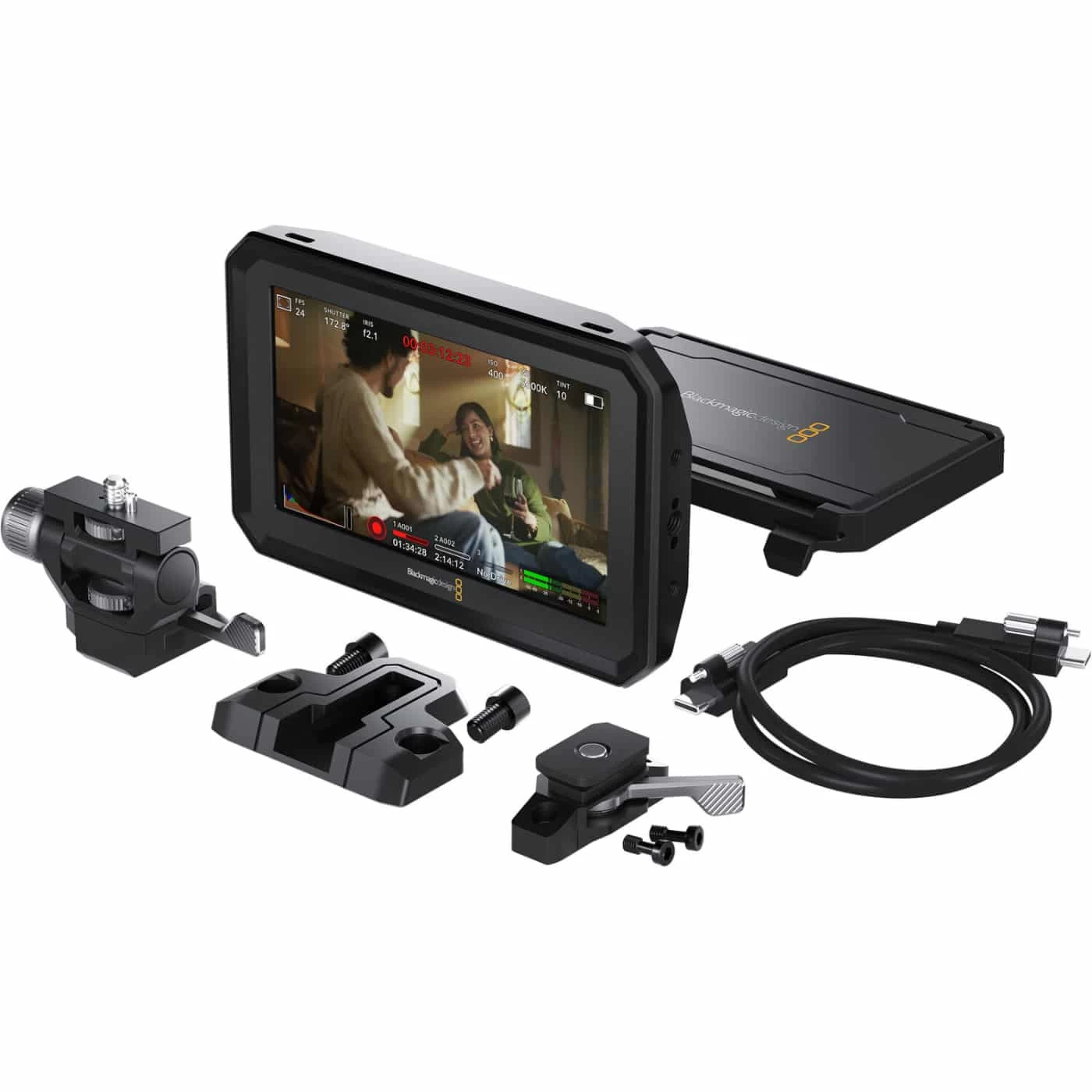

Included in the Box
- Blackmagic PYXIS Monitor Kit
- Detachable Sun Hood
- HDMI & USB-C Cables
- Mounting Bracket
- LP-E6 Battery Adapter
- Quick Start Guide
