CKMOVA Vocal M V3 Professional UHF Dual-Channel Wireless Microphone XLR Transmitter & Receiver Set

CKMOVA Vocal M V3 Professional UHF Dual-Channel Wireless Microphone XLR Transmitter & Receiver Set

The CKMOVA Vocal M V3 is a reliable broadcast quality dual channel wireless UHF microphone system with independent audio recorder and built-in rechargeable battery. The Professional wireless solution for ENG, filmmakers, EEP, vloggers, Live Podcast, mobile journalist and content creators.

The Vocal M V3 is a compact, lightweight and durable microphone system providing mature and stable UHF signal transmission delivering high-quality audio. Powerful features includes plugon XLR transmitter with headphone, monitor on both transmitter and receiver, local memory recording and EQ settings on transmitter; mono & stereo switchable on receiver. The build-in OLED screen displays reception quality, battery status, audio level and more.



Available Microphone sets in Vocal M Series:

Vocal M V1 (TX+RX): One 3.5mm Transmitter + Receiver

Vocal M V2 (TX+TX+RX): Two 3.5mm Transmitters + Receiver

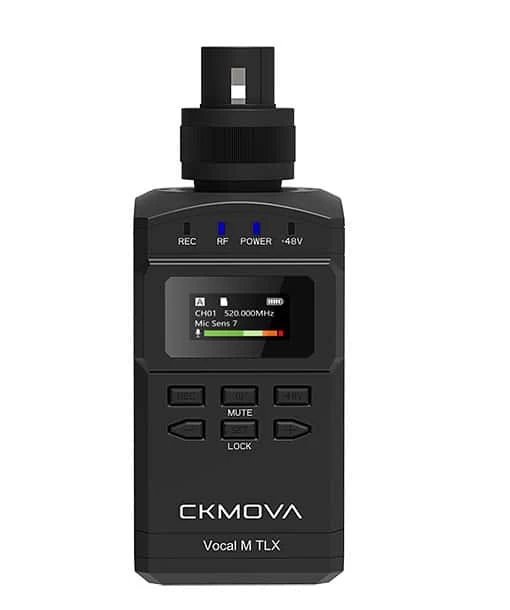

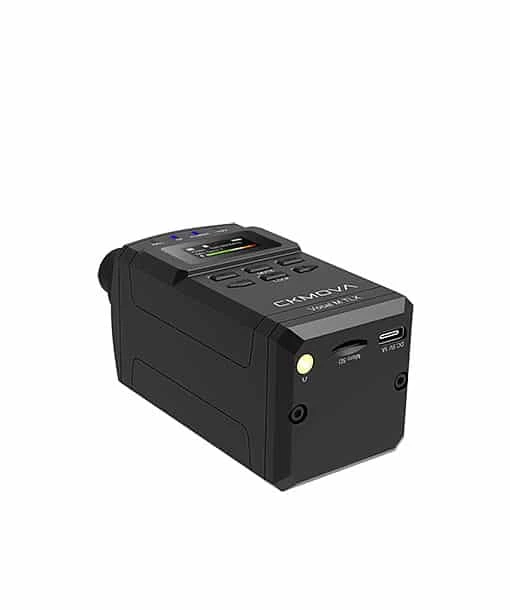

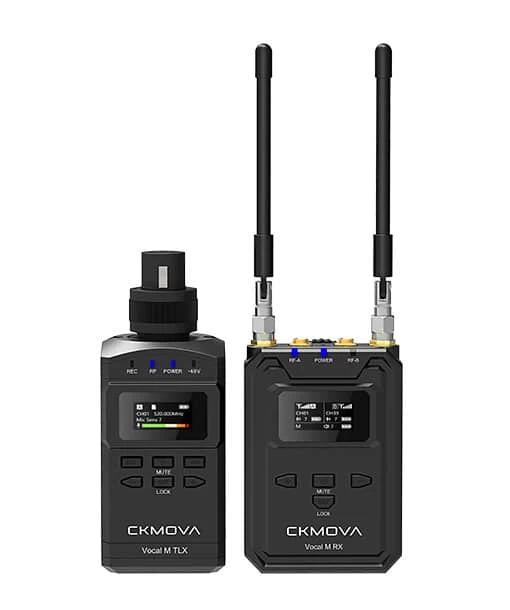

Vocal M V3(TLX+RX): One Plug-on XLR Transmitter + Receiver

Vocal M V4(TLX+TX+RX): One 3.5mm Transmitter + One Plug-on, XLR Transmitter + Receiver

KEY FEATURES

• Professional Dual-Channel Wireless Microphone Set

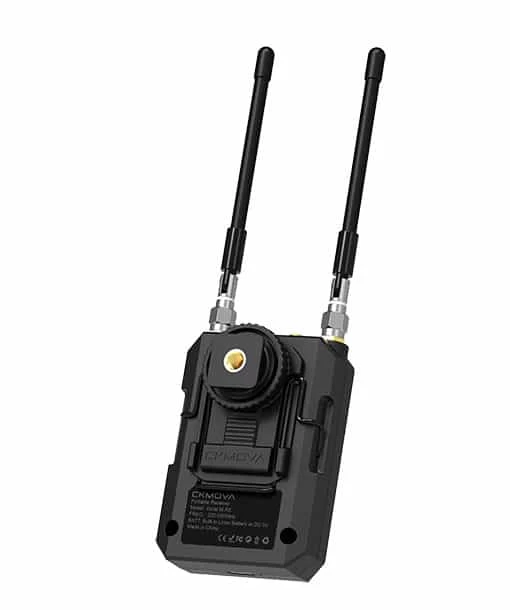

• Dual-channel receiver

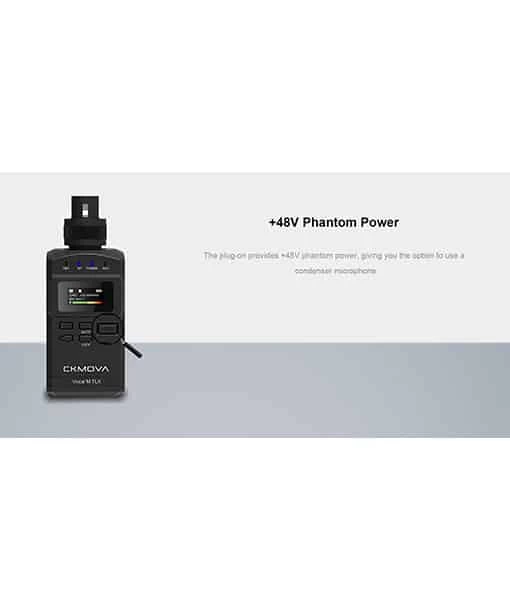

• Plug-on XLR Transmitter with Phantom Power

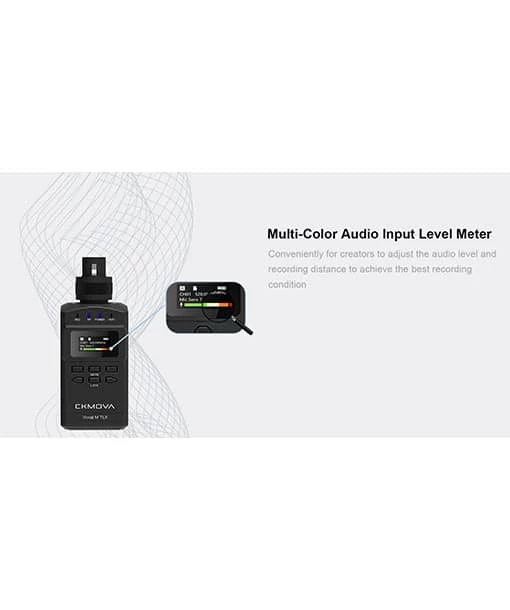

• OLED display on both transmitter and receiver
• Detachable and 360°switchable antenna
• Operating Range 150M (Line of sight)

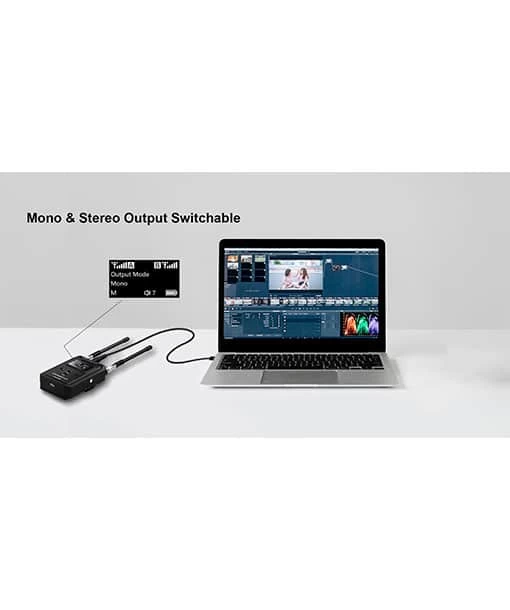

• Mono & Stereo output switchable

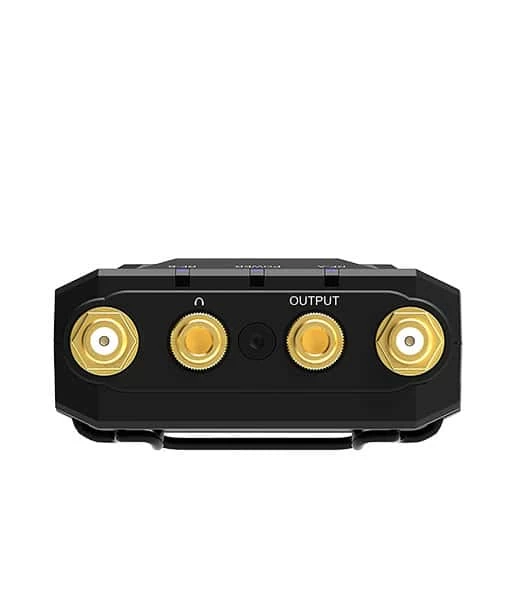

• Locking 3.5mm TRS real-time headphone monitor on receiver

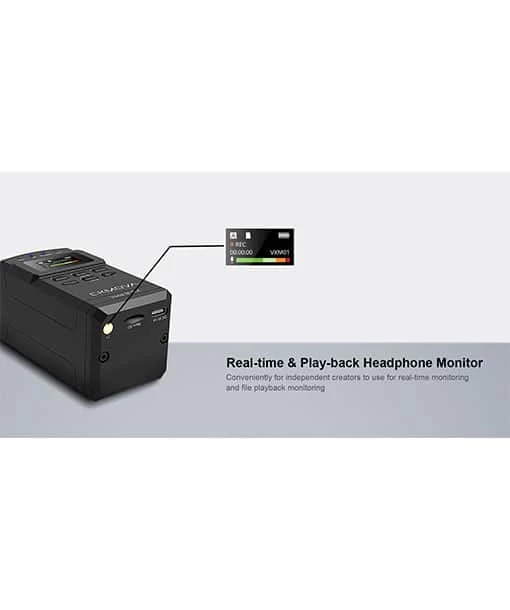

• Locking 3.5mm TRS real-time & play-back headphone monitor on transmitter
• Local 3.5mm TRS Mic input jack on receiver
• Support up to 32GB microSD card for memory recording

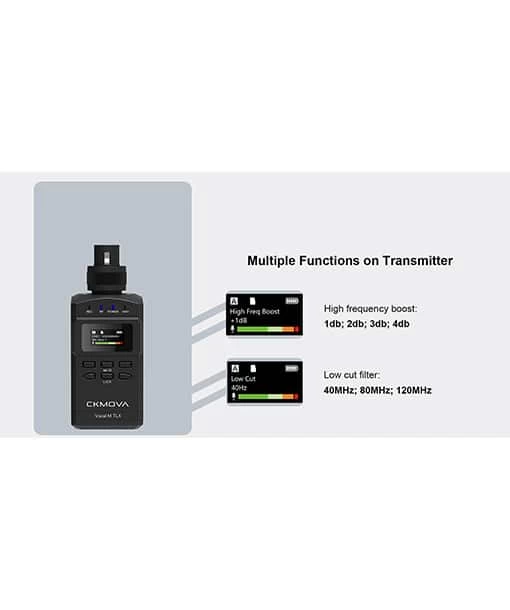

• Low cut filter (40Mhz/80Mhz/120Mhz)
• High frequency boost (1dB/2dB/3dB/4dB)
• Mute & keypad lock function on both transmitter & receiver
• Both receiver and transmitter with automatic protection shutdown
• Built-in rechargeable battery with 12 hours life
• Durable aluminum alloy construction

SPECIFICATIONS CKMOVA VOCAL M SERIES

Specs
Model	CKMOVA Vocal M V3
Channel Group	A and B
Frequency Range	IN: 520 – 596 MHz TH: 694.4 – 757.8 MHz IL: 794.125 – 805.875 MHz JP: 806.125 – 809.75 MHz KR: 925.125 – 937.5 MHz
Antenna	Detachable Antenna
RF Output Power	50mW
Gain Range	30dB
Frequency Response	20Hz to 20kHz
Audio I/O	Locking 3.5mm TRS Mic & Line Input (Vocal M TX) Locking 3-pin Female XLR input (Vocal M TLX) Locking 3.5mm TRS Audio Output
Signal Processing	Low Cut Filter – (40/80/120 MHz) High Frequency Boost – (1 to 4 dB)
Sensitivity	-41±1dB (0dB=1V/Pa,at 1KHz)
Polar Pattern	Omnidirectional
Latency	＜6ms
THD	＜0.5%
Signal-to-Noise Ratio	＞80dB
Recording Format	WAV
Recording Media	MicroSD(Up to 32GB)
Power Requirements	Built-in Battery or Type-C DC 5V
Built-in Battery Capacity	1500mAh
Battery Life	12Hours
Battery Charging Time	2Hours
Housing	Metal
Dimensions	56*80*22mm (Vocal M TX) 45.5*112*44mm (Vocal M TLX) 56*80*22mm (Vocal M RX)
Weight	125g (TX Incl.Battery ) 125g (TLX Incl.Battery ) 135g (RX Incl.Battery )
Operating Temperature	0℃ ~ 50℃
Storage Temperature	–20℃ ~ 60℃

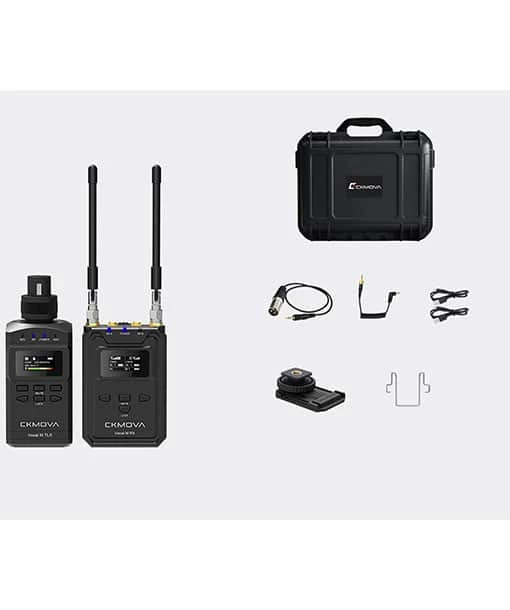

INCLUDED BY DEFAULT

• Plug-on XLR Transmitter *1
• Portable receiver *1
• Locking 3.5mm TRS to 3.5mm TRS audio cable *1
• Locking 3.5mm TRS to 3-pin XLR audio cable *1
• Type-C charging cable *2

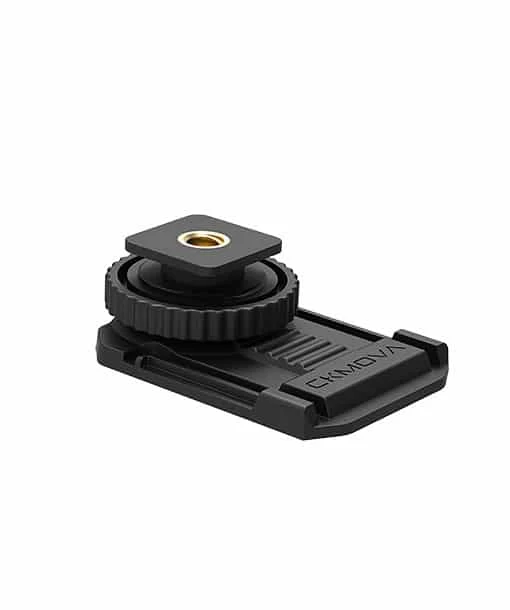

• Shoe mount adapter *1
• Belt clips *1
• Antennas *2
• Hard suitcase *1
• User manual *1
