CKMOVA Wicom E S5 Full-Duplex Wireless Intercom System

CKMOVA Wicom E S5 Full-Duplex Wireless Intercom System

The CKMOVA Wicom E system is a full-duplex wireless intercom system featuring Environmental Noise Cancellation (ENC) suitable for loud environments. The system includes single-ear headset version and dual-ear headset version for different condition choice. The system features A & B group isolate settings to separately communicate each group remote headsets, and a wired connection two master headsets enables communication up to 16 remote headsets. The system provides reliable transmission to all the wireless headsets at a line-of-sight range of up to 350m—making it well suited for a variety of applications, including public and sporting events, film and video production,TV & concerts and live events.

KEY FEATURES

• One master headset & four remote headsets
• Working range of up to 400m
• ENC technology that delivers clear sound captured from loud environments
• PPT Function & Mute switchable function
• A & B button to switch to A & B Isolate Setting
• One Click Announce button
• 3.5mm ouput enables the headset join cloud meeting anytime
• 3.5mm output to master headset allows you linking up to 16 remote headsets
• With 10 hours battery life rechargeable batteries & charger

SPECIFICATIONS CKMOVA Wicom E S5

Frequency Band	Standard Version: 1880-1900MHz American Version: 1920-1930MHz Brazilian Version: 1910-1920MHz Japanese Version: 1893-1906MHz Taiwanese Version: 1880-1895MHz
Duplex Mode	Full-Duplex
Modulation	GFSK
Microphone Type	Condenser Microphone
Operation Range	1148ft(350m)
Frequency Response	300Hz-5kHz
Distortion	<1%
SNR	65dB and more
RF Output Power	<24dBm
Power Consumption	<0.5W
Battery Capacity	1000mAh
Charging Time	2 Hours
Battery Life	Remote headset: 10 hours Master(work with 4 remote): 5 hours Master(work with 8 remote): 4 hours
Dimensions	195*145*28mm(Master&Remote)
Weight	360g(12.7oz)
Operating Temperature	-10℃~50℃
Storage Temperature	-20℃~55℃

INCLUDED BY DEFAULT

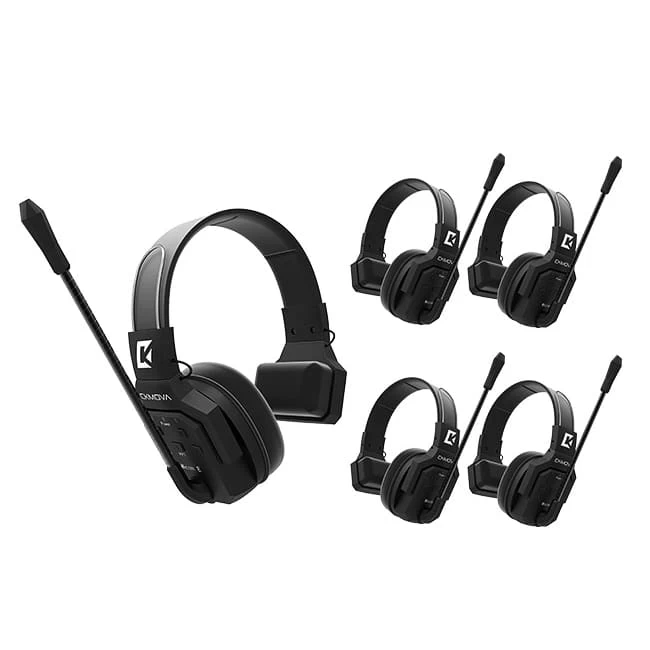

• Wicom E SM headset x 1
• Wicom E SR headset x 4
• AC-WB1 battery x 5
• AC-BC9 battery charger x 1
• AC-HC3 carry suitcase x 1
• User Manaual x 1
