Oorspronkelijke prijs was: 376,00 €.99,99 €Huidige prijs is: 99,99 €.
The VisionAV-HD has three independent video capture inputs – two supporting High Definition capture and a third supporting Standard Definition composite video. This capture card also adds multiple channels of audio capture, which can be synchronised in software using timestamping with all video capture channels.
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

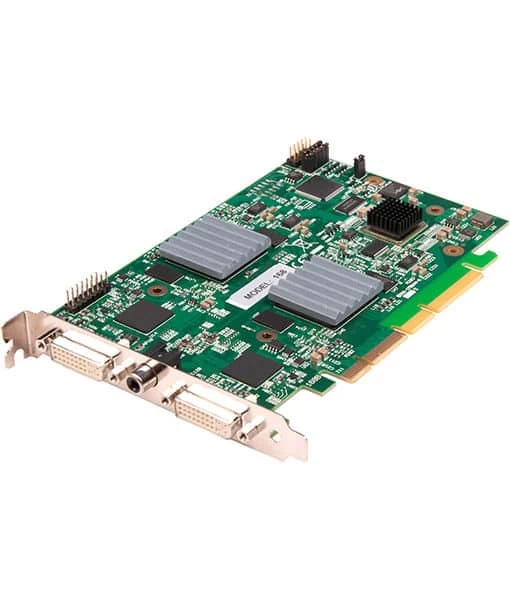

Datapath Vision AV-HD Capture Card
| Board format | PCI Express x4 half size plug-in card, 110mm x 170mm |
| Connectors (main board) | 2 x DVI-I, 1 x RCA (female) |
| HDMI capture | Supports HDMI 1.3 to 225 MHz (inlcuding deep colour modes) For HDCP support, contact the Sales department for more information
HDMI audio can be selected as source for audio streaming Incorporates TMDS equaliser to support up to 20m cables |
| DVI capture | Supports DVI 1.0 RGB 24bit capture to 165MHz
Incorporates TMDS equaliser to support up to 20m cables |
| VGA/ YPbPr Capture | Triple ADCs sampling up to 170Msps. Full 4:4:4 sampling, 8bits per colour
5-wire, 4-wire or sync-on-green signal format |
| Composite video capture | CCIR601 sampling, PAL, NTSC, SECAM formats automatically detected |
| Audio capture | Stereo Line-In/ Stereo balanced inputs with programmable gain (+/-12dB)
16bit sampling at 44.1/ 48/ 96kHz Analogue stereo line-out for direct passthrough of selected input at up to 64kHz sampling, sourced from Analog input or HDMI channel |
| Video capture memory | 256MB high bandwidth frame buffer supports triple buffering of HD and SD video
Local storage of complex scatter-gather tables for DMA engine (elimintates read overhead) |
| Video processing | Polyphase FIR scaling engine (7×5) for hardware downscaling and upscaling
Colour space conversion allows captured data to be transferred in any format:
|
| DMA engine | Direct DMA to physical or virtual memory buffers with full scatter-gather support
DMA bandwidth: up to 800MB/s 16 independent DMA streams: Any mix of HD and SD sources, colour space, cropping and scaling parameters |
| Operating system support | Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008, Windows Server 2012, Windows 7, Windows 8 and Linux support (NOTE: Check Linux specific features with Sales) |
| Power requirements |
Max current at 12V – 1A Max current at 3.3V – 1A Thermal dissipation – 15.5 W |
| Operating temperature | 0 to 35 °C (32 to 96°F) |
| Storage temperature | -20 to 70 °C (-4 to 158 °F) |
| Relative humidity | 5% to 90% non-condensing |
| Warranty | 3 years |
Downloads
datasheet
VisionAV_HD_Datasheet
VisionAV_HD_User_Manual
Related Products….
| Brand | Datapath |
|---|---|
| MPN | VisionAV-HD |
