Name: Personaliseer Je Stijl met Online Exclusieve Datapath Vision Dual SDI Capture Card voor Elk Evenement Almere Nederland.
SKU: DA-VISIONSDI2
Price: 97.99 EUR
Availability: InStock

Aanbieding!

Oorspronkelijke prijs was: 321,00 €.Huidige prijs is: 97,99 €.

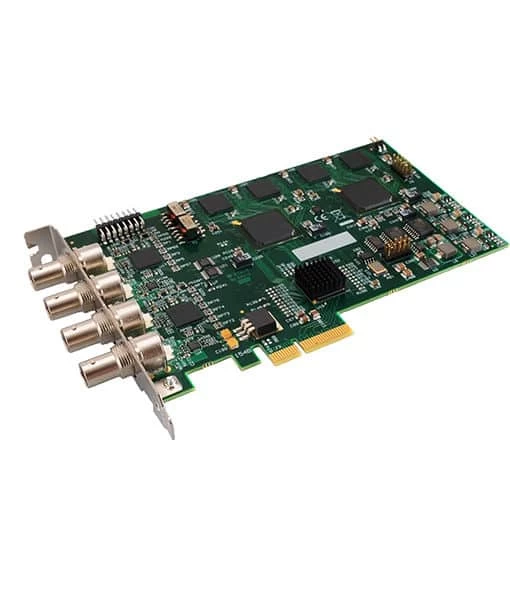

The VisionSDI2 is a dual channel PCI Express HD-SDI video capture card. The capture card supports SD-SDI, HD-SDI and 3G-SDI (including 2k Digital Film Resolution modes).

Artikelnummer: DA-VISIONSDI2 Categorieën: Capture cards, SDI, Video Capture and Playback

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

Datapath Vision Dual SDI

Board format	PCI Express x4, plug-in card, 110mm x 170mm PCI Express bus master with scatter gather DMA providing maximum data rate of 650 MB/s
Connectors	4 BNC connectors for SDI inputs and outputs
Maximum capture resolution	2x 2048×1556 at 24fps, 2x 1920×1080 at 60fps
Maximum SDI bit rate	3Gb/s
Frame buffer memory	64 MB per channel (total 128MB).
Input mode detection	Supports SMPTE – 352 Payload Identifiers
Pixel transfer formats	RGB: 5-5-5, 5-6-5 or 8-8-8 (24bit/ 32bit) pixels YUV: 4:2:2 MONO:8bit
Update rate	User defined. Captured frame rate will match the source providing max data rate (650MB/s) is not exceeded Multi-buffered to eliminate tearing artifacts
Video modes	SD-SDI (480i/576i) HD-SDI (up to 1080i) 3G-SDI (up to 1080p 2k Digital Cinema modes
Operating system support	Windows® XP, Windows® Vista, Windows® Server 2003, Windows® Server 2008, Windows® 7 and Windows® 8 (NOTE: Check Linux specific features with Sales)
Power requirements	Max current at +3.3V – 0.45A Max current at +12V – 0.85A Max power – 12W
Operating temperature	0 to 35 deg C/ 32 to 96 deg F
Storage temperature	-20 to 70 deg C/ -4 to 158 deg F
Relative Humidity	5% to 90% non-condensing
