The Datapath Vision RGB-E1S DVI Capture Card captures the Analog/ DVI data and triple buffers it into onboard storage. This data is then copied using DMA to the host system for display, storage or streaming.
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

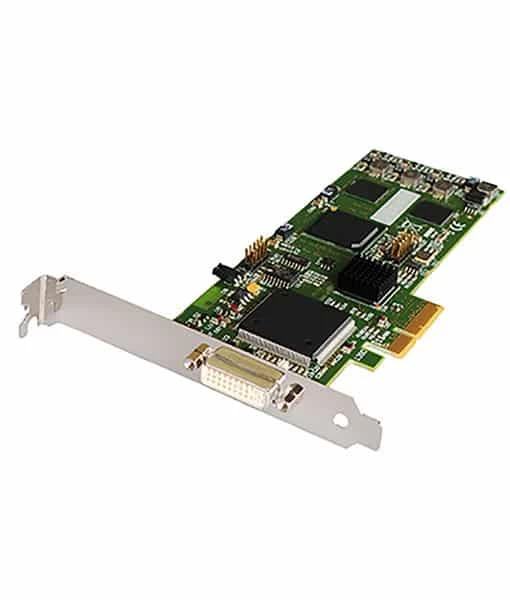

Datapath Vision RGB-E1S DVI Capture Card
| Board format | PCI Express x4 low profile card, 68.9mm x 167.6mm
PCI Express bus master with scatter gather DMA providing Maximum data rate of 650MB/s |
| Connectors | One DVI-I type connector |
| Maximum sample rate | 170 MHz analogue RGB or 165 MHz DVI
Analog modes up to 340MHz pixel clock can be captured using dual-pass sampling |
| Video sampling | RGB: 24bits per pixel/ 8-8-8 format |
| Video capture memory | 32MB, triple buffered |
| Analog RGB mode support | 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 2048 x 1536, custom modes |
| DVI single-link mode support | 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200, custom modes |
| HD modes | 1080p, 1080i, 720p, 576p, 576i, 480p and 480i using a Component-DVI connector (HDCP not supported) |
| Input mode detection | Automatic detection of input modes in hardware, enabling the tracking of mode changes in the source signal |
| Pixel transfer formats | RGB: 5-5-5, 5-6-5 or 8-8-8 (24bit/32bit) pixels
YUV: 4:2:2 MONO: 8bits |
| Update rate | User defined, captured frame rate will match the source. Providing max data rate (650MB/s) is not exceeded
Multi-buffered to eliminate tearing artifacts |
| Video format options | Analog RGB plus HSync and VSync (5 wire)
Analog RGB with Composite Sync (4 wire) Analog RGB with Sync on Green/ YPbPr (3 wire) DVI Single Link |
| Operating system support | Windows® XP, Windows® Vista, Windows® Server 2003, Windows® Server 2008, Windows® 7, Windows® 8 and Linux, Windows® Server 2012 (NOTE: Check Linux specific features with Sales) |
| Power requirements | Max current at +3.3V – 0.25A
Max current at +12V – 0.5A Max power – 6.8 Watts |
| Operating temperature | 0 to 35 deg C/ 32 to 96 deg F |
| Storage temperature | -20 to 70 deg C/ -4 to 158 deg F |
| Relative humidity | 5% to 90% non-condensing |
Downloads
Datasheet
VisionRGB_E1S_Datasheet
Related Products….
| Brand | Datapath |
|---|---|
| MPN | VisionRGB-E1S |
