Name: Krijg Ongeëvenaarde Duurzaamheid tegen de Laagste Prijzen met Beveiligingscamera Winkel's Datapath Vision RGB-E2S Dual DVI Capture Card uit Amsterdam Nederland.
SKU: DA-VISIONRGBE2S
Price: 98.99 EUR
Availability: InStock

Aanbieding!

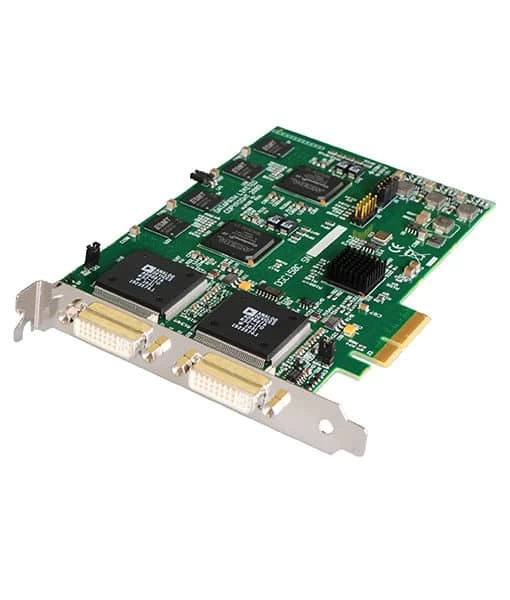

Datapath Vision RGB-E2S Dual DVI Capture Card

Oorspronkelijke prijs was: 382,00 €.Huidige prijs is: 98,99 €.

The VisionRGB-E2S, a stand alone PCI Express x4 plug in capture card, delivers extreme performance with 650MB/s transfer bus bandwidth providing a further improvement to the 480 MB/s of the VisionRGB-E2.

Artikelnummer: DA-VISIONRGBE2S Categorieën: Capture cards, DVI, Video Capture and Playback

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

Datapath Vision RGB-E2S Dual DVI Capture Card

Board format	PCI Express x4 half size card, 110mm x 170mm PCI Express bus master with scatter gather DMA
Connectors	Two DVI-I type connectors
Maximum sample rate	170 MHz analogue RGB or 165 MHz DVI. Analog modes up to 340MHz pixel clock can be captured using dual-pass sampling
Maximum data rate	VisionRGB-E2 480 MB/s VisionRGB-E2s 650 MB/s
Video sampling	RGB: 24 bits per pixel/8-8-8 format
Video capture memory	64 MB (updated in real time). Triple buffered
Analog RGB mode support	640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 2048 x 1536,Custom modes
DVI single-link mode support	640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920×1080, 1920 x 1200, and Custom modes
HD modes	1080p,1080i, 720p, 576p, 576i, 480p and 480i using a Component HD-DVI connector (HDCP not supported)
Input mode detection	Automatic detection of input modes in hardware enabling the tracking of mode changes in the source signal
Pixel transfer formats	RGB: 555, 565 or 888 pixels (24bit/32bit) pixels. YUV 4:2:2, UYVY, YUY2, YVYU
Update rate	User defined, captured frame rate will match the source providing max data rate (650MB/s is not exceeded) Triple buffered to eliminate tearing artifacts.
Video format options	Analog RGB plus HSync and VSync (5 wire) Analog RGB with Composite Sync (4 wire) Analog RGB with Sync on Green (3 wire) DVI Single Link
Operating system support	Windows® XP Professional, Windows® Server 2003, Windows Vista®, Windows® Server 2008, Windows® 7 (x86 and x64 Operating Systems), Windows® 8 and Linux (NOTE: Check Linux specific features with Sales)
Power requirements	Max current at +3.3V – 0.25A. Max current at +12V – 1.2A. Max power – 15 Watts.
Operating temperature	0 to 35 deg C.
Storage temperature	-20 to 70 deg C.
Relative humidity	5% to 90% non-condensing
Analog input range	Min 0.5Vpp Max 1.0Vpp
Input offset	+/- 2V
Hsync	15kHz – 110kHz
Vsync	No hardware limits, typically 25Hz – 200Hz for real signals
Separate sync polarity	Positive or Negative. (Separate H & V sync, Composite Sync)
Sync on green polarity	Negative
Inputs	75 Ohm terminated
