Name: Trendsettende Datapath VisionLC-HD Nu Beschikbaar op Beveiligingcamera.com uit Eindhoven Nederland.
SKU: DA-VISIONLCHD
Price: 99.99 EUR
Availability: InStock

Aanbieding!

Oorspronkelijke prijs was: 355,00 €.Huidige prijs is: 99,99 €.

Discreet video capture is now the mainstay of many small form factor appliances being uses in markets such as lecture capture, distance learning and medical environments. Datapath’s VisionLC-HD provides HDMI capture for use within such applications.

Artikelnummer: DA-VISIONLCHD Categorieën: Capture cards, HDMI, Video Capture and Playback

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

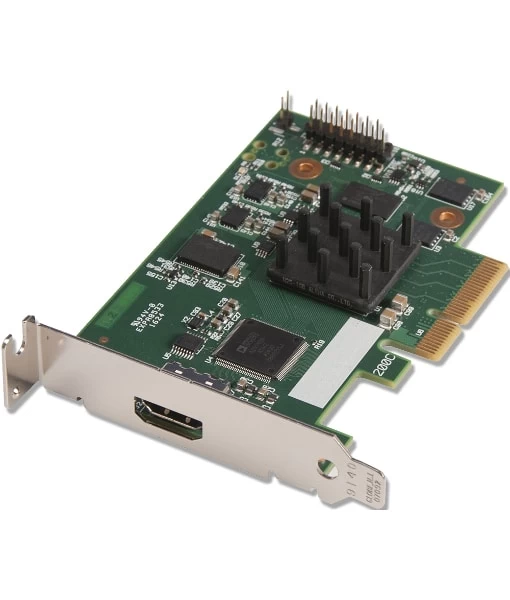

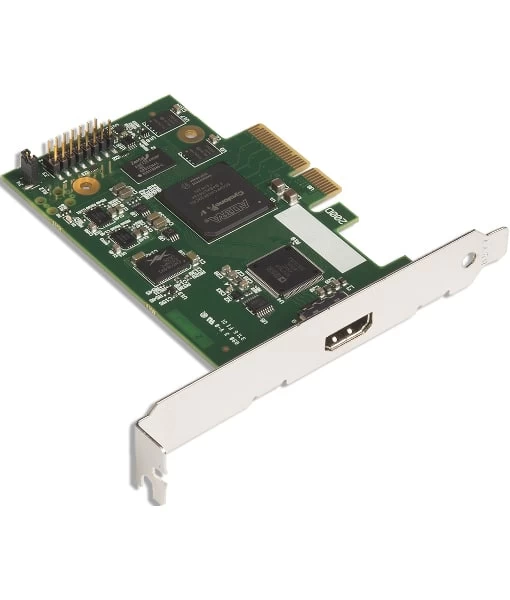

Datapath VisionLC-HD Capture Card

Board Format	PCIe Gen 1 x 4 plug-in card
Dimensions	103mm x 64mm (l x h)
Connector	HDMI
Pixel Rate	297 Mpixel/s
Maximum Capture Resolution	3840x2160p @ 30Hz
Transfer Rate	800MB maximum DMA transfer rate
Hardware Colour Space Conversion	30 / 24 / 16 bit RGB (4:4:4) 16 bit YUV (4:2:2) 12 bit YUV, NV12, YV12 (4:2:0)
Audio Support	Stereo pair PCM audio via each HDMI channel at 16 bits in depth, sampling options include 44.1/ 48/ 96 kHz
Low Latency	LiveStream:Capture Single frame time plus DMA transfer of final line
Operating Sysytem Support	Linux, Windows® XP, Windows Vista, Windows Server 2003, Windows Server 2008, Windows 7, Windows 8/8.1 and Windows 10
Power Requirements	Max current at 1A at 3.3V Max power ≈ 3.3W
Operating Temperature	0 to 35 deg C/ 32 to 96 deg F
Storage Temperature	-20 to 70 deg C (-4 to 158 deg F)
Relative Humidity	5% to 90% non-condensing
Warranty	3 years
