Desview R5 5.5″ Touch Screen 3D-LUT On-Camera Field Monitor

Desview R5 5.5″ Touchscreen On-Camera Field Monitor, 1920×1080 IPS with HDR/3D-Luts

Desview R5 is a 5.5” 4K HDMI touch screen on-camera field monitor with 1920*1080 resolution and 450nits brightness. It supports HDMI input and output up to 4K signal format. The R5 comes with professional monitoring features such as 3D LUTs, waveform, vectorscope, HDR.

Desview R5 On-Camera Field monitor innovates a new touch screen that allows users to give all instructions only by touching. Touching the screen twice for the main menu, pinch-to-zoom gesture for image zoom. No complicated button control is needed!

You can load the monitor with up to 28 groups LUT files for color calibration via the SD Input and the SD Card supplied (inbuilt Log files). Just a few simple touch operations, your footages would turn into professional-grade production with rich colors.

It supports HDMI input and output up to 4K signal format. It not only displays undistorted live signals but also sends them to another monitor device simultaneously. 4K HDMI ports guarantee high definition and fast signal transmission. You can monitor the audio in real-time using the 3.5mm headphone jack.

The HDR function in Desview R5 monitor contains HLG mode and PQ mode. They both provide a wider color gamut and a higher brightness range. The former has better compatibility with non-HDR devices while the latter performs better at displaying the brightness changes and light & dark details of the scenery.

Aiming to assist in exposure, focusing and framing, Desview R5 integrates many necessary monitor functions, like Waveform, Vector Scope, Histogram, Peaking Filter, Check Field and Safe Frame. Your filming will be improved dramatically with the help of these features.

Features

• Full Touch Screen
• Lut Import
• HDR
• 1 x HDMI 1.4
• Full-Waveform
• Pinch to Zoom
• Anamorphic mode
• Image flip
• Audio Meter
• Zebra
• Luminance Waveform
• Brightness Histogram
• RGB Histogram
• Vector Scope
• RGB Waveform
• False Color
• Single Color
• Full Waveform
• Peaking Filter
• Mark Ratio
• Color Temperature
• HDMI

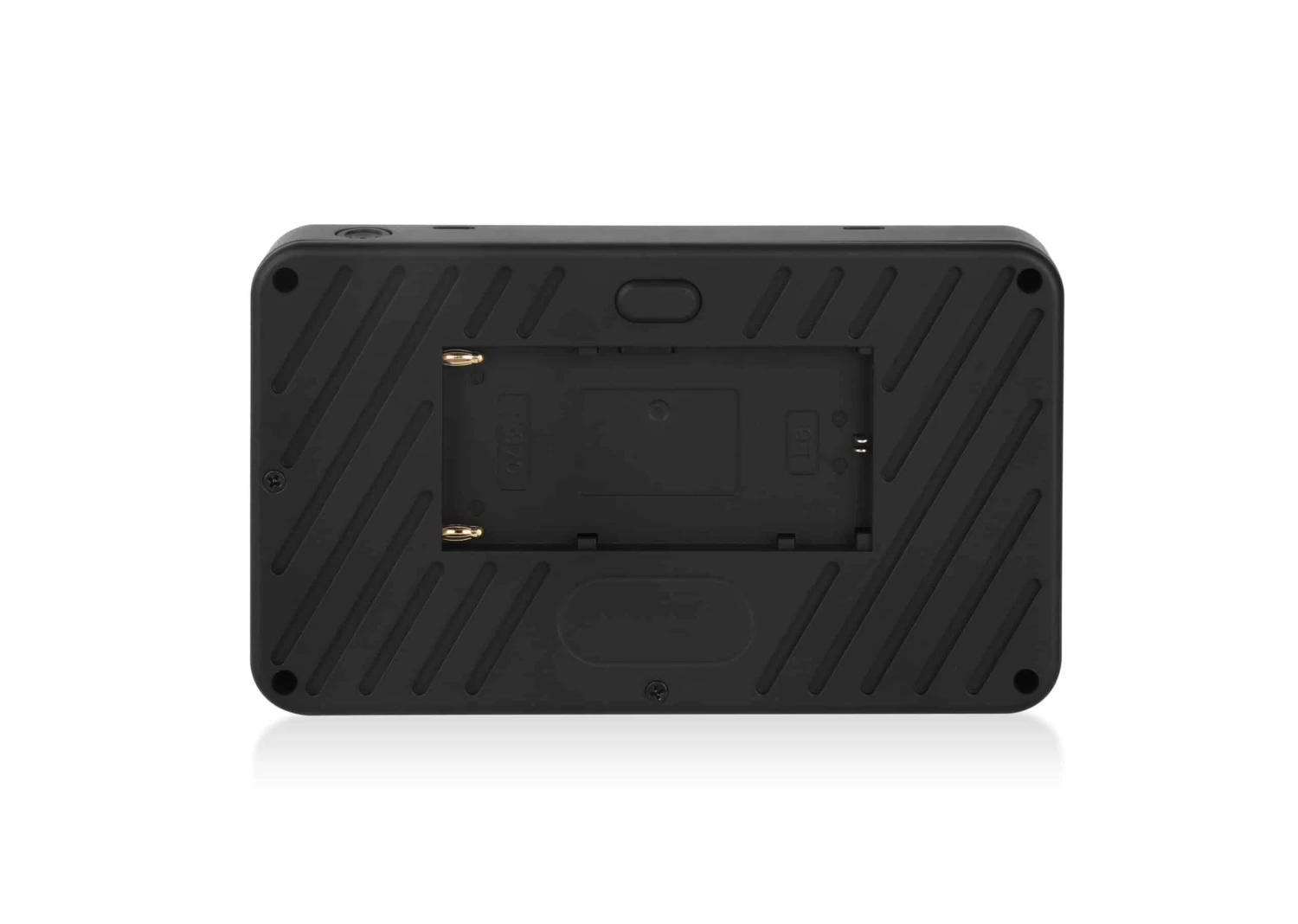

• Support for NP-F550, NP-F750, NP-F970 and E6 Batteries
• SD card slot

Desview R5 Specifications

Screen Size	5.5 inch
Resolution	1920*1080
Display Area	120.96(W) ×68.04(H)mm
Display Colors	16.7M
Dot Pitch	0.021×0.063 (H×V)
Brightness	450nits
Contrast Ratio	1000:1
Aspect Ratio	16:9
Backlight	LED
Visual Angle	178°(89°/89°L/R) 178°(89°/89°U/D)
Input	HDMI/SD
Output	HDMI
Audio	3.5mm Headphone Jack
	720x480i&[email protected], 60Hz     720x576i&720x576p@50Hz
	1280x720p@50, 59.94, 60Hz
HDMI Signal Format	1920x1080i@50, 59.94, 60Hz             1920x1080psf@24, 25, 29.97, 30Hz
	[email protected], 24, 25, 29.97,30,50,59.94,60Hz
	3840x2160p@24,25,30Hz                  4096x2160p@24Hz
Power Dissipation	≤9W
Input Voltage	DC7-24V
Operating Temperature	-20℃~55℃
Storage Temperature	-30℃~65℃
Unit Size	182x120x85mm
Unit weight	583g
Body weight	200g

Package Contents

1 x Desview R5 Monitor
1 x HDMI Cable Micro
1 x HDMI Cable Mini
1 x D-Tap Cable
1 x Snail Hot Shoe Mount
1 x Microfiber Cloth
1 x SD Card
1 x Sunshade
1 x Warranty Card
1 x Manual
