Desview R7S 7″ 4K Touch HDMI/3G-SDI 3D LUT Field Monitor

Desview R7S 7″ 4K Touch HDMI/3G-SDI 3D LUT Field Monitor - Afbeelding 2

Desview R7S 7″ 4K Touch HDMI/3G-SDI 3D LUT Field Monitor - Afbeelding 3

Desview R7S 7″ 4K Touch HDMI/3G-SDI 3D LUT Field Monitor - Afbeelding 4

Desview R7S 7″ 4K Touch HDMI/3G-SDI 3D LUT Field Monitor - Afbeelding 5

Desview R7S 7″ 4K Touch HDMI/3G-SDI 3D LUT Field Monitor - Afbeelding 6

Desview R7S 7″ 4K Touch HDMI/3G-SDI 3D LUT Field Monitor - Afbeelding 7

Desview R7S 7″ 4K Touch HDMI/3G-SDI 3D LUT Field Monitor - Afbeelding 8

Desview R7S 7″ 4K Touch HDMI/3G-SDI 3D LUT Field Monitor - Afbeelding 9

Desview R7S 7″ 4K Touch HDMI/3G-SDI 3D LUT Field Monitor - Afbeelding 10

Desview R7S 7″ 4K Touch HDMI/3G-SDI 3D LUT Field Monitor - Afbeelding 11

Desview R7S 7″ 4K Touch HDMI/3G-SDI 3D LUT Field Monitor - Afbeelding 12

Oorspronkelijke prijs was: 389,00 €.Huidige prijs is: 99,99 €.

The R7S 7″ 4K HDMI/3G-SDI Touch Field Monitor from Desview allows you to monitor SD, HD, and 4K video signals over HDMI and SDI inputs.

Artikelnummer: DE-R7S Categorieën: On Camera / Field Monitors, Studio & EFP Equipment

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

Desview R7S 7″ 4K Touch HDMI/3G-SDI 3D LUT Field Monitor

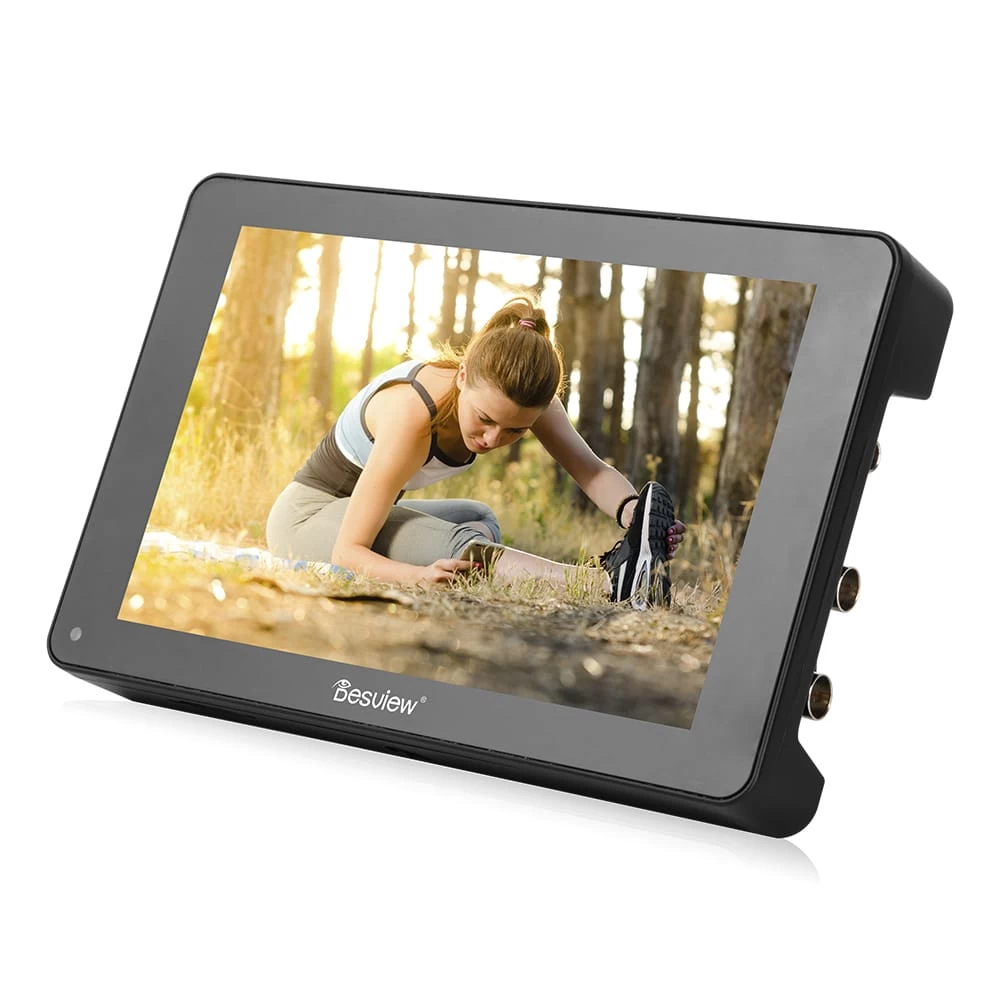

Well suited for DSLR and mirrorless cameras, or other video or cinema camera with an HDMI or SDI output, the R7S 7″ 4K HDMI/3G-SDI Touch Field Monitor from Desview allows you to monitor SD, HD, and 4K video signals over HDMI and SDI inputs. It features a 1920 x 1200 IPS LCD screen with a contrast ratio of 1100:1 and maximum brightness of 450 cd/m². Monitoring tools such as focus peaking, zebras, 1:1 pixel mapping, and more make it easy to assess your image.

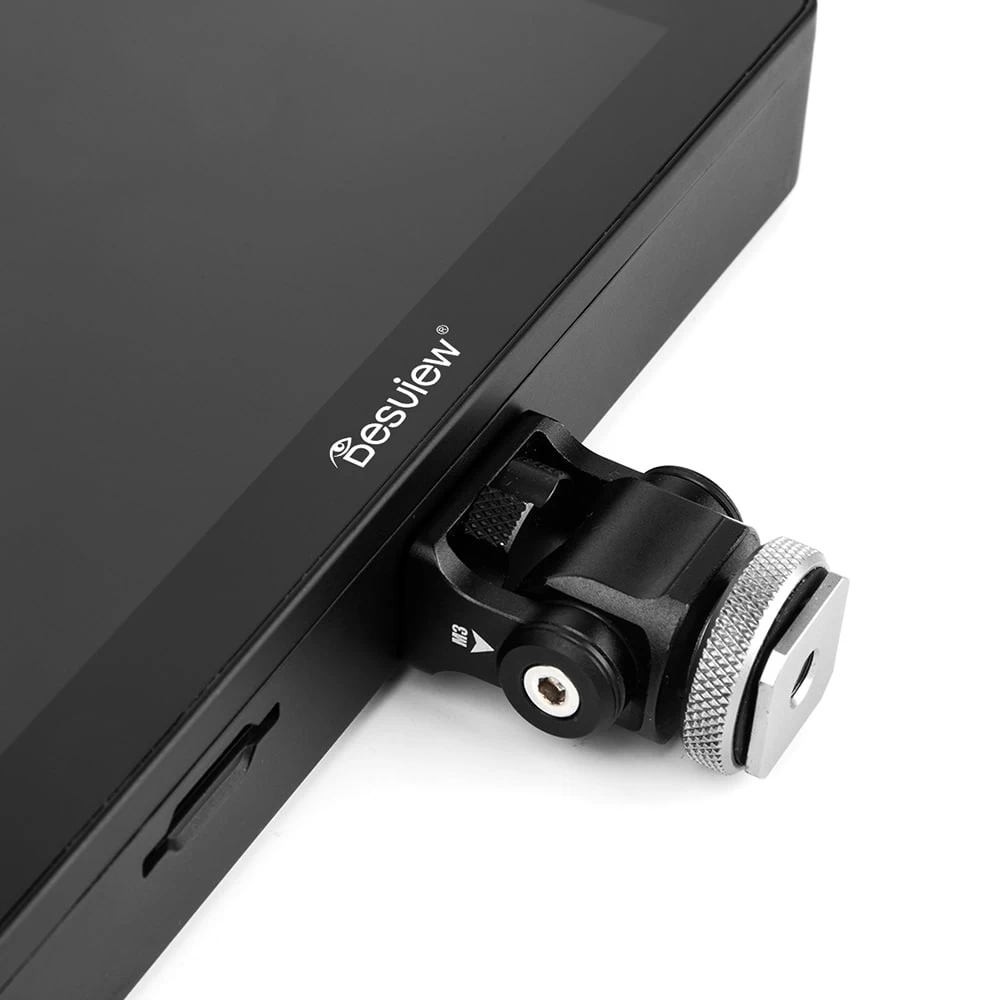

The monitor includes an L-series battery plate for power, and can also be powered using the included D-Tap power cable. Three 1/4″-20 threaded points offer mounting options, such as on an optional articulating arm or to the included cold shoe adapter.

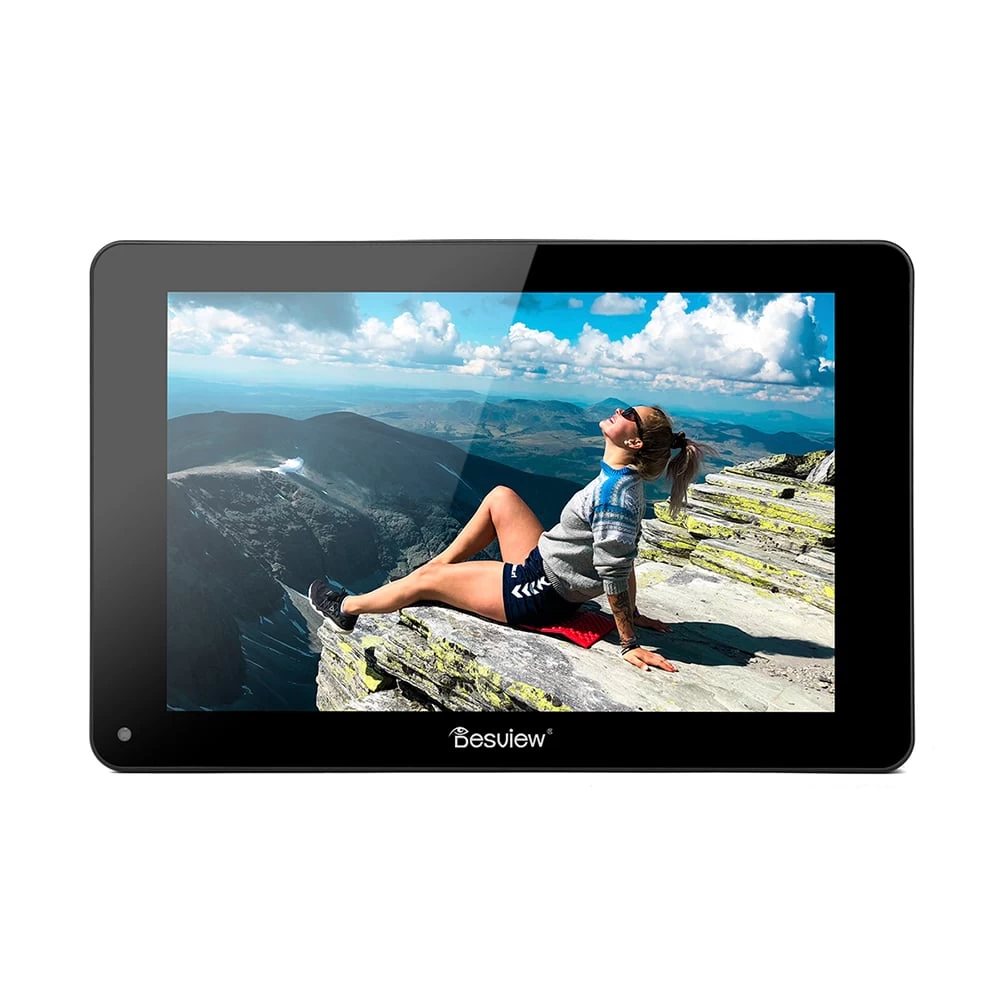

The R7S can display UHD and DCI 4K signals on its 10-bit panel. The 1920 x 1200 touch display can be used to easily check the focus and framing of your high-resolution video.

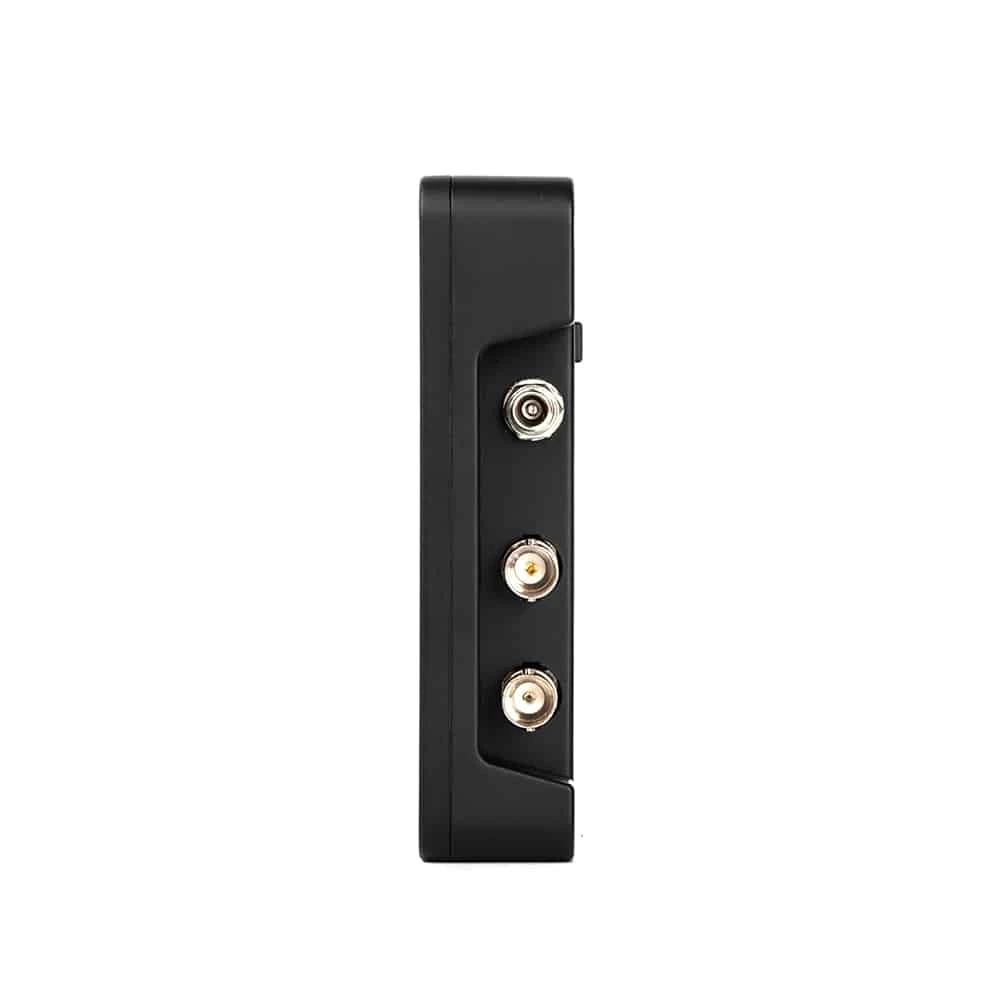

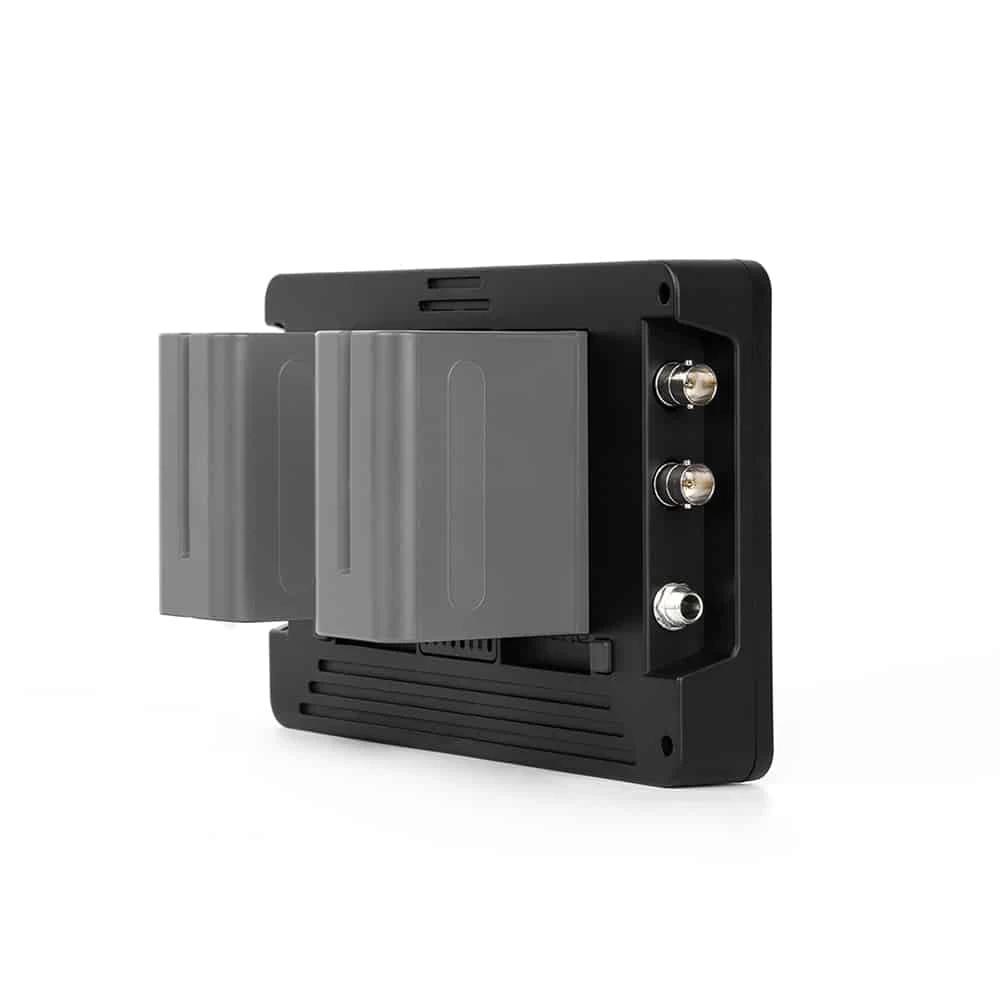

It features both HDMI and 3G-SDI pass-through inputs/outputs, allowing you to send the signal downstream without requiring a splitter. The inputs/outputs are straight pass-through, and there is no cross conversion between HDMI and SDI.

A built-in speaker allows you to hear your audio without using headphones.

When you need to fine-tune your picture, enable the peaking filter to remove color from the image and add a selectable red, blue, or green outline to any part of the image that’s in focus.

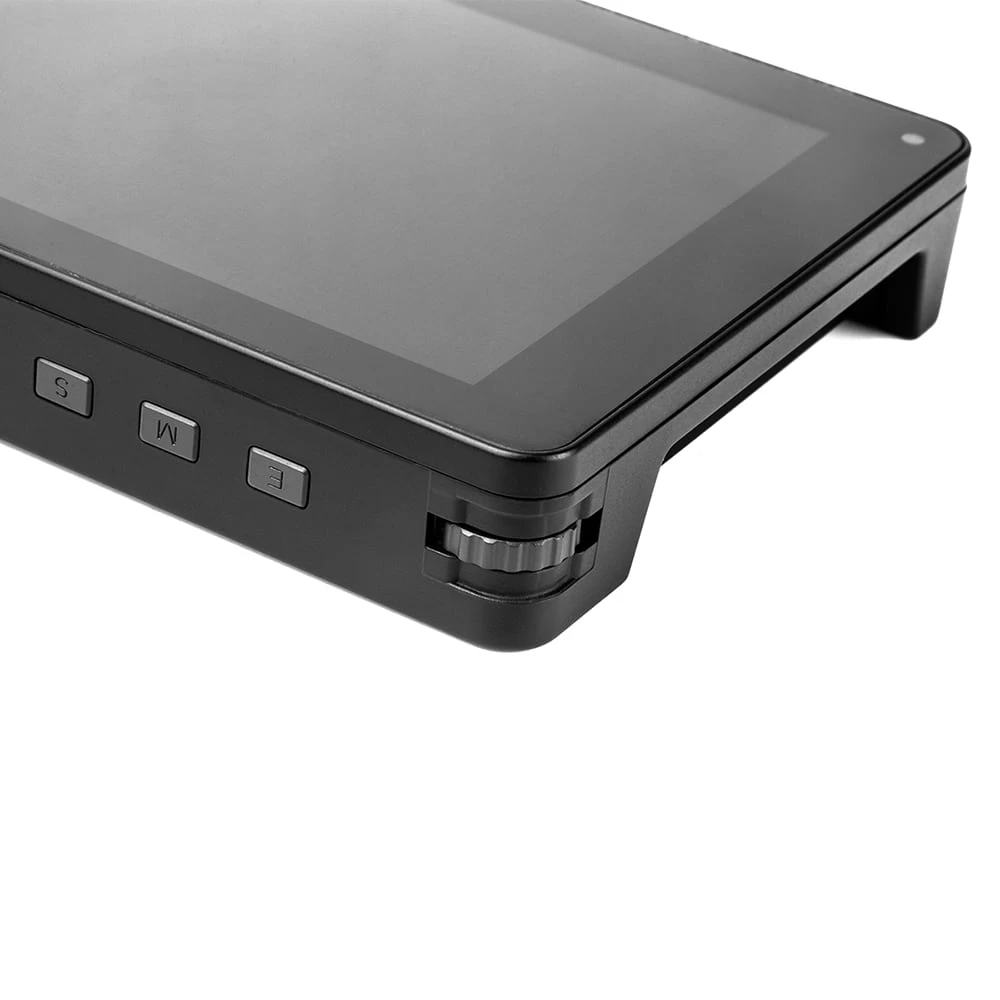

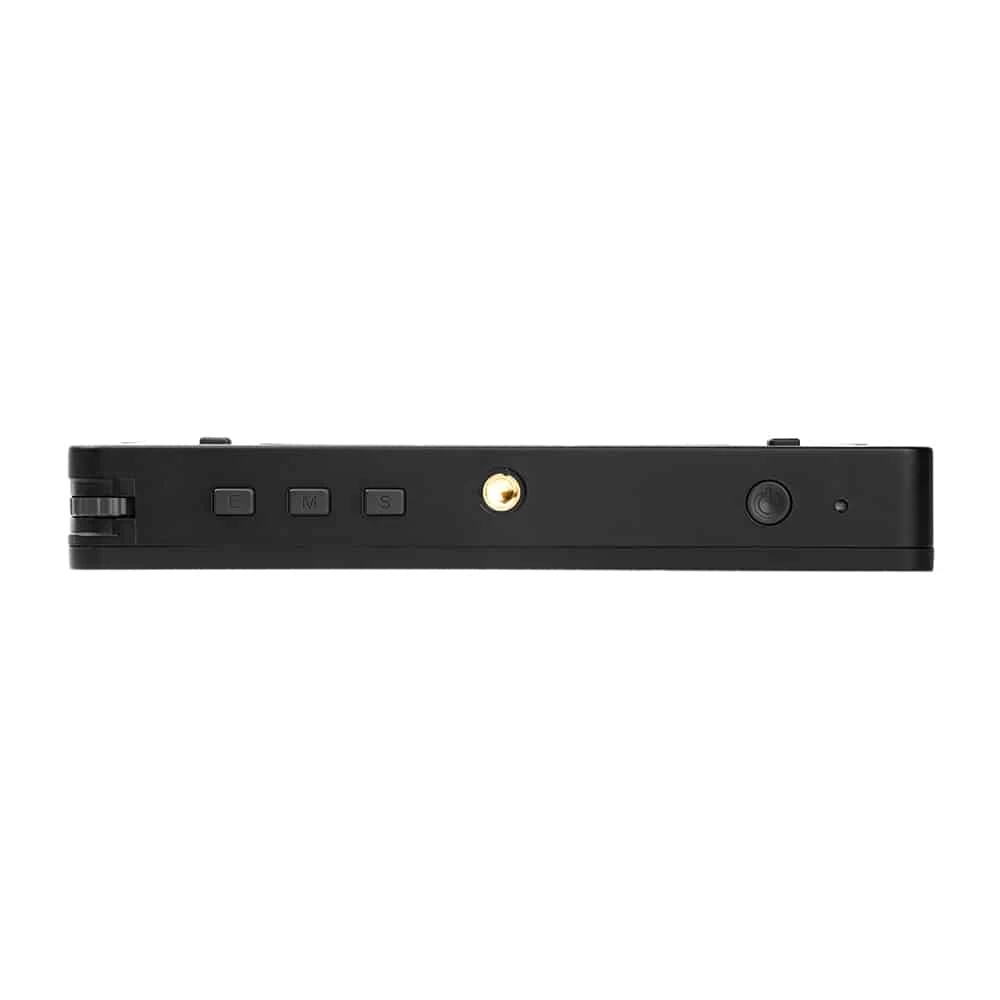

Four programmable function buttons on the front panel let you create shortcuts to the functions you use most often.

The monitor will display a 4K signal at a 1:1 resolution without any scaling or processing. As the 4K image is a greater resolution than the monitor can display natively, to see the entire image you will need to move it around on the monitor.

One of several included tools to perfect your picture, the Check Field mode helps you accurately calibrate the monitor by displaying only the selected color onscreen. Choose from red, green, blue, or gray for a grayscale image.

Image flip is an advanced feature that allows you to adjust the picture if you need to mount your monitor upside down, or if an adapter changes the orientation of the image.

For quickly assessing your exposure for blown highlights, the zebras are animated black and white stripes through overexposed areas of the image.

The included sun hood prevents glare on the monitor’s screen by blocking out stray light. It’s indispensable when shooting outdoors or in other brightly lit environments.

Features

7″ Touch Screen
Full HD 1920×1200 resolution
1000 nits high brightness for outdoor shooting

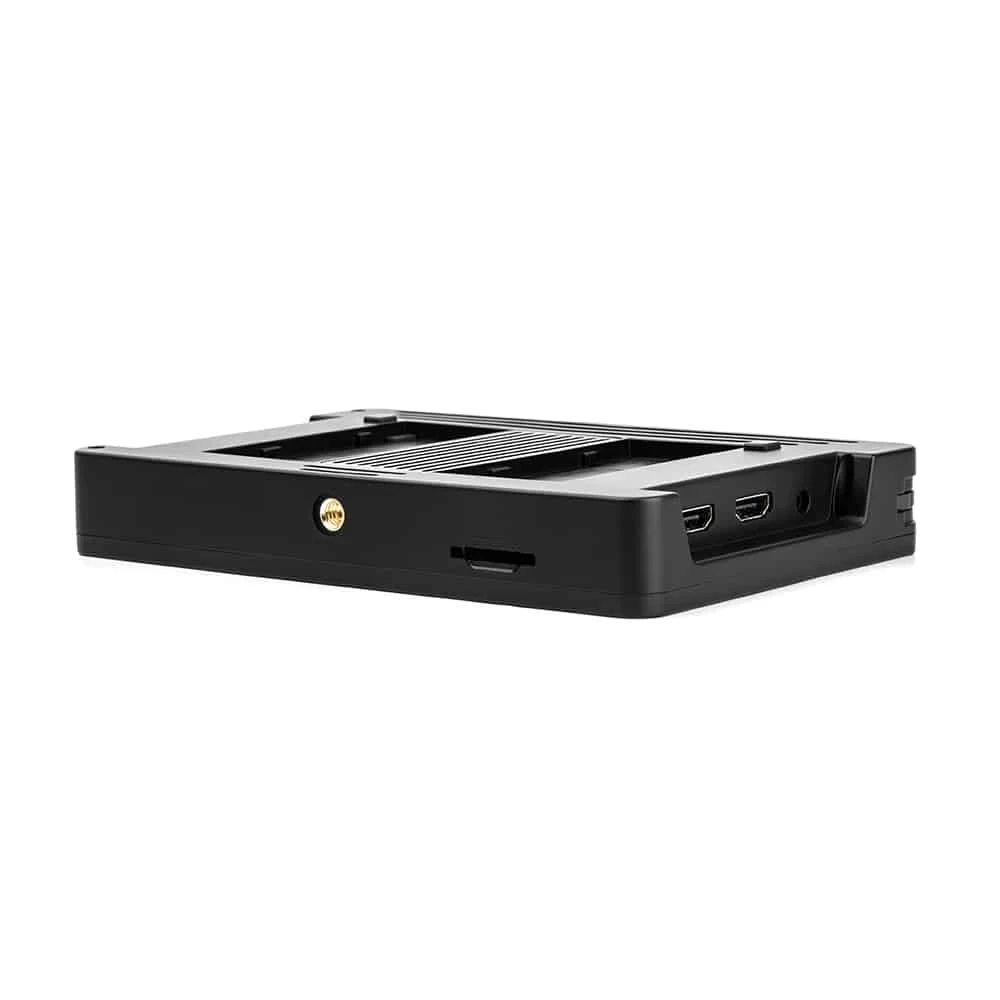

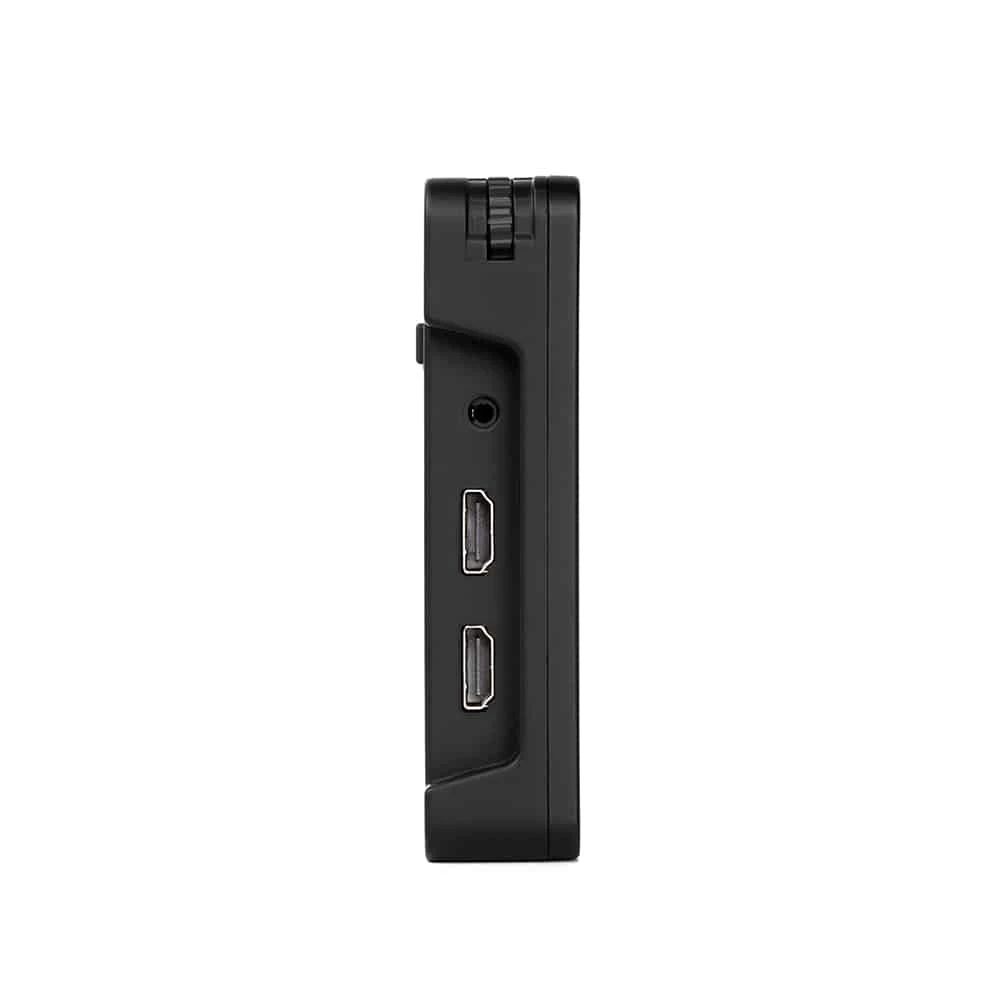

Supports 4K HDMI signal input and output

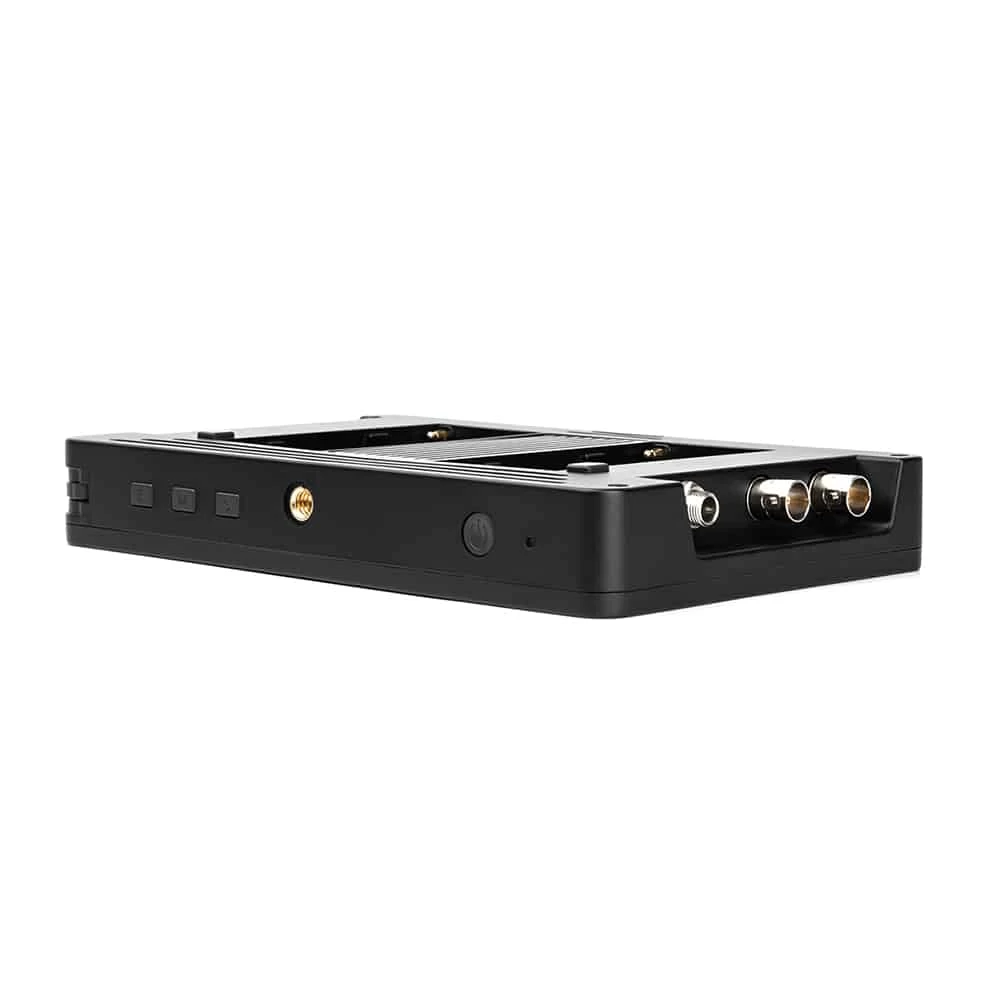

Supports 3G-SDI input and output
Histogram, waveform, full waveform, vector scope
Supports custom 3D-LUTS upload via SD card
Light sensation

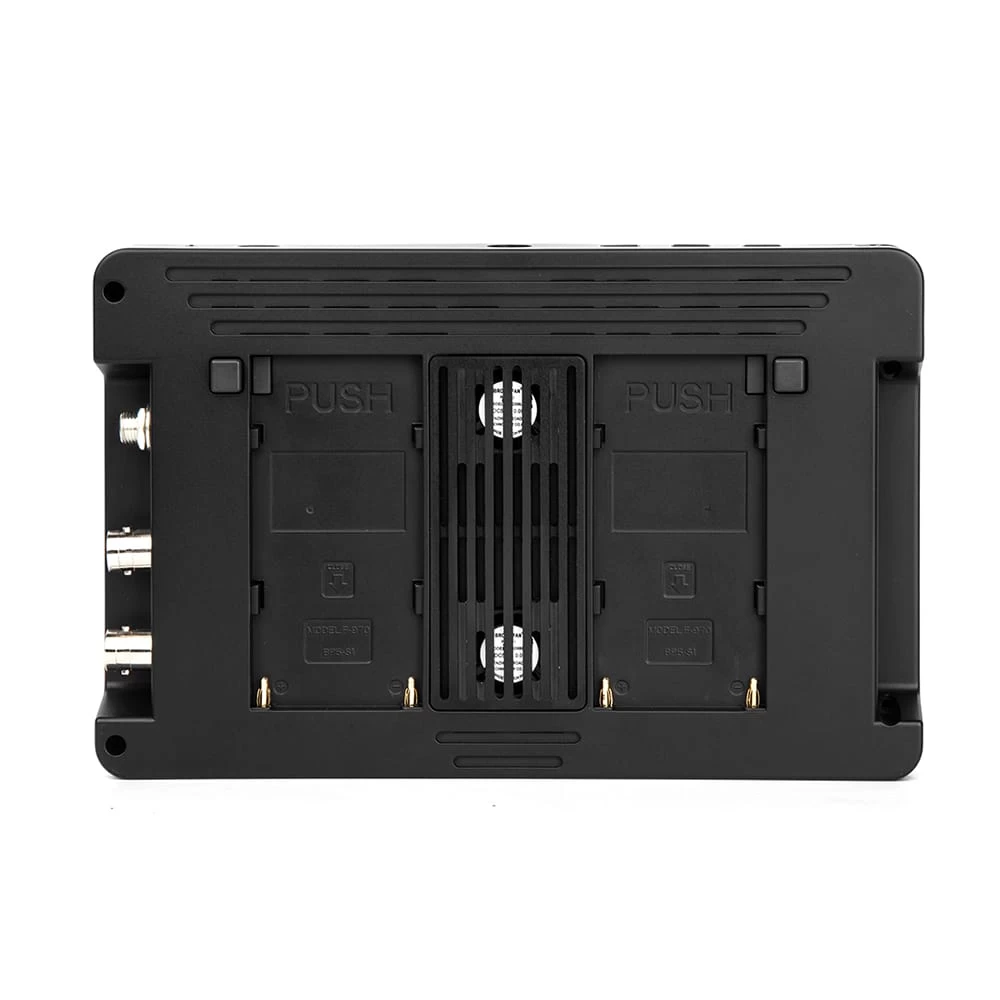

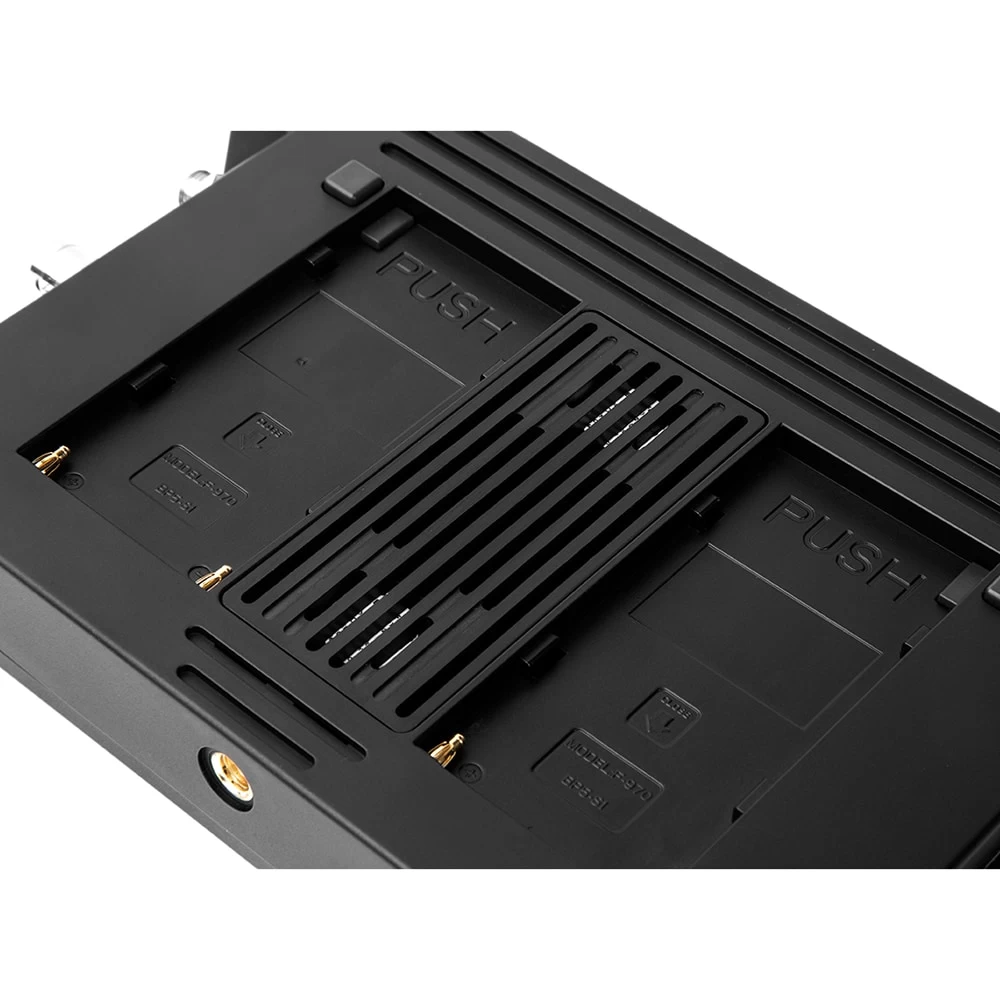

Dual NPF battery slots
Pinch to zoom

Monitoring Functions

Histogram (brightness histogram/RGB histogram)
Vector Scope
Waveform (luminance waveform/RGB waveform)
Full waveform
HDR
False color
Peaking filter
Audio meter
Custom 3D-LUTs by SD card
H/V delay
Battery notification
Zoom

Desview R7S Specifications

Package Contents

1 x Desview R7S Monitor
1 x HDMI Micro Cable
1 x HDMI Mini Cable
1 x D-Tap
1 x SD card
1 x Storage Bag
1 x snail Hot Shoe Mount
1 x Microfiber-cloth
1 x Warranty Card
1 x Manual
