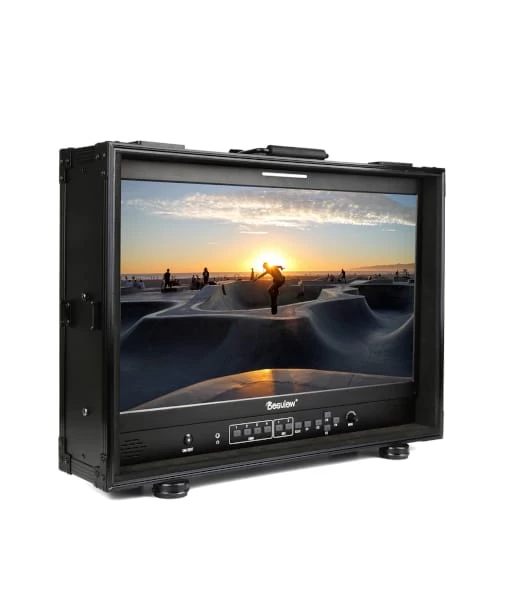

Desview S21 21.5″ Full HD HDR Broadcast Monitor

Desview S21 21.5″ Full HD HDR Broadcast Monitor

The Desview is a Full HD HDR HDMI and 3G-SDI monitor designed for studio work such as Electronic News-Gathering (ENG), broadcast studios and post production environments.

KEY FEATURES Desview S21

• 21.5″1920×1080 FHD Display Panel
• Support HDR Display(ST2084)
• Built in LUT:EBU,SMPTE_C,Rec.709,DCI-P3
• Support 4x HDMI input and 1x HDMI output
• Support 2x 3G-SDI input and 1x 3G-SDI output
• Adjustable Color Temperature and Customize RGB Value
• Gamma Selection:2.2,2.4,2.6
• Multi-View Mode:1P,2P_LR,2P_TB,2P_PIP,4P
• Battery Information Display

Specifications Desview S21

Model	S21
Screen Size	21.5”
Display area	479.8 × 271.3 mm (H×V)
Resolution	1920*1080
Aspect Ration	16:9
Response time	10/15(TPY)(Tr/TD)
Brightness	400CD/M2
Contrast	1000:1
LED Back light life	50,000 hours
Display menu	(OSD) / push-button control
Viewing Angle	178°(89°/89°L/R) 178°(89°/89°U/D)

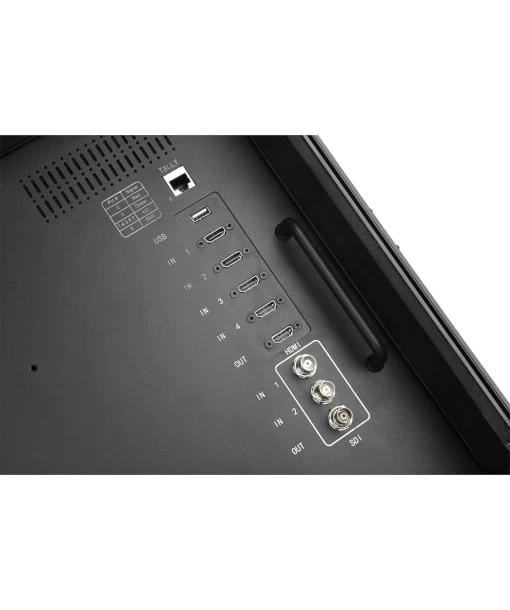

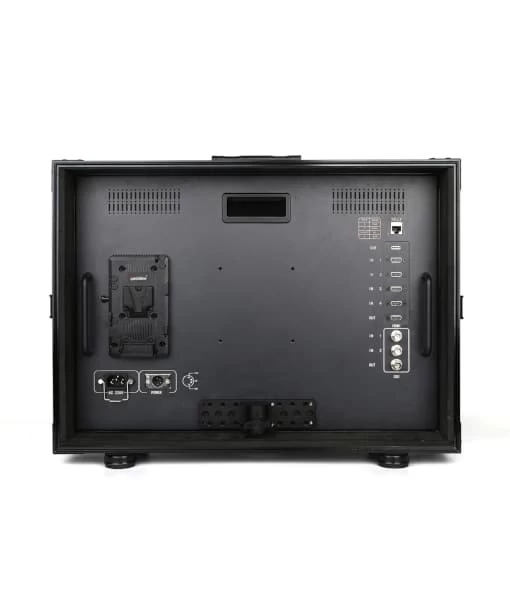

Input & Output	4*HDMI Input 1*HDMI output 2*3G-SDI input 1*3G-SDI output
Headphone jack	×1 3.5mm
Speaker	×1 R.L two-channel output
Input Voltage	DC 12V 2A
AC Built	110V-265V AC, 50-60 Hz
Power Comsumption	≤26W TPY
Humidity	10% -90%
Storage humidity	5% -90%
Operating Temperature	-10 ℃ -60 ℃
Storage Tempetature	-20 ℃ -80 ℃
Warranty	1 Year



INCLUDED BY DEFAULT

• Sun-hood
• HDMI cable
• Wipe cloth
• Warranty card
• Standard Operating Instructions (available in English)
