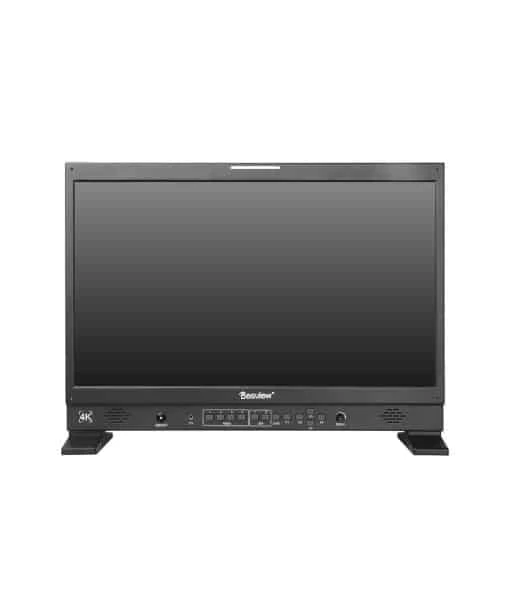

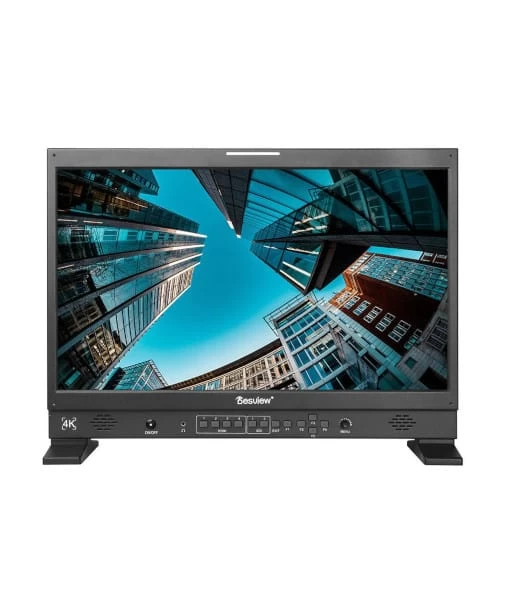

Desview S24-HDR 23.8″ UHD 4K HDMI 3G-SDI Broadcast Monitor

Desview S24-HDR 23.8″ UHD 4K HDMI 3G-SDI Broadcast Monitor

The Desview S24-HDR is S24-HDR is a 23.8″ 4K UHD HDMI 3G-SDI broadcast monitor with HDR. Ideal for Broadcasting and Live streaming Events.

KEY FEATURES Desview S24-HDR

• 24 inch 4K display panel
• UHD resolution 3840×2160
• HDR function(PQ)
• 4xHDMI input,1x HDMI output
• 2x 3G-SDI input,1x 3G-SDI output
• 1000:1 contrast ratio
• 178 degree viewing angle
• 400cd/m2 brightness

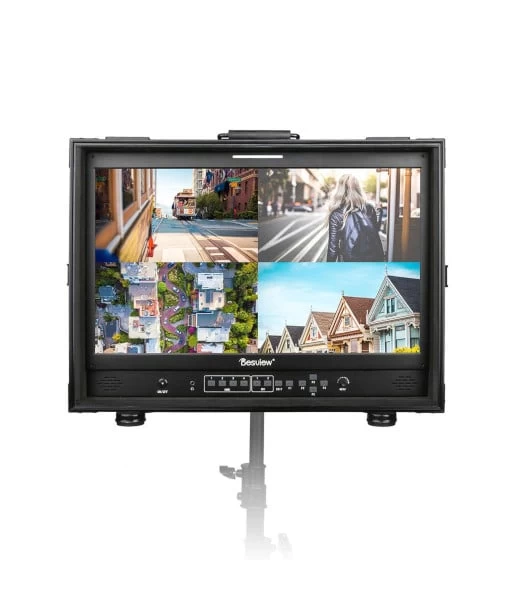

• PIP/PBP capable
• Battery information display
• Professional color calibration
• Build in 3D-LUT(SMPTE_C/DCI_P3/Rec709/EBU)
• Gamma selection(2.2/2.4/2.6)
• Video assist functions

Specifications Desview S24-HDR

Model	S24-HDR
Screen Size	24 inch
Resolution	3840*2160
Display area	527.04(W) x296.46(H)mm
Contrast Ratio	1000:1
Brightness	400nit
Viewing Angle	178°(H/V)
Backlight	LED

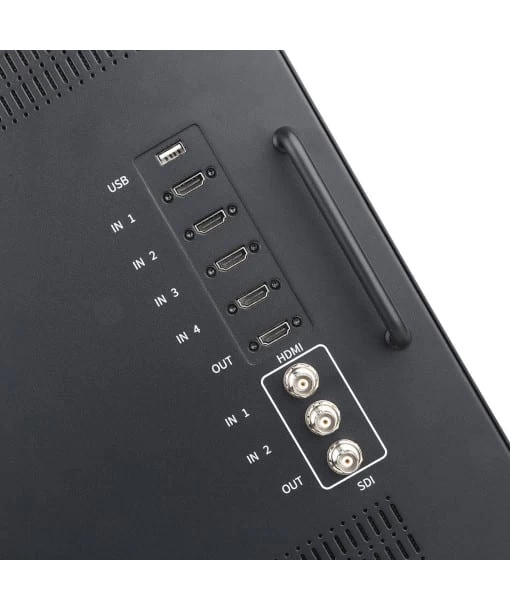

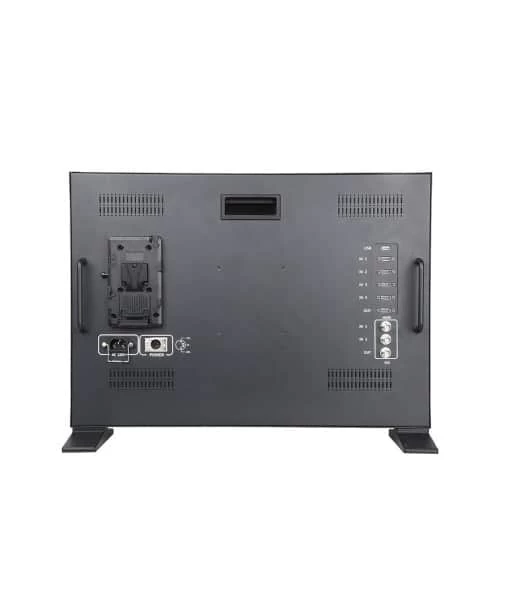

Video Input	2x HDMI2.0(1/2) 2x HDMI1.4 (3/4) 2x 3G-SDI(1/2) 1x Tally
Output	1x HDMI(4) 1x 3G-SDI
Audio Input / Output	Speaker out x2 3.5mm Headphone Jack
Format	HDMI	720*480i&720*480p @59.94, 60Hz 720*576i & 720*576p @50Hz 1280*720P@ 50, 59.94, 60Hz 1920*1080i @ 50, 59.94, 60Hz 1920*1080psf @ 24, 25, 29.97, 30Hz 1920*1080p @23.93, 24, 25, 29.97,30,50,59.94,60Hz 3840*2160p @ 24,25,30,[50,60Hz(HDMI1/2)] 4096*2160P @ 24Hz
	3G-SDI	720*480i @59.94, 60Hz 720*576i @50Hz 1280*720P@ 50, 59.94, 60Hz 1920*1080i @ 50, 59.94, 60Hz 1920*1080psf@ 24, 25, 29.97, 30Hz 1920*1080p @23.93, 24, 25, 29.97,30,50,59.94,60Hz
Installation	Desktop(T-Type Stand)
Texture	Aluminum alloy front case and iron back case
AC Input Voltage	AC100-240V
Power Dissipation	≤36W

INCLUDED BY DEFAULT

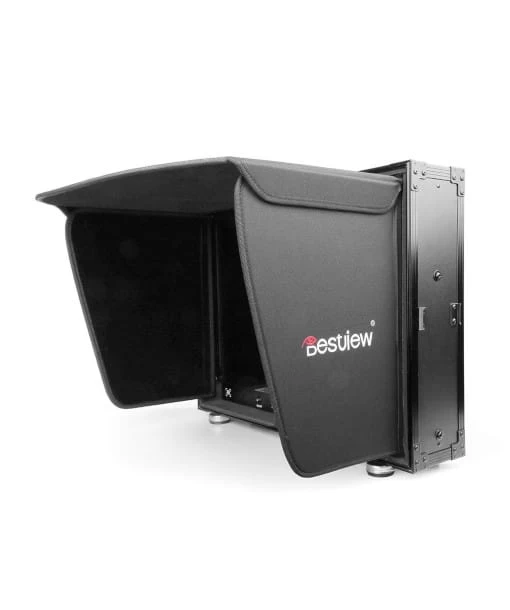

• Suns-hood
• HDMI cables
• Wipe cloth
• Warranty card
• Standard Operating Instructions (available in English)
