Desview S5 4K HDMI Compact On-camera Monitor

Desview S5 5.5″ compact on-camera monitor 1920×1080

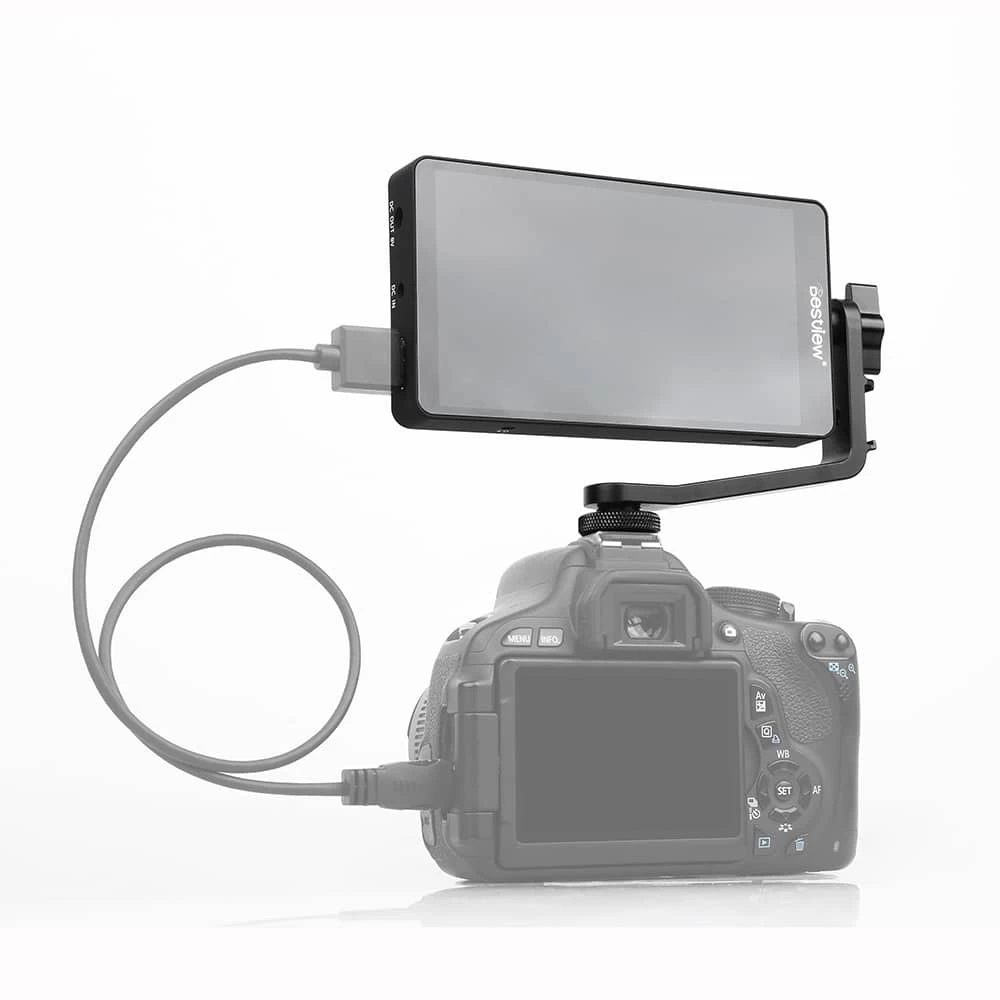

The Desview S5 is a compact and highly lightweight on-camera monitor featuring a 1920 x 1080 screen resolution and supporting up to DCI 4K HDMI signals. Its small size makes it a convenient on-camera option as well as a suitable complement to handheld gimbals. The S5 is designed with what Bestview calls “OCR” (Optical Clear Resin) screen technology, which is a type of screen bonding that allows the monitor to have thinner bezels and hence more room to display an image.

In addition to helping you frame and monitor your shots, the S5 also offers a store of monitoring functions for setting up your shot with the proper focus and other factors. Included among these are Histogram, Zebra, Peaking, False Colors, Pixel-to-Pixel, and Anamorphic mode.

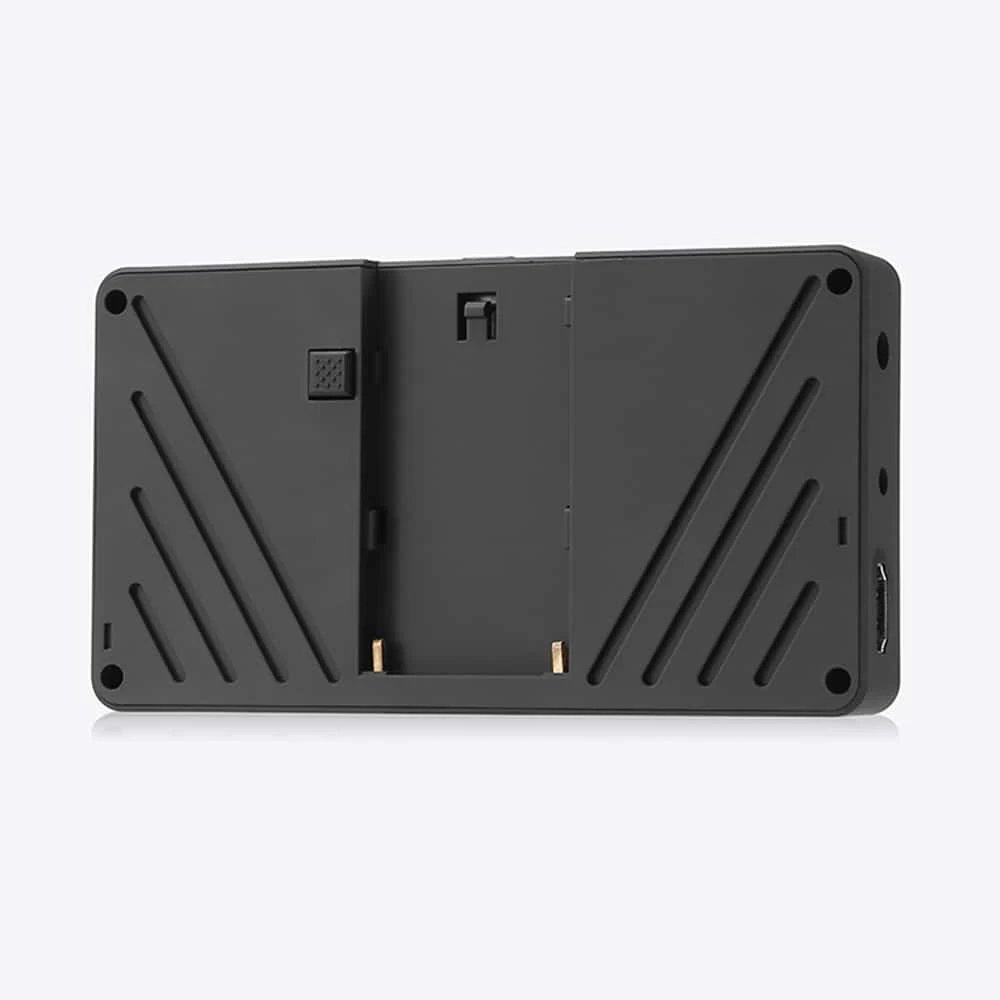

The S5 is built with native support for optional L-series batteries. A DC to L-series dummy battery power cable is also included for powering your camera, and an optional power supply is also supported for continuous power.

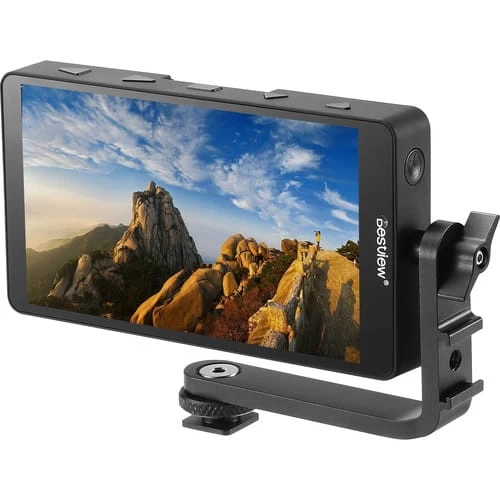

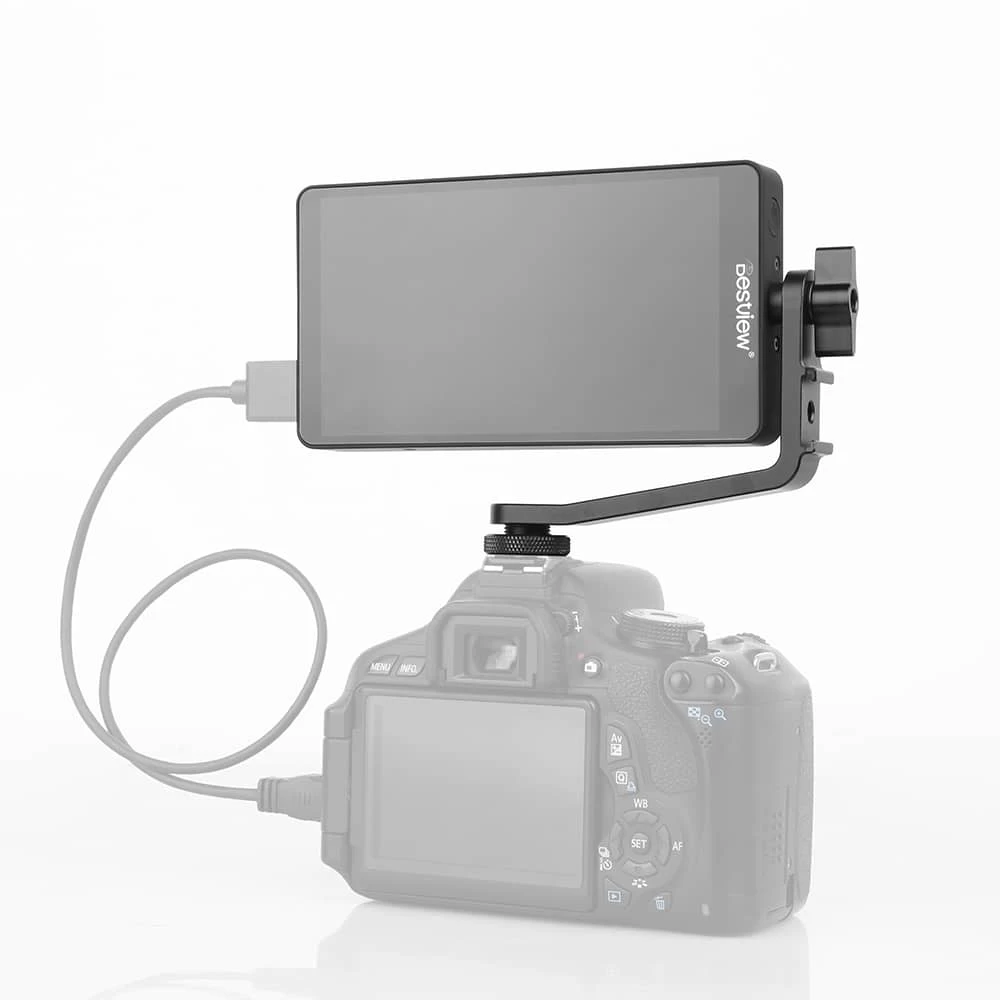

For mounting, an L-shaped mounting bracket is included that secures into a 1/4″-20 mounting thread on the side of the monitor. The bracket provides a cold shoe on the other end and offers a cold shoe mount on the side. For control, there are four function buttons and a menu button on top. A protective case and sunhood are also included along with cables and other accessories.

Features

• 1920 x 1080 screen resolution
• Up to DCI 4K HDMI signal input
• “OCR” (Optical Clear Resin) screen technology allowing for thin bezels and larger display

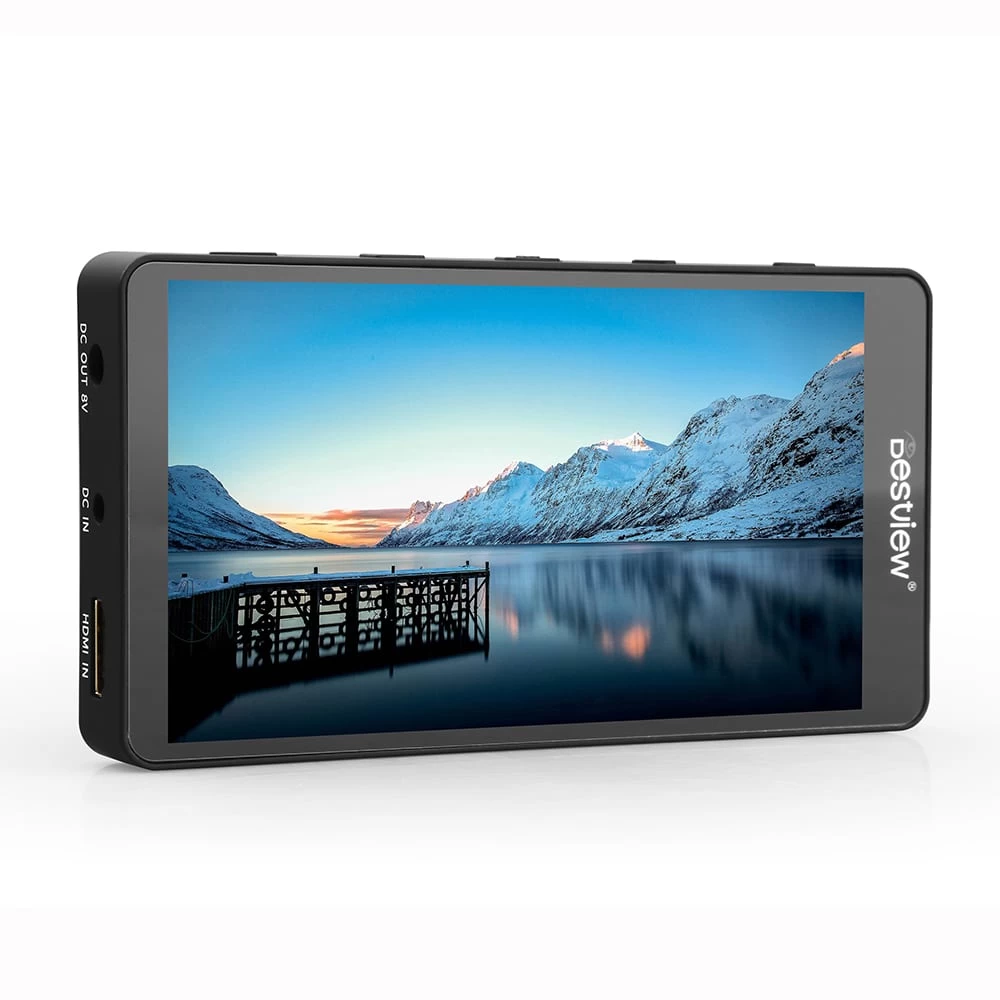

• HDMI and headphone inputs
• Native support for L-series batteries
• DC to L-series dummy battery power cable included
• Support for optional continuous power supply
• L-shaped mounting bracket with cold shoe and shoe mount

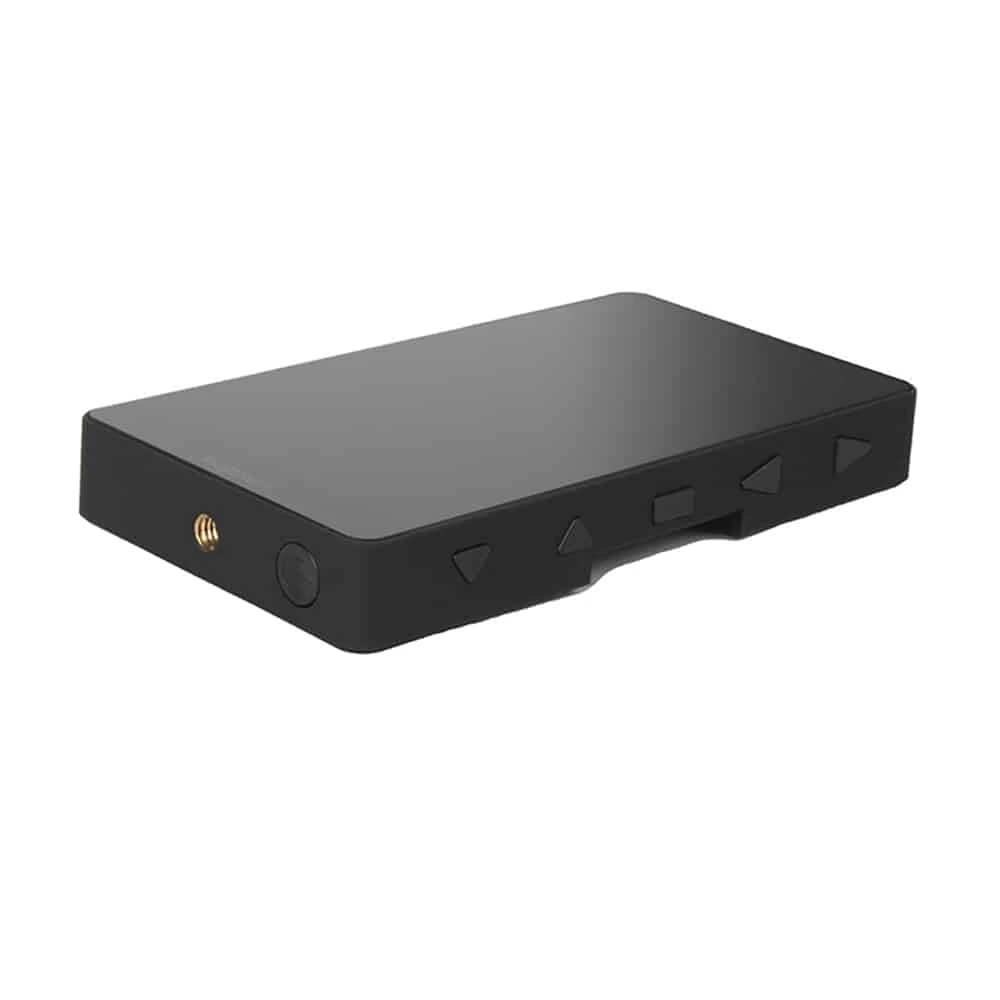

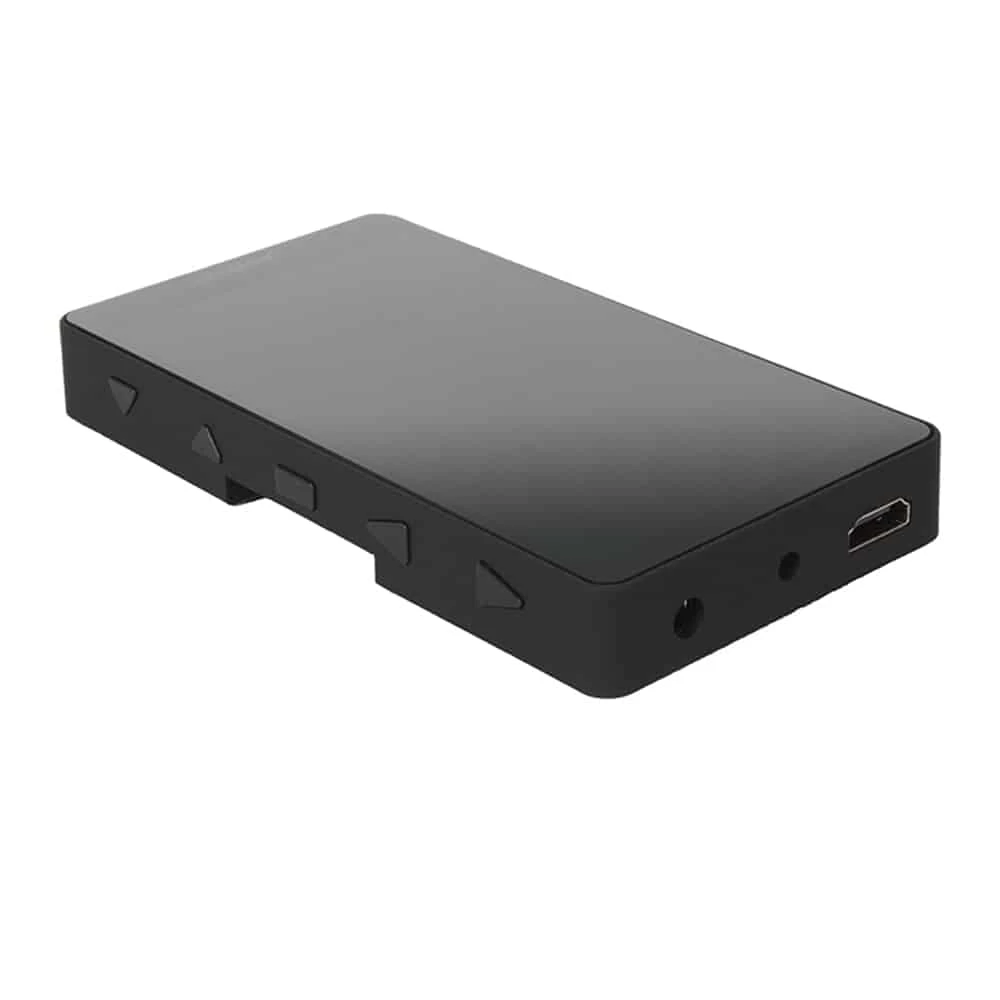

• Four function buttons and a menu button on top

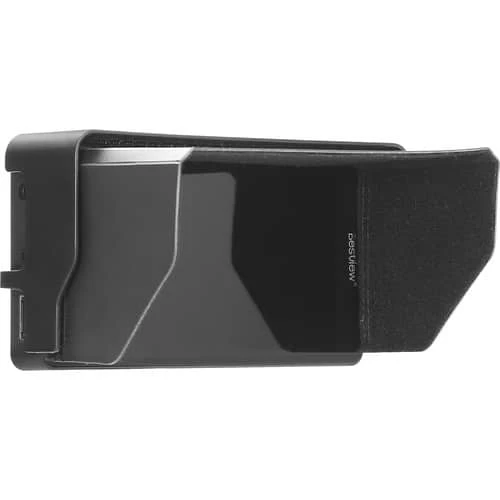

• Protective case and sunhood included

Monitoring Functions

• Histogram
• Zebra
• Check field
• Peaking
• False colors
• Camera mode
• Image freeze
• Guide marks and crosshair
• DSLR scale
• Pixel-to-pixel
• Audio wave
• Image flip
• Exposure
• Zoom-in
• Anamorphic mode

Desview S5 Specifications

Panel Type	LCD
Display Size	5.0″ / 12.7 cm
Screen Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 160° (80/80) Vertical: 160° (80/80)
Touchscreen	No
Maximum Brightness	330 cd/m2
Contrast Ratio	1000:1
Pixels Per Inch (ppi)	440 ppi
Real-Time LUT Monitoring	No

Video	1 x HDMI Type A Input
Audio	1 x 3.5 mm Headphone Input
Built-In Speaker	None
Power	1 x Barrel Input
Other I/O	None
Card Slot	None

Video Format

HDMI DCI 4K: 24 UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24 1080i: 60/59.94/50 720p: 60/50 480i 576i

DC Input Power	7 to 24 VDC
Battery Type	1 x L-Series
Power Consumption	9 W (Maximum)

Mounting

1 x 1/4″-20 Female

Dimensions (W x H x D)	5.63 x 3.07 x 0.83″ / 14.3 x 7.8 x 2.1 cm
Weight	153 g

Package Contents

1 x Desview S5 Monitor
1 x HDMI Cable
1 x L mount
1 x Sunhood
1 x Sunshield
1 x Bag
1 x Wipe-cloth
1 x Warranty Card
1 x Manual
