Desview SP17-HDR 17.3’’ 4K HDMI Broadcast Monitor

Desview SP17-HDR 17.3’’ 4K HDMI Broadcast Monitor

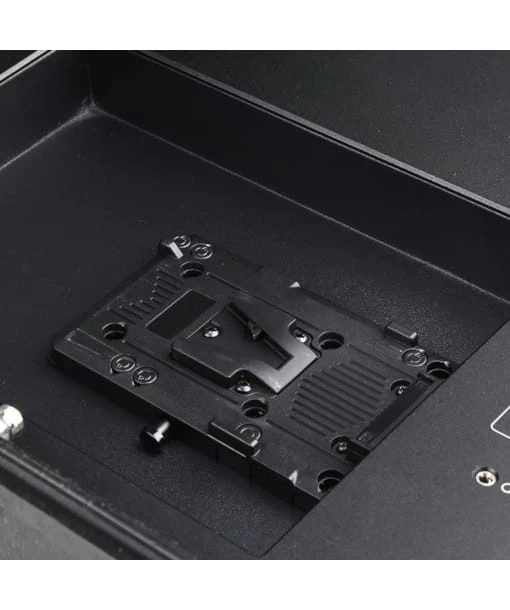

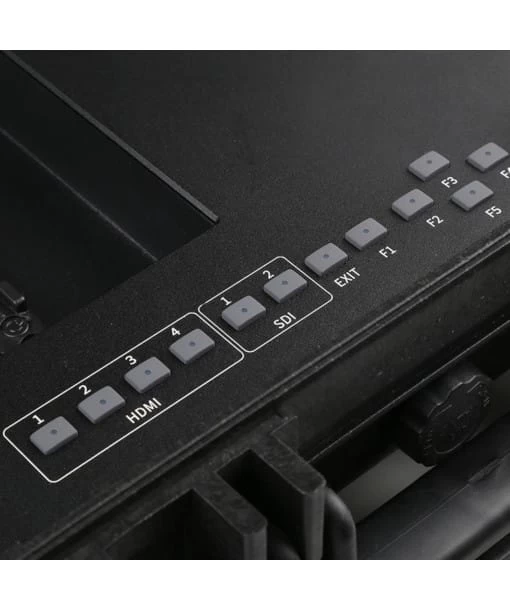

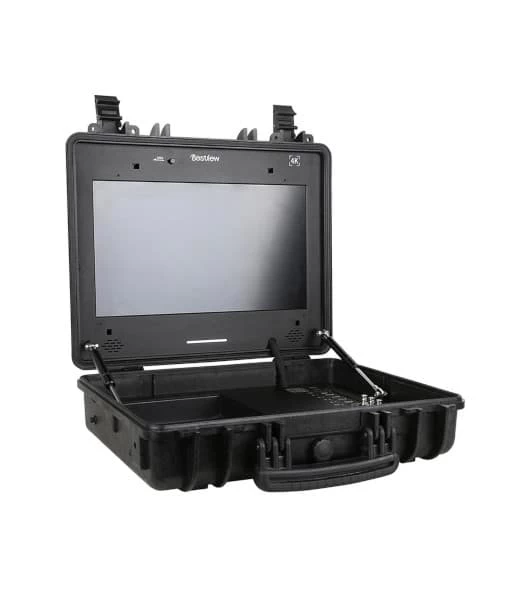

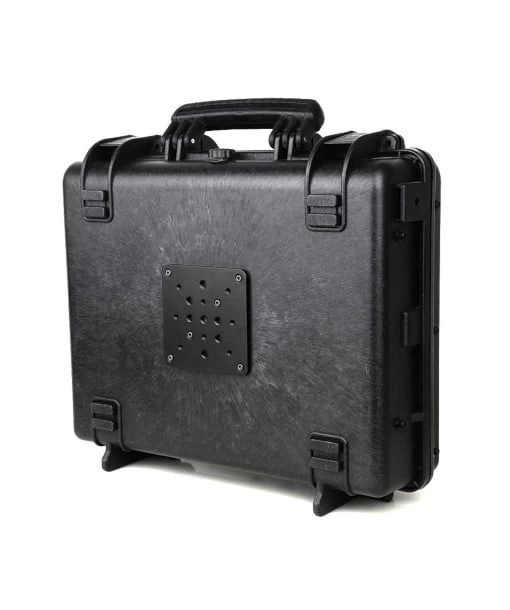

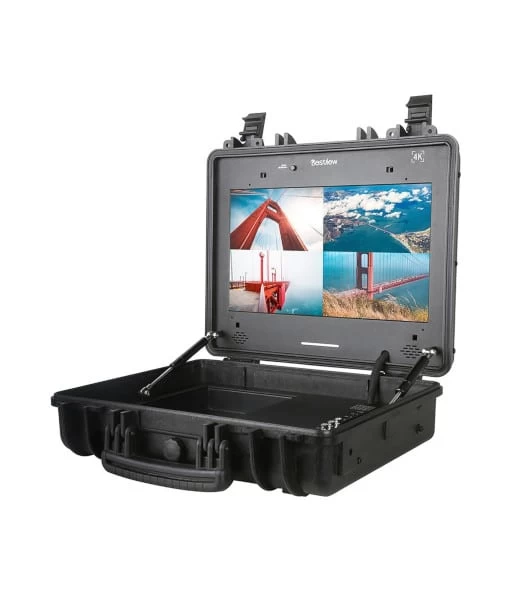

The Desview SP17-HDR is designed for broadcast studios and post production environments. It supports UHD 3840 x 2160 IPS HD video, and it has a contrast ratio of 1000:1, 10-bit color depth, 400 cd/m2 brightness, and Rec. 709 color calibration. The monitor features four HDMI 2.0 inputs and can display up to four 4K sources in a quad PIP/PBP format simultaneously. Additional 3G-SDI and DVI/VGA sources can also be switched in. The monitor has a headphone jack and a two-channel audio line-level output. The monitor also includes an RJ45 tally port. Settings and controls are configured with the buttons in the base of the case. The portable monitor is installed in a rugged, military-grade plastic case and includes a V-mount battery plate when mains power is unavailable. The case also supports an optional Gold mount plate. The package also includes a sun hood, HDMI cable, SDI cable, XLR AC power adapter, and a cleaning cloth.

KEY FEATURES Desview SP17-HDR

• 17.3 inch 4K display panel
• UHD resolution 3840*2160HDR function
• 4xHDMI input,1x HDMI output
• 2x 3G-SDI input,1x 3G-SDI output
• 1000:1 contrast ratio
• 178 degree viewing angle
• 400nit brightness
• PIP/PBP capable
• Battery information display
• Professional color calibration
• Build in 3D-LUT(SMPTE/EBU/REC709/DCI-P3)
• Gamma selection(1.8/2.0/2.2/2.4)
• Video assist functions

Specifications Desview SP17-HDR

Model	SP17-HDR
Screen Size	17.3
Resolution	3840*2160
Display area	382.12(W) ×214.94H)mm
Contrast Ratio	1000:1
Brightness	400nit
Backlight	LED

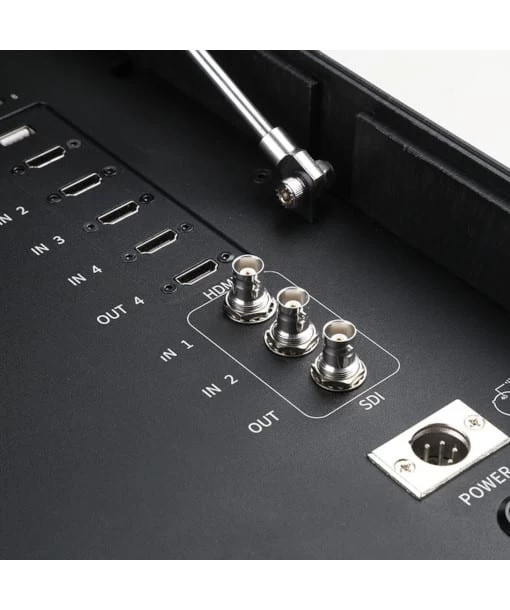

Video Input	2x HDMI2.0(1/2) 2x HDMI1.4 (3/4) 2x 3G-SDI(1/2)
Output	1x HDMI(4) 1x 3G-SDI
Audio Input / Output	Speaker out x2 3.5mm Headphone Jack
Format	HDMI	720*480i&720*480p @59.94, 60Hz 720*576i & 720*576p @50Hz 1280*720P@ 50, 59.94, 60Hz 1920*1080i @ 50, 59.94, 60Hz 1920*1080psf @ 24, 25, 29.97, 30Hz 1920*1080p @23.93, 24, 25, 29.97,30,50,59.94,60Hz 3840*2160p @ 24,25,30,[50,60Hz(HDMI1/2)] 4096*2160P @ 24Hz
	3G-SDI	720*480i @59.94, 60Hz 720*576i @50Hz 1280*720P@ 50, 59.94, 60Hz 1920*1080i @ 50, 59.94, 60Hz 1920*1080psf@ 24, 25, 29.97, 30Hz 1920*1080p @23.93, 24, 25, 29.97,30,50,59.94,60Hz
AC Input Voltage	AC100-240V
Power Dissipation	≤26W

INCLUDED BY DEFAULT

• Suns-hood
• HDMI cables
• Wipe cloth
• Warranty card
• Standard Operating Instructions (available in English)
