Desview U6 5.5″ 4K HDMI 2.0 Camera Control Monitor

Desview U6 5.5″ 4K HDMI 2.0 Camera Control Monitor

The Desview U6 5.5″ 4K HDMI Camera Control Monitor provides professional monitoring in a sharp 5.5″ IPS LCD with 1920 x 1080 resolution, 2800 cd/m² brightness, 1000:1 contrast ratio, and touchscreen control. The monitor has a HDMI input and output, and it supports up to DCI and UHD 4K video input and pass-through output. It also features a USB Type-C port that provides 5V power input for the monitor, and it also can be used for LANC camera control functions such as iris and focus. You can also power your camera or other accessories using the 8 VDC barrel output..

KEY FEATURES DESVIEW U6

• 99.5% DCI-P3 Color Gamut
  Accurately restore the color of the picture and show more color details

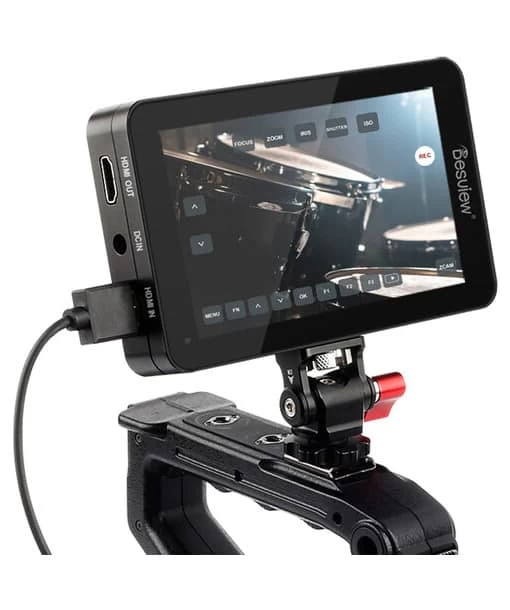

• Camera Control
  Built-in camera control for camcorder through LANC cable. Easily check camera image on the monitor and control camera settings as well
• HDMI 2.0 Signal
  Supports 4K60Hz HDMI Input and Output
• 2800 Nits High Brightness
  Get Clear image with outdoor sunlight
• Metal body
  Made of aluminum alloy
• Gravity Sensor and Sync Flip
  The shooting image changes synchronoulsy with the monitors direction
• Custom 3D LUT
  Buit-in multiple camera lut files aswell possibility to stor 30 user LUT files.
• Light sensor
  Auto brightness
• HDR
  Get more details with HDR
• Touchscreen

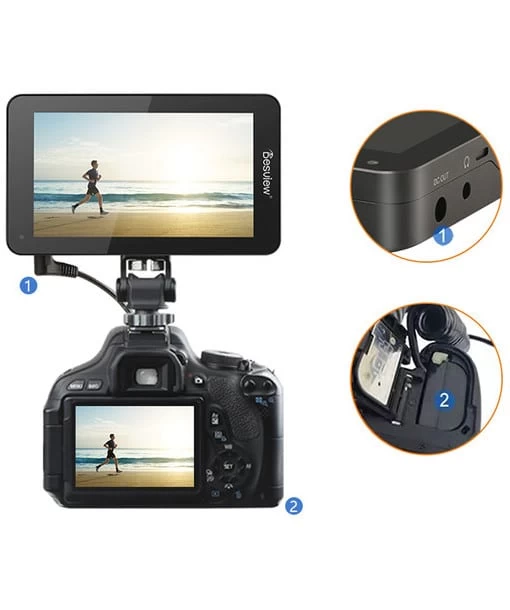

• DC Power Supply for DSLR Cameras
  Supports DC-8V output
• Multiple Power Supply Methods
  Type-C with 5V Power bank, Sony F series batteries, DC-IN 7-24V Power

SPECIFICATIONS DESVIEW U6

Display
Panel Type	IPS-Type LCD
Display Size	5.5″ / 14.0 cm
Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178° Vertical: 178°
Touchscreen	Yes
Maximum Brightness	2800 cd/m2
Contrast Ratio	1000:1
Dot Pitch	0.021 x 0.063 mm
HDR Compatibility	None
Pixels Per Inch (ppi)	400 ppi
Real-Time LUT Monitoring	SDR, HDR
I/O
Image Controls	Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra
Video	1 x HDMI Type A (HDMI 2.0) Input 1 x HDMI Type A (HDMI 2.0) Output
Embedded Audio	HDMI
Audio	1 x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	None
Power I/O	1 x Barrel (24 VDC) Input 1 x Barrel (8 VDC) Output 1 x USB Type-C (3 A / 5 VDC) Input
Other I/O	1 x USB 2.0 (USB Type-A) Input 1 x LANC (USB Type-C) Input/Output
Media/Memory Card Slot	None
Wi-Fi	None
Format Support
Video Format	HDMI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94
Power
DC Input Power	7 to 24 VDC
Battery Type	1 x L-Series (Interchangeable Mount)
Power Consumption	15 W
General
Mounting	2 x 1/4″-20 Female
Operating Temperature	-4 to 131°F / -20 to 55°C
Storage Temperature	-22 to 149°F / -30 to 65°C
Dimensions	6 x 3.5 x 1.11″ / 151.4 x 89.1 x 28.21 mm



INCLUDED BY DEFAULT

• Desview U6 5.5″ 4K HDMI Camera Control Monitor
• Thumb Drive
• Cold Shoe Mounting Adapter
• HDMI Cable Set
• D-Tap Power Cable
• USB Type-C to LANC Camera Control Cable
• Microfiber Cleaning Cloth
• Storage Case
