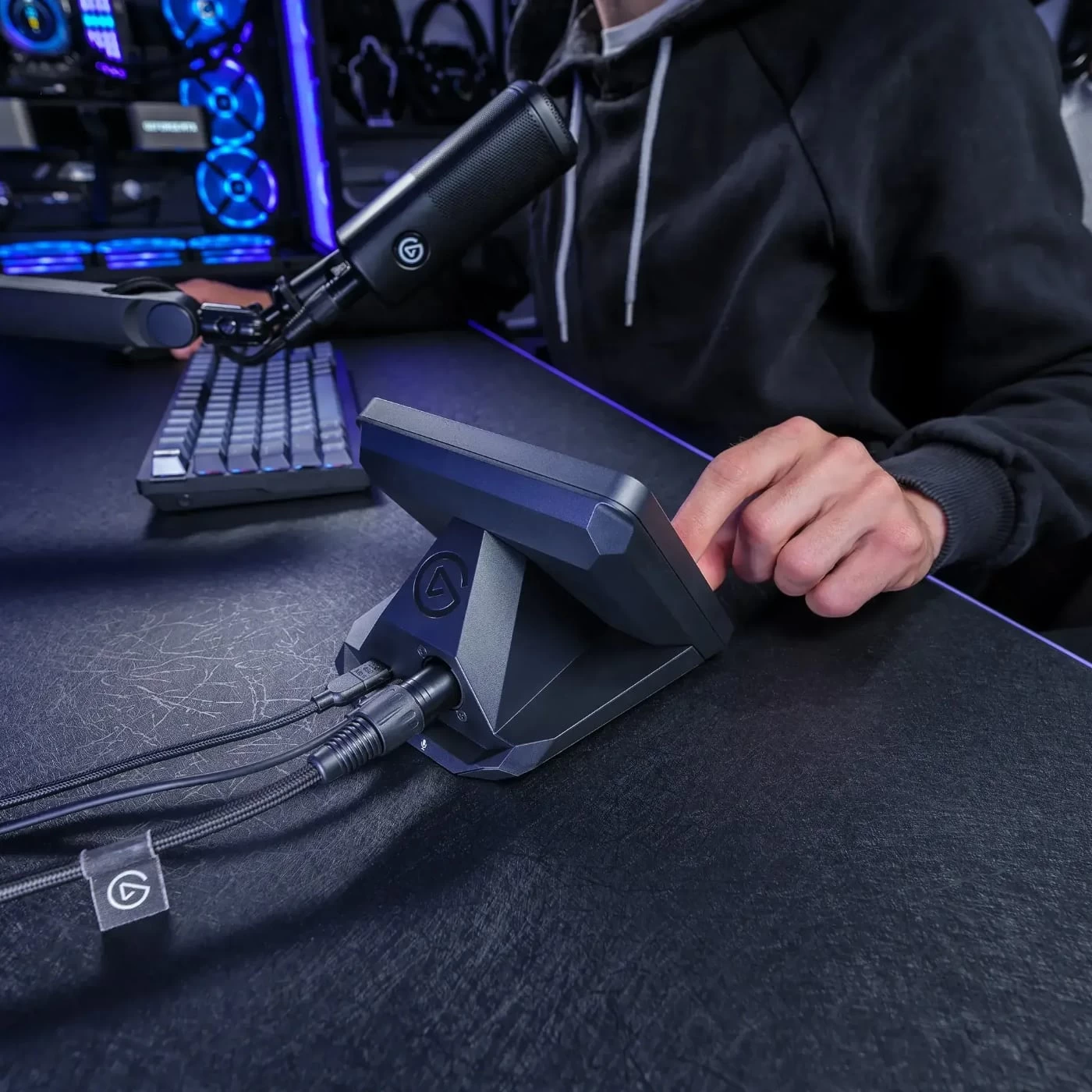

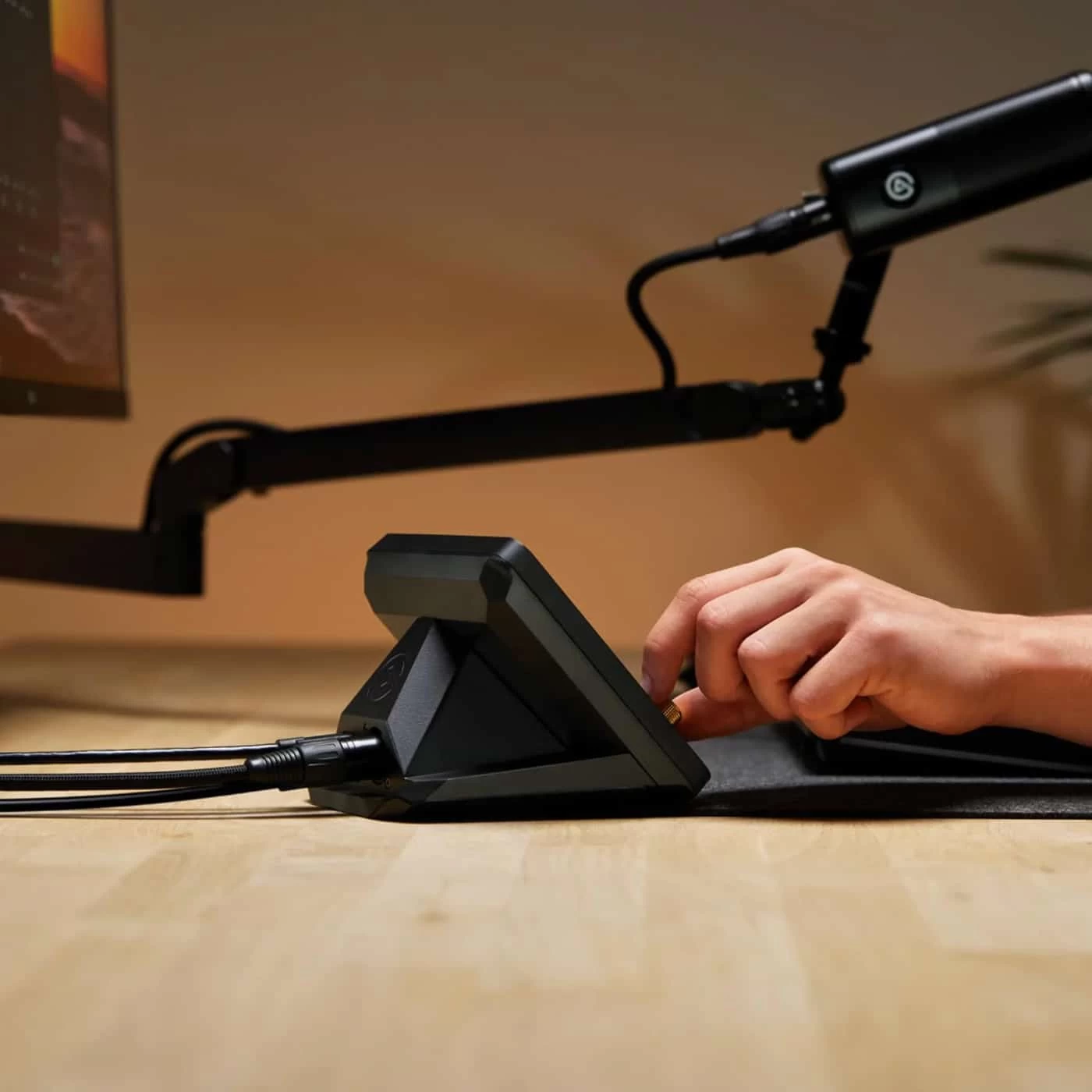

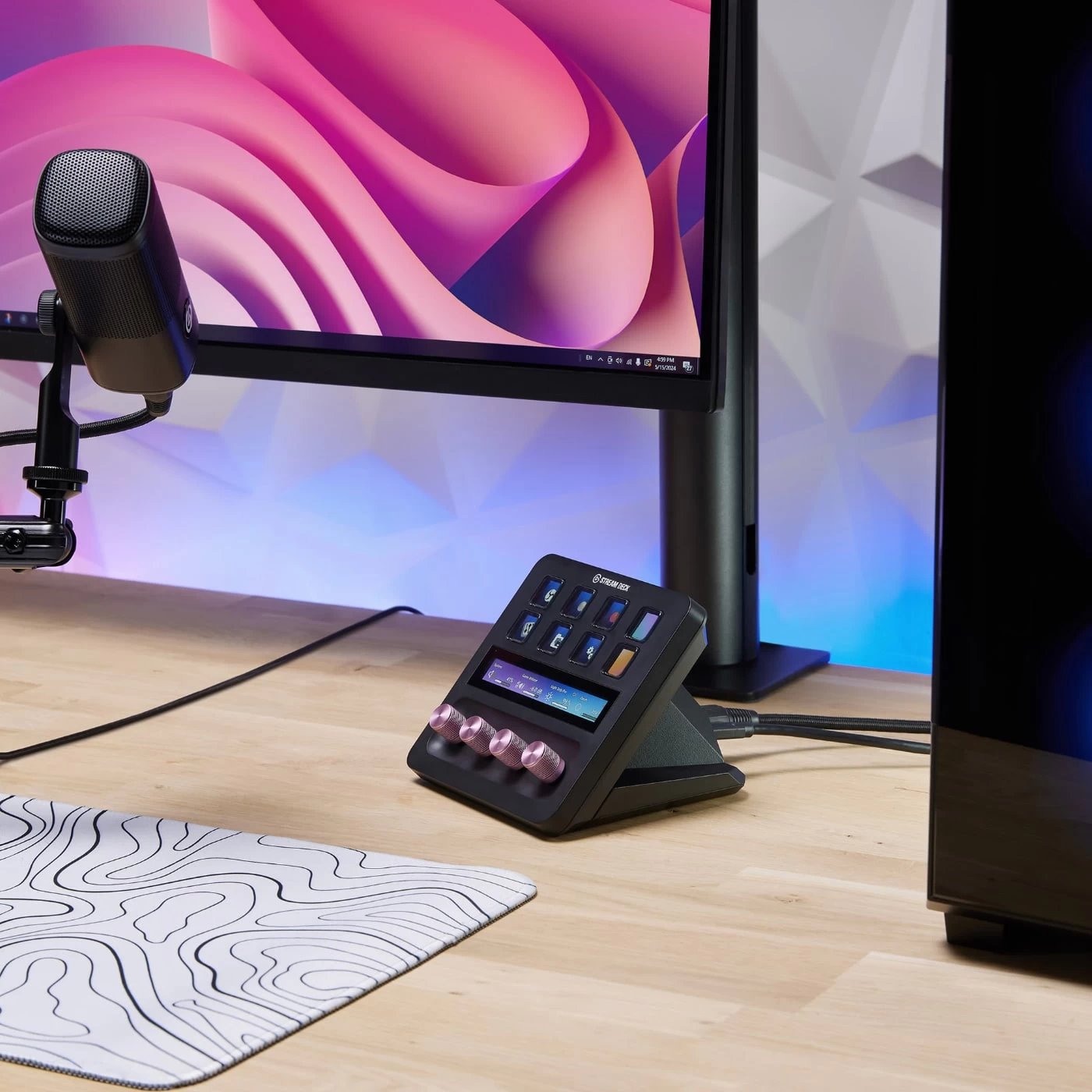

Elgato XLR Dock for Stream Deck+

The Elgato XLR Dock for Stream Deck+ is a Compact XLR Mic Interface to add a professional XLR microphone to your streaming capture. This audio interface enables you to connect a 3-pin XLR microphone via USB-C to your separately available Stream Deck+ and then link both the deck and XLR dock to your computer via a single USB-C cable, freeing up a USB-C port.

KEY FEATURES

• For Elgato Stream Deck+
• XLR Input to USB-C Output
• Customizable Audio Mixer
• 75 dB Gain, 48V Phantom Power, Clipguard
• 1-Cable Stream Deck+/XLR Dock Connection
• Fits Behind Stream Deck+ to Save Space
• Easy Installation with Screwdriver
• For macOS 13 or Windows 10 64-Bit/Later XLR with multiple audio sources, plus create two independent mixes

SPECIFICATIONS

Model	Elgato 10GBM9901
Channels of I/O	USB 3.0 / 3.1/3.2 Gen 1: 1 Input
Maximum Sampling Rate	48 kHz / 24-Bit
Number of Microphone Inputs	1
Analog Audio I/O	1x XLR 3-Pin Mic Input
Digital Audio I/O	none
Host Connection	USB-C
Power Requirements	DC Input
Phantom Power	48 V, Selectable On/Off
Frequency Response	20 Hz to 20 kHz
Maximum Input Level	10 V for 0 dBFS (with Clipguard)
Headphone Output Power	77 mW
Dynamic Range	100 dB (120 dB with Clipguard)
Dimensions	137 x 115 x 76 mm

INCLUDED BY DEFAULT

• Elgato XLR Dock for Stream Deck+
