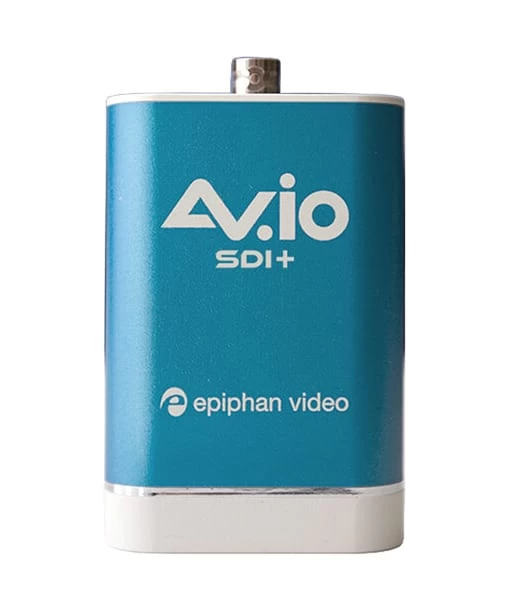

Epiphan AV.IO SDI+ To USB Video Capture

Epiphan AV.IO SDI+ to USB video capture

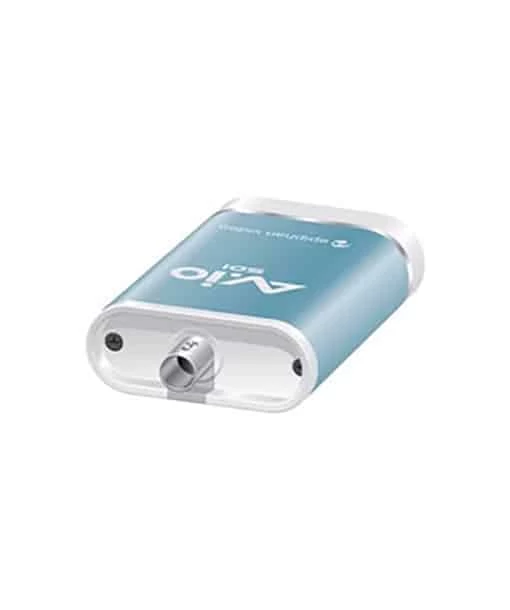

Take video and audio from BNC compatible cameras and audio mixers and capture via USB 3.0 connection using this AV.IO SDI+ USB Portable Capture Card from Epiphan. One BNC input and one 3.5mm input connect to the recording devices of your choice, while the USB Type-B output connects to your computer to deliver 1080p video to a compatible program.

The AV.IO SDI+ is compatible with Windows, macOS, and Linux operating systems as well as programs like Zoom and Microsoft teams. Its ultracompact size makes it easy to take on the go and its metal exterior ensures it remains durable for repeated use.

KEY FEATURES

• Compatible with Windows, macOS, and Linux systems
• Powered via USB Type-B
• Automatically adjust image based on the software you’re using, delivering superior quality even when swapping sources
• Compatible with any program that accepts USB as a video source like Zoom, Microsoft Teams, Wirecast and OBS
• High-quality audio capture via BNC source or 3.5mm input from a mixer or external source
• One LED light indicates power, readiness, and operation status

SPECIFICATIONS EPIPHAN SDI to USB video capture

System Connection	USB-B 3.0 / 3.1/3.2 Gen 1
Video Inputs	1 x BNC (3G-SDI) Female
Audio Inputs	1 x 1/8″ / 3.5 mm TRS Stereo Analog

Formats

Input Video Format	SDI (4:2:2 YUV) 1080p
Input Audio Format	LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Output Video Format	USB-B (4:2:2 YUV) WUXGA (1920 x 1200) up to 60 fps 1080p up to 60 fps WUXGA+ (1680 x 1050) up to 60 fps HD+ (1600 x 900) up to 60 fps UXGA (1600 x 1200) up to 60 fps WXGA+ (1440 x 900) up to 60 fps FWXGA (1366 x 768) up to 60 fps 1360 x 768 up to 60 fps 1280 x 960 up to 60 fps WXGA (1280 x 800) up to 60 fps 1280 x 720 (Non-Standard WXGA) up to 60 fps SXGA (1280 x 1024) up to 60 fps XGA+ (1152 x 864) up to 60 fps XGA (1024 x 768) up to 60 fps 1024 x 576 up to 60 fps 960 x 540 up to 60 fps 856 x 480 up to 60 fps SVGA (800 x 600) up to 60 fps 576i / 625 lines up to 60 fps 720 x 576 up to 60 fps 720 x 480 up to 60 fps VGA (640 x 480) up to 60 fps 640 x 360 up to 60 fps QVGA (320 x 240) up to 60 fps
Output Audio Format	Analog: 48 kHz / 16-Bit
Embedded Audio	SDI/USB

Standards

HDR Compatibility	No
OS Compatibility	Windows 7 or Later macOS 10.10 or Later Linux 3.5.0 or Later
Power Consumption	Device: 250 mA

General

Dimensions

89.92 x 59.94 x 23.11 mm



INCLUDED BY DEFAULT

• Epiphan AV.IO SDI+ USB Portable Capture Device
