Oorspronkelijke prijs was: 303,00 €.97,99 €Huidige prijs is: 97,99 €.
- Capture Single- / Dual-Link DVI Signals
- Capture VGA Video HDMI/SDI Audio/Video
- Full HD 1080p Capture at up to 60 fps
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

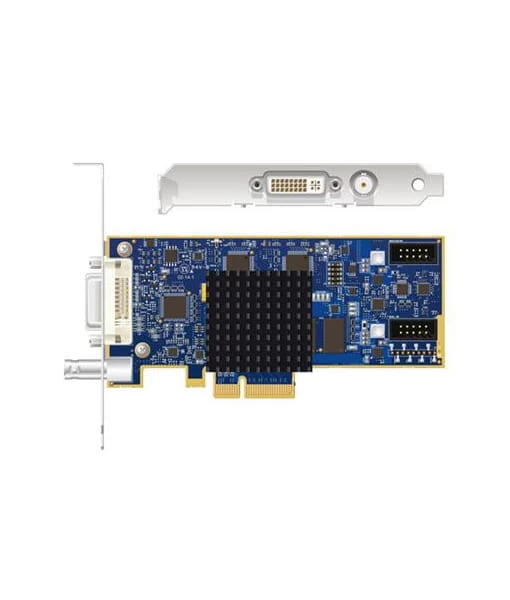

Epiphan DVI2PCIe Duo PCIe x4 Video Capture Card with SDI and Dual-Link DVI Inputs
The DVI2PCIe Duo PCIe x4 Video Capture Card from Epiphan can capture lossless video from dual-link and single-link DVI sources, and VGA, HDMI, and SDI video sources, as well as audio from SDI and unencrypted HDMI sources. The card supports various resolutions up to 2048 x 2048, with different frame rates supported for each. Full HD 1080p resolution can be captured at up to 60 fps, 2048 x 2048 at 20 fps, and 1024 x 768 at 85 fps.
The DVI2PCIe provides uncompressed dual-channel video to 3rd-party recording, streaming, conferencing, and video analysis software applications running on Windows, Mac OS, or Linux platforms. It is suitable for AV professionals who capture and record production-quality video directly from SDI and DVI. The DVI2PCIe Duo Video Capture Card features a low-profile design and comes with a low-profile bracket for installation in 2U cases.
KEY FEATURES
- Dual input PCIe capture card Designed to capture from digital and analog sources
- Built-in SDI input to capture video signals from 3G-SDI, HD-SDI, and SD-SDI sources and embedded audio from SDI sources
- Built-in DVI input to capture video signals from DVI, VGA, and HDMI sources and embedded audio from HDMI sources
- Frame rate is independent of the captured content; both slow and fast moving videos are captured at the same rate
- Captures and transfers every pixel of the frame without any compression
- Captures high-quality video and images from sources with SDI/DVI/VGA/HDMI video output
- Captures uncompressed video and audio from 3G-SDI, HD-SDI, and SD-SDI signals at Full HD resolution at 60 fps
- Supports 60 fps at Full HD resolution in 24-bit color (4:4:4) even when capturing from both DVI and SDI channels simultaneously
- Supports 2048 x 2048 resolution for DVI signals
- PCI Express 2.0; x4
- Supports multiple DVI2PCIe Duo cards in one system
- Supports third party applications that accept an external video source
SPECIFICATIONS EPIPHAN ESP0705 DVI2PCIe DUO
| Model | Epiphan ESP0705 |
| Product | Dual PCIe capture card |
| Connections | BNC, DVI |
| Input | BNC female (x1), DVI 24+5-pin female (x1) |
| Max. resolution @ 30Hz | 2048 x 2048 |
| Video signal | DVI, HDMI, SDI, VGA |
| Other | Digitale audio |
| Power | Bus powered |
INCLUDED BY DEFAULT
- DVI Cable
- SDI Cable
- DVI-to-VGA Cable
- HDMI-to-DVI Adapter

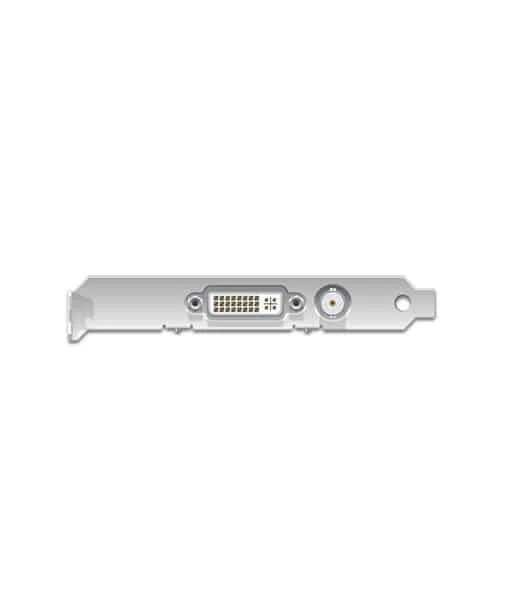

- Low-Profile Bracket
| Brand | Epiphan |
|---|---|
| MPN | ESP0705 |
| EAN | 8716065323368 |
