EVC320 3-Camera PTZ Live Streaming Kit | Blackmagic Design ATEM Mini Pro HDMI Video Switcher | EVKB-Mini PTZ Controller

The EVC320 4-Camera PTZ Live Streaming Kit is an all-in-one professional setup designed for seamless and dynamic live production. This powerful kit includes:

• 3x Everet EV320 PTZ Cameras: Equipped with 20x optical zoom and exceptional image quality, these cameras offer precise and fluid pan-tilt-zoom functionality, perfect for capturing every detail in your broadcasts.
• Blackmagic ATEM Mini Pro Video Switcher: Known for its reliable performance, the ATEM Mini Pro provides easy multi-camera control, built-in streaming, and recording features, making your live production smooth and efficient.
• Everet EVKB Mini PTZ Controller: This compact yet powerful controller allows for intuitive and flexible control over your PTZ cameras, ensuring effortless management of camera angles and zoom during live events.

Ideal for streaming houses of worship, corporate events, webinars, or educational content, the EVC320 Kit gives you everything you need to deliver professional-quality live streams with ease.

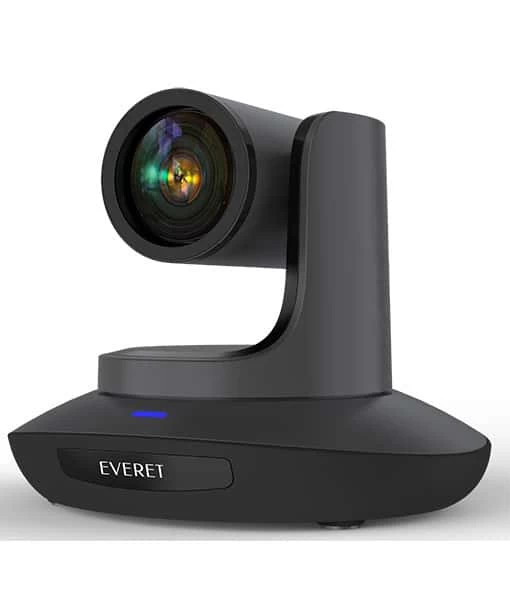

Everet EVC320 – Full HD PTZ Camera 20x

The EVERET EVC320 is a FHD video camera with pan, tilt and zoom functions. With the high quality 20x optical zoom lens and 60.5° diagonal field of view it is ideal for live streaming. Setup takes just a few minutes thanks to the simplicity of plug-and-play and easy setup with the OSD menu.

The EVC320 offers PoE and multiple video output options including USB2.0, USB3.0, HDMI and IP streaming. In addition to HDMI and USB output, the camera supports H.264/H.265 compression and IP Streaming using RTSP, RTMP, and HTTP protocols.

KEY FEATURES EVC320

• 1920x1080p 60fps full HD PTZ Camera
• HDMI, IP and USB3.0 simultaneous output
• 20x optical zoom
• Power over Ethernet (PoE) support, PTZ control and power supply with one CAT5 cable

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher

The ATEM Mini Pro from Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet or broadcast applications from gaming consoles, corporate computer streams, or HD cameras. Along with the software control update, the Mini Pro builds on the Mini with features such as live stream data rate and status information, a built-in hardware encoder, simultaneous recording to USB drives, drive hot swapping with the Blackmagic MultiDock, added record and stream buttons, stream caching, a timecode generator, program preview multiview and tally support.

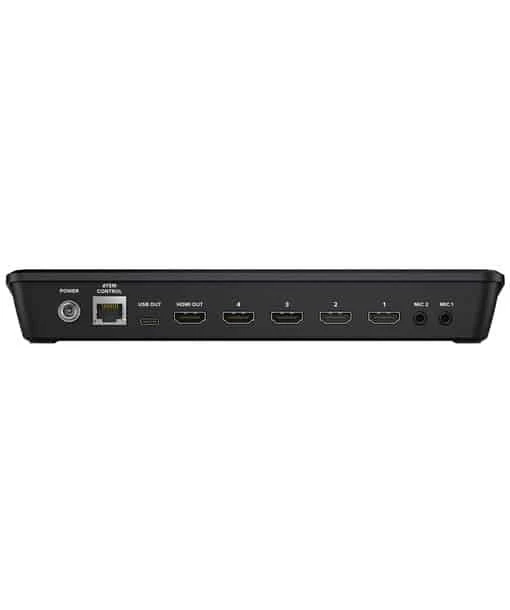

The ATEM Mini Pro retains the same rear-panel setup on which four HDMI inputs are available on the rear of the chassis and they input up to 1080p HD video. There is also an HDMI output for a projector or multiview monitoring, a USB Type-C output as for recording HD video to a computer, and an RJ45 10/100/1000 Ethernet port for direct live streaming as well as system management, remote control, and upgrades. You can adjust frame rate depending on the quality of your stream, and there is no need for additional streaming software because the Pro includes a built-in hardware encoder.

The updated ATEM Software Control Panel is used for control and configuration of the ATEM Mini Pro via USB or Ethernet, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. The built-in color control panel has the same configuration of DaVinci Resolve, eliminating any learning curve. Advanced features include the ability for engineers to upload an XML configuration file to make it easier to change all your settings at once.

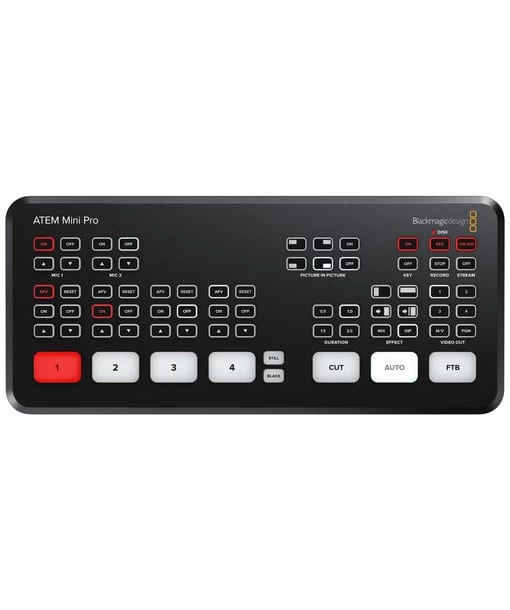

The control surface features the same easy-to-view, backlit control buttons to enable selecting camera inputs, controlling transitions, keyers, settings, and the DVE. The ATEM Mini Pro adds several buttons to the right side such as a quick record button, which allows you to instantly record your live stream to the connected USB source, or by holding it down, you can hot-swap drives when using the Blackmagic MultiDock if you need to quickly get down to editing. On Air and Stream buttons have also been added to instantly start and stop your stream once it is set up in software control. The added Video Out buttons on the right side allow you to select a program preview for each source, so you can make sure each source is ready to go for air.

The ATEM Mini Pro features the same upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats.

KEY FEATURES ATEM MINI PRO

• Stream video up to 1080p HD
• 4 x HDMI-In, 2x Audio In, 1x HDMI Out
• Quick stream, on-air and record buttons
• Hardware encoder so there’s no need for additional streaming software
• Software multiview with program previews, graphics, record status, on air status, audio meters

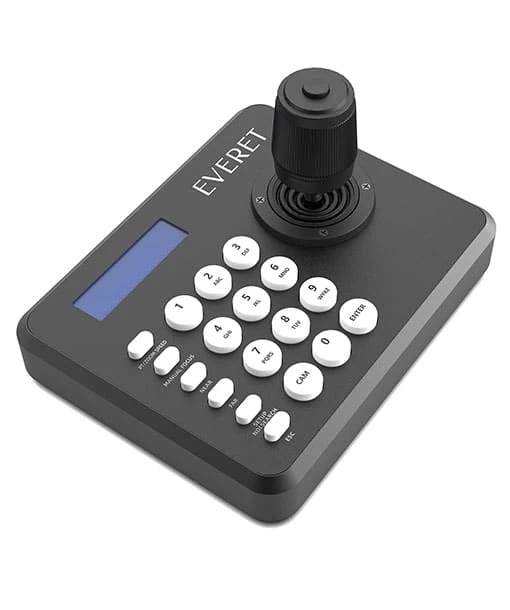

Everet EVKB-Mini Universal PTZ camera controller

The Everet NDI Mini PTZ Controller is the ultimate tool designed to make your PTZ camera operation seamless, efficient, and versatile. With its compact design and comprehensive range of features, this controller is a game-changer in the world of PTZ cameras.

KEY FEATUREs EVKB-MINI

• Small but Mighty: Compact design to fit any workspace!
• NDI|HX, IP & Serial Communication
• VISCA/VISCA-over-IP/Pelco-P & D Support
• POE Support, One cable for both data and power

INCLUDED BY DEFAULT

• Blackmagic Design ATEM Mini Pro
• 3x Everet EVC320 FHD PTZ Camera
• EVERET EVKB-Mini Joystick PTZ Controller
• 12 Months Premium Technical Support
