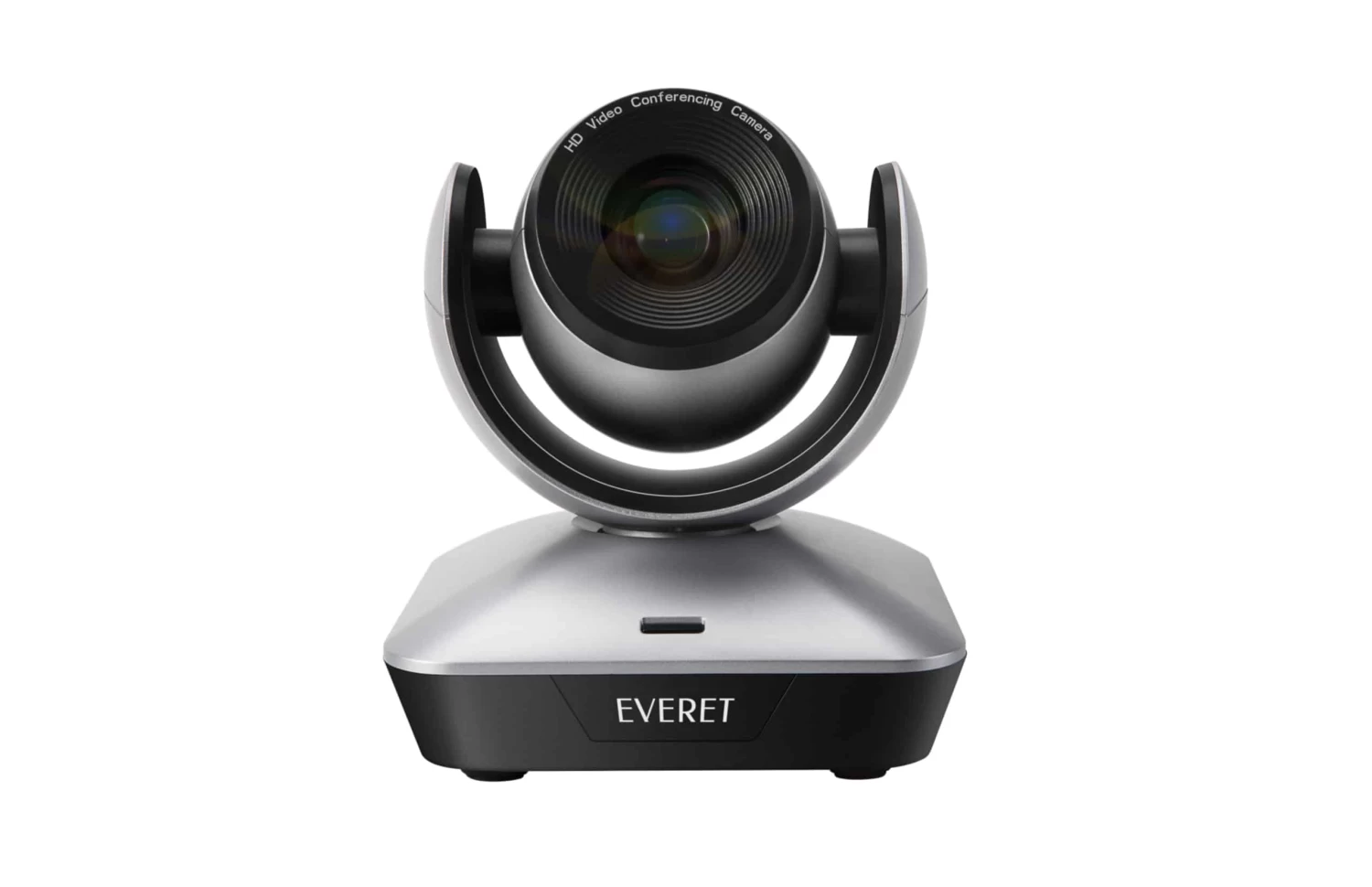

EVERET EVC203 – FHD USB 2.0 PTZ Webcam 3x Optical Zoom



EVERET EVC203 – FHD USB 2.0 PTZ Webcam 3x Optical Zoom

The EVERET EVC203 is designed for advanced video conferencing with a wide 108° diagonal field of view. The high quality USB 2.0 conference room webcam delivers FHD 1080P30 with 3x Optical Zoom and  ultra-wide 85° diagonal field of view. Ideal for video conferencing in professional meeting spaces even at long distances in small to medium sized rooms.

Affordable Video Conferencing

Designed for video conferencing, the Everet EVC203 is ideal for small to medium sized conference rooms using a Mac or PC computer with web-based video conferencing / live streaming software.

Universal and Compatible

All Everet ptz cameras have been designed for plug and play compatibility with web-based video conferencing software such as: Teams, Zoom, Skype, GoToMeeting or Webex. Seamless integration even with live streaming applications such as Facebook, Youtube Live and Vimeo.

KEY FEATURES

• Advanced industrial level ISP, SONY 1/2.8 inch 5MP image sensor, with 3x optical zoom, to provide ultra crystal and smooth video experience
• 1920x1080p 30fps HD resolution
• 85 degree ultra wide angle of viewing
• Compact & stable mechanical design, to ensure the quite, smooth, accurate pan tilt zoom movement
• USB2.0 output
• Support FECC (Far End Camera Control)
• Standard Sony Visca and UVC1.5 protocol, RS232 control
• Image flip function support upside-down installation
• 3 year warranty
• IR remote control
• Tripod mount option
• Compatible with Zoom, Teams, Starleaf, Google Hangouts Meet, BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing applications that support USB cameras

SPECIFICATIONS EVERET EVC203

Camera
Model	EVC203
Image Sensor	1/2.8inch high quality, 5 MP CMOS sensor
Video System	1920×1080、1600×896、1280×1024、1280×720、1280×960、1024×768、1024×576、960×540、848×480、800×600、800×448、720×576、704×576、640×480、640×360、480×272、424×240、352×288、320×240、320×180、176×144、160×120、
Frame Rate	30FPS/25FPS/20FPS/15FPS/10FPS/5FPS
Video Format	MJPG/YUY2/H.264/H.265
Zoom	3x optical zoom & 4xdigital zoom
Focal Length	F=1.7~3.0mm
Angle of Viewing	85°
S/N Rate	>50dB
Minimum Lux	0.1 lux
White Balance	Auto/Manual/Indoor/Outdoor/Push/Sodium/Fluorescent
Focus Distance	Wide: 3.35±5%; Tele:10.05±5%mm
Iris	Auto/Manual
Electronic Shutter	Auto/Manual
BLC	Auto/Manual
Mechanism
Pan Rotation Angle	-170° ~ +170°
Tilt Rotation Angle	-30° ~ +90°
Pan Rotation Speed	8°-35°/s
Tilt Rotation Speed	4°-20°/s
Preset	128 via RS232, 10 via remote
Control	RS232/USB/remote
Video Port	USB2.0 type B
Input Voltage	DC12V, 1A
Camera Size	148mm×132mm×161mm
Package Size	28x24x24cm
Accessories	Camera, Remote, RS232 cable, USB2.0 cable, Power adapter

INCLUDED BY DEFAULT

• Everet EVC203 USB2.0 PTZ conference webcam
• USB cable
• RS232 cable
• Remote Control
• Power Adapter
