Everet EVC312 – Full HD HDMI USB PTZ Camera 12x Optical Zoom

Everet EVC312 – Full HD HDMI USB PTZ Camera 12x Optical Zoom

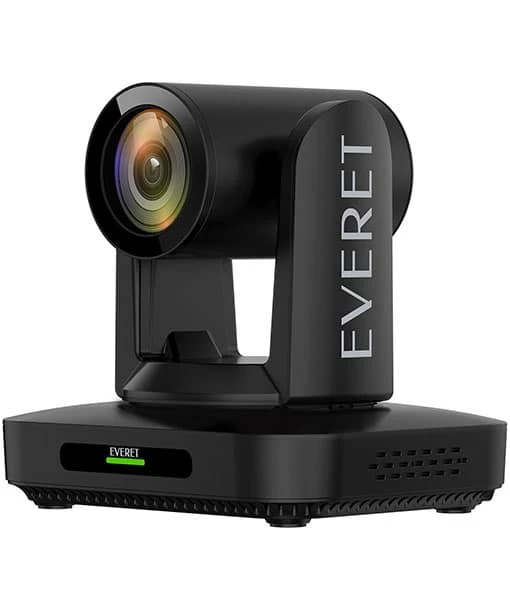

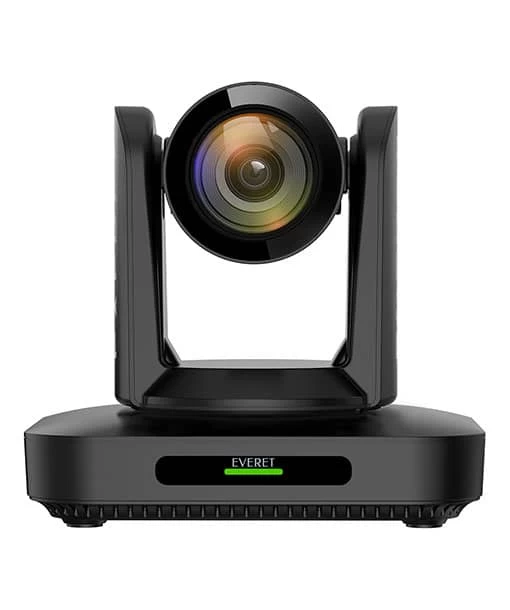

The EVERET EVC312

The EVERET EVC312 is a Full HD HDMI USB PTZ conference camera with pan, tilt and zoom functions. With the high quality 12x optical zoom lens and 72.5° diagonal field of view it is ideal for live streaming, conferencing and education. Setup takes just a few minutes thanks to the simplicity of plug-and-play and easy setup with the OSD menu.

The PTZ conference camera offers PoE and multiple video output options including USB2.0, USB3.0, HDMI and IP streaming. In addition to HDMI and USB output, the camera supports H.264/H.265 compression and IP Streaming using RTSP, RTMP, SRT and HTTP protocols.

You are able to control the movement and position of the lens from a remote location using a remote controller, joystick-controller, browser or software application. You can control the PTZ functions using IP, RS-485, or RS-232 with separately available controllers, or you can utilize the included IR remote controller. It also supports UVC communication over USB for video control using a computer.

The EVC312 works seamlessly with conference software like Teams, Zoom, Google Hangouts and Webex or live streaming software like vMix, OBS and Wirecast.

KEY FEATURES

• Panasonic 1/2.8 inch 2.4 MP CMOS sensor
• 12x Optical Zoom
• 1080p60 full HD video over HDMI and USB3.0
• Smooth pan-tilt-zoom
• IP, SRT, HDMI and USB3.0 simultaneous output
• Power over Ethernet (PoE) support: get video, control and power supply with one CAT5/6 cable
• Supplied with functional IR remote controller
• Standard IP Visca, Serial Visca, Pelco-P/D control protocol; IP Visca over TCP/UDP
• Flexible mounting options with image flip function, support upside-down installation
• OSD menu, IP address, streaming resolution and size can be set in OSD menu
• Available in Black and White colors
• 3-Year Warranty
• Webbased UI for easy setup, preview and control
• One-click firmware upgrades

Specifications EVC312 Full HD PTZ Camera

Model number	EVC312
Sensor	1/2.8 inch, 5mega pixel high quality CMOS sensor
Video Format	HDMI 1.4	IP	USB3.0
	1080p60/50/30/25 1080i60/50 720p60/50/30/25	Main Stream: 1920*1080p30 1280*720p30 Sub Stream: 1280*720p30 1024*576p30 640*360p30	USB3.0: 1080p60/50/30/25720p60/50/30/251024*576p30USB2.0：1024*576p30960*540p30640*360p30352*288p30
Video Interface	HDMI (V1.4), RJ45 (IP), SRT, USB3.0, USB2.0
Optical Zoom	12x
Horizontal Angle	72.50°(Far) – 6.48°(Near)
Vertical Angle	42.72°(Far) – 3.66°(Near)
Aperture	F1.6 – 2.8
Focal length	f 3.9 ～ 46.8mm
Rotation Angle	Pan: -170° ~ +170°;   Tilt: -30° ~ +90°
Rotation Speed	Pan: 0°~120°/s ;         Tilt: 0°~80°/s
Preset	10 via remote controller; 128 via serial port; preset precision:0.1°
Control Port	RS232/RS485/RJ45 Visca over IP/UVC
Network Speed	1000M
Video Encoding	H.264 / H.265
Bit Rate Control	Variable Bit Rate, Constant Bit Rate
Video Bit Rate	1024Kbps~16384Kbps
Protocols	TCP/IP, HTTP, RTSP, DHCP ,SRT, RTMP, Onvif(2.4), UVC Visca over IP(TCP&UDP), HTML5, Visca, Pelco P, Pelco D
POE	Supported PoE+ recommended (IEEE802.3at)
Daisy Chain	Support RS232 serial daisy chain
Minimum Lux	0.1 lux
White Balance	Auto/Indoor/Outdoor/Manual/One Push/ATW
Exposure	Auto/Manual/Shutter Priority /Iris Priority/Bright
Focus	Auto / Manual
Iris	Auto / Manual
Electric Shutter	Auto / Manual
Gamma	Supported
WDR	Supported
BLC	Supported
2D/3D Noise Red	Supported
Anti Flicker	OFF/50Hz/60Hz
Pan Tilt Flip	Supported
Input Voltage	DC12V/9W PoE+ recommended (IEEE802.3at)
Dimensions	220mm×190mm×173mm
Net Weight	1.25KG
Color	Grey
EAN	8720387387175

INCLUDED BY DEFAULT

• EVC312 PTZ Camera
• Remote Control
• Power Adapter
• Power Cable
• RS232 Cable
• USB 3.0 Cable
