Everet EVC320 – Full HD USB PTZ Camera 20x

Everet EVC320 – Full HD USB PTZ Camera 20x

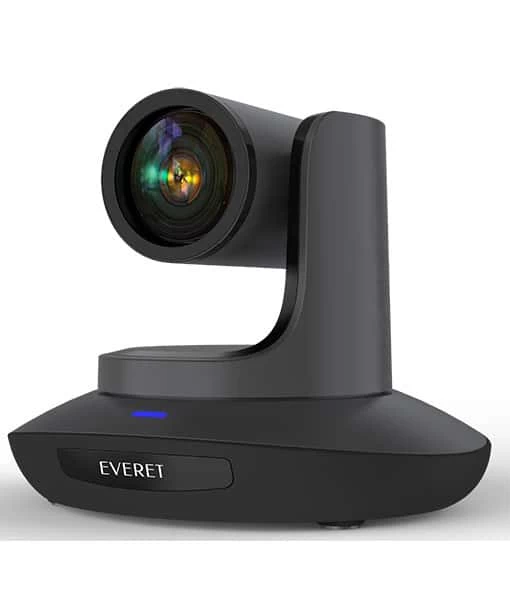

The EVERET EVC320 is an affordable FHD video camera with pan, tilt and zoom functions. With the high quality 20x optical zoom lens and 60.5° diagonal field of view it is ideal for live streaming, conferencing and education. Setup takes just a few minutes thanks to the simplicity of plug-and-play and easy setup with the OSD menu.

The EVC320 offers PoE and multiple video output options including USB2.0, USB3.0, HDMI and IP streaming. In addition to HDMI and USB output, the camera supports H.264/H.265 compression and IP Streaming using RTSP, RTMP, and HTTP protocols.

You are able to control the movement and position of the lens from a remote location using a remote controller, joystick-controller, browser or software application. You can control the PTZ functions using IP, RS-485, or RS-232 with separately available controllers, or you can utilize the included IR remote controller. It also supports UVC communication over USB for video control using a computer.

The EVC320 works seamlessly with conference software like Teams, Zoom, Google Hangouts and Webex or live streaming software like vMix, OBS and Wirecast.

KEY FEATURES

• Premium 1/2.8 inch high quality 5MP sensor, with 20x optical zoom
• 1920x1080p 60fps full HD video
• 60.5 degree field of view
• IP, HDMI and USB3.0 output simultaneously
• 1080p60 full HD video over HDMI and USB3.0
• High quality 1080p video over IP with support for H.264, H.265 encoding
• Power over Ethernet (PoE) support, get video, control and power supply with one CAT5 cable
• WDR, 3D Noise Reduction feature
• Standard IP Visca, Serial Visca, Pelco-P/D control protocol; IP Visca over TCP/UDP
• Supplied with functional IR remote controller, IP address setting via OSD menu
• Flexible mounting options; tripod-, wall- and ceiling-mount with image flip function
• 3 year warranty
• UVC control via USB port plug-and-play compatible with Zoom, Teams, Starleaf, Google Hangouts Meet, BlueJeans, BroadSoft, GoToMeeting, Vidyo and other video conferencing applications that support USB cameras

Specifications EVC320 Full HD PTZ Camera

Model number	EVC320
Sensor	1/2.8 inch, 5mega pixel high quality CMOS sensor
Video Format	HDMI 1.4	IP	USB3.0
	1080p60/50/30/25 1080i60/50 720p60/50/30/25	Main Stream: 1920*1080p30 1280*720p30 Sub Stream: 1280*720p30 1024*576p30 640*360p30	USB3.0: 1080p60/50/30/25720p60/50/30/251024*576p30USB2.0：1024*576p30960*540p30640*360p30352*288p30

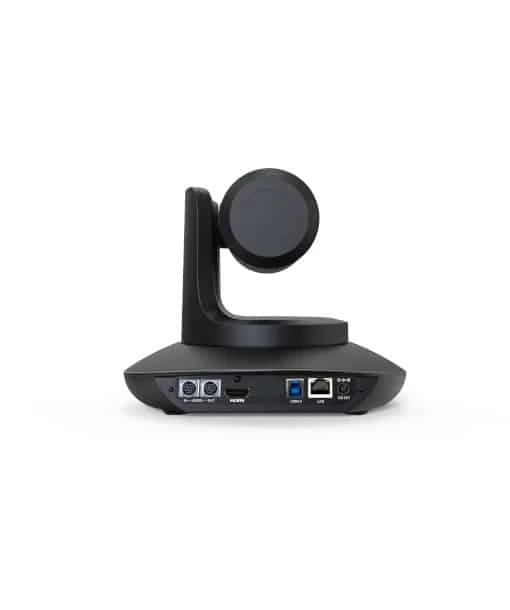

Video Interface	HDMI (V1.4), RJ45 (IP), USB3.0, USB2.0
Optical Zoom	20x
Horizontal Angle	60.50°(Far) – 3.2°(Near)
Vertical Angle	32.2°(Far) – 1.8°(Near)
Aperture	F1.5 – 3
Focal length	f 5.2 ～ 98mm
Rotation Angle	Pan: -170° ~ +170°;   Tilt: -30° ~ +90°
Rotation Speed	Pan: 0°~120°/s ;         Tilt: 0°~80°/s
Preset	10 via remote controller; 128 via serial port; preset precision:0.1°
Control Port	RS232/RS485/RJ45 Visca over IP/UVC
Network Speed	1000M
Video Encoding	H.264 / H.265
Bit Rate Control	Variable Bit Rate, Constant Bit Rate
Video Bit Rate	1024Kbps~16384Kbps
Protocols	TCP/IP, HTTP, RTSP, DHCP ,RTMP, Onvif(2.4), UVC Visca over IP(TCP&UDP), HTML5, Visca, Pelco P, Pelco D
POE	Supported PoE+ recommended (IEEE802.3at)
Daisy Chain	Support RS232 serial daisy chain
Minimum Lux	0.1 lux
White Balance	Auto/Indoor/Outdoor/Manual/One Push/ATW
Exposure	Auto/Manual/Shutter Priority /Iris Priority/Bright
Focus	Auto / Manual
Iris	Auto / Manual
Electric Shutter	Auto / Manual
Gamma	Supported
WDR	Supported
BLC	Supported
2D/3D Noise Red	Supported
Anti Flicker	OFF/50Hz/60Hz
Pan Tilt Flip	Supported
Input Voltage	DC12V/9W PoE+ recommended (IEEE802.3at)
Dimensions	220mm×190mm×173mm
Net Weight	1.25KG
Color	Grey
EAN	8720387387182

INCLUDED BY DEFAULT

• EVC320 PTZ Camera
• Remote Control
• Power Adapter
• Power Cable
• RS232 Cable
• USB 3.0 Cable
