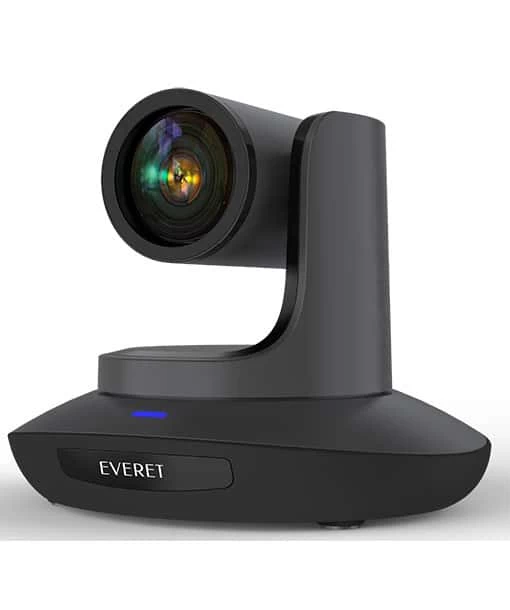

EVERET EVC405 – 4K UHD USB3.0 Video Conferencing PTZ Camera

Everet EVC405 4K UHD USB3.0 Video Conferencing PTZ Camera

The EVERET EVC405 is a premium video conference camera with Ultra-HD imaging system, offering powerfull 4K super speed USB3.0 output with brilliant sharp 5x optical zoom and 85° diagonal field of view. Ideal for high-end video conferencing in professional meeting spaces of all sizes.

Advanced Video Conferencing

Designed for video conferencing with superb 4K quality, the Everet EVC405 is ideal for small to medium sized conference rooms using a Mac or PC computer with web-based video conferencing / live streaming software.

Universal and Compatible

All Everet ptz cameras have been designed for plug and play compatibility with web-based video conferencing software such as: Teams, Zoom, Skype, GoToMeeting or Webex. Seamless integration even with live streaming applications such as Facebook, Youtube Live and Vimeo.

KEY FEATURES

• Professional 1/2.5 inch 8MP Sony sensor and high quality 4K optical lens to provide brilliant sharp video and outstanding colours
• 5x optical zoom and 3x digital zoom, wide 85 degree field of view
• 4K (3840×2160@30 video resolution) output over USB
• Plug and Play for PC, Mac and Chrome devices
• UVC plug-and-play compatible with virtually any video conferencing application
• WDR (wide dynamic range) and 3D noise reduction
• Whisper quiet PTZ design
• Adaptive Pan, Tilt and Zoom (adjusts speed with the amount of zoom)
• Fast and precise focus while zooming
• Standard Serial VISCA, UVC, PELCO-P/D control protocol
• 128 presets
• Support image flip function, camera can be installed up or upside down
• Matte Black Colour
• 3 year warranty
• IR remote control
• Tripod mount option
• Compatible with Zoom, Teams, Starleaf, Google Hangouts Meet, BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing applications that support USB cameras

SPECIFICATIONS EVERET EVC405

Model Number	EVC405
Sensor	Sony 1/2.5”, 8.5MP CMOS Sensor
Video Format (USB)	USB3.0		USB2.0
	MJPG	YUV	MJPG	YUV
	3840*2160P30/25/152560*1440P30/25/15 1080P30/25/15; 720P30/25/15; 160*120P30/25/15; 176*144P30/25/15; 320*240P30/25/15; 352*288P30/25/15; 640*480P30/25/15; 1600*896P30/25/15; 1024*576P30/25/15; 960*540P30/25/15; 848*480P30/25/15; 800*600P30/25/15; 800*448P30/25/15; 640*360P30/25/15; 480*270P30/25/15; 320*180P30/25/15;	1080P30/25/15;720P30/25/15; 160*120P30/25/15; 176*144P30/25/15; 320*240P30/25/15; 352*288P30/25/15; 640*480P30/25/15; 1600*896P30/25/15; 1024*576P30/25/15; 960*540P30/25/15; 848*480P30/25/15; 800*600P30/25/15; 800*448P30/25/15; 640*360P30/25/15; 480*270P30/25/15; 320*180P30/25/15;	3840*2160P30/25/152560*1440P30/25/15 1080P30/25/15; 720P30/25/15; 160*120P30/25/15; 176*144P30/25/15; 320*240P30/25/15; 352*288P30/25/15; 640*480P30/25/15; 1600*896P30/25/15; 1024*576P30/25/15; 960*540P30/25/15; 848*480P30/25/15; 800*600P30/25/15; 800*448P30/25/15; 640*360P30/25/15; 480*270P30/25/15; 320*180P30/25/15;	1080P5;720P15/5; 160*120P30/25/15; 176*144P30/25/15; 320*240P30/25/15; 352*288P30/25/15; 640*480P30/25/15; 1600*896P5; 1024*576P25/15; 960*540P30/25/15; 848*480P30/25/15; 800*600P30/25/15; 800*448P30/25/15; 640*360P30/25/15; 480*270P30/25/15; 320*180P30/25/15;
Video Format (RJ45)	Main stream		Sub Stream
	not supported		not supported
Zoom	15x lossless zoom
FOV	（Ultra Wide) 85°（Tele）26.5
F.no.	Wide：2              Tele ：2.8
Focal Length	f＝2.8(Near)~14mm(Far)
Min. Focus Distance	Wide：0.3m               Tele：1.5m
Preset	IR Remote: 10 presets; Serial port: 128 presets. Preset accuracy: 0.1°
Rotation Angle	Pan: -170° ~ +170°;      Tilt: -30° ~ +90°
Rotation  Speed	Pan: -170° ~ +170°;      Tilt: -30° ~ +90°
Control Port	USB3.0/RS232 / RS485/RJ45
Video Port	RJ45/USB3.0/USB2.0
Network Speed	1000M
Noise Reduction	2D&3D
SNR	>50dB
Minimum LUX	0.1 lux
White Balance	Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/
Anti Flicker	50Hz/60Hz/OFF
D/N Mode	Supported
Gamma	Supported
Mirror Image	Supported
Pan/Tilt Flip	Supported
Iris	Auto / Manual
Electric Shutter	Auto / Manual
BLC	Auto / Manual
Focus	Auto / Manual
Video Encoding	not supported
Bit Rate Control	Variable Bit Rate, Constant Bit Rate
Video Bit Rate	1024Kbps~20480Kbps
Protocols	Serial VISCA, PELCO P/D protocol UVC1.5 protocol, camera works with broad range of video conferencing software and hardware.
PoE	Not Supported
Input Voltage	DC12V, 2A
Dimension（W x H x W）	220mm×173mm×117mm
Net Weight	1.25KG（2.8LBS）

INCLUDED BY DEFAULT

• Everet EVC405 4K USB3.0 PTZ camera
• USB3.0 cable
• RS232 cable
• Remote Control
• Power Adapter
