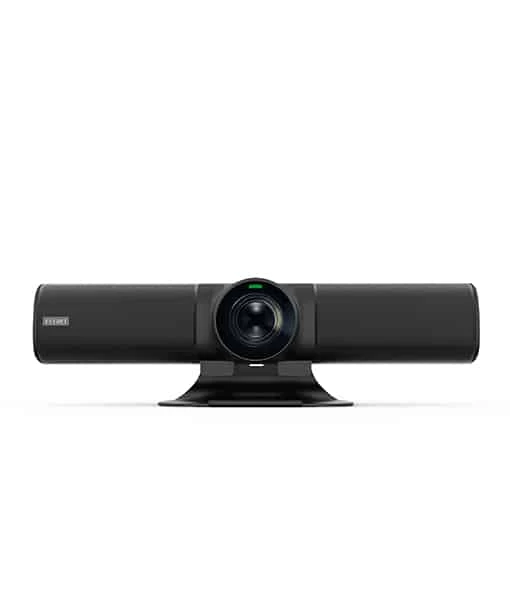

EVERET EVC410 All-in-one Huddle Room Camera

The EVERET EVC410 is a professional all-in-one conference camera with auto framing, soundbar, beamforming microphone array and ultra-wide lens designed for huddle rooms and small meeting rooms.

Designed for Huddle Rooms and small meeting rooms, the EVC410 ensures with auto framing that every participant in the room is part of the meeting. Featuring a full range soundbar speaker system for outstanding audio and 120° ultra-wide high quality video also in low or bright light conditions thanks to wide dynamic range (WDR) technology through dynamic treatment of light. The build-in microphone array with 4 beamforming elements will pick up voices, while leveling louder and softer voices and supress background noise.

Versatile Mounting

The EVC410 compact and flexible design is great for Huddle Room and small meeting room setups. With the included versatile mount the camera can be mounted on the display like a sound bar reducing cabling, directly on the wall or on other surfaces.

See Everyone’s Face with Genius Framing

The EVC410 All-in-one 4K video conference camera automatically adjusts camera position and zoom smoothly and responsively to find and frame everyone in the meeting room.

Any Platform

The USB-powered EVC410 works on all collaboration platforms like Microsoft Teams, Zoom, and Google Meet. The built-in standard UVC 1.0/1.5 protocol is compatible with most VC applications that support USB cameras.

KEY FEATURES

• Ultra crystal video quality with advanced AI to support auto framing of participants at meeting
• USB2.0 YUY2/NV12/MJPG/H.264/H.265 video format, works with Windows, MAC OS, Android, Linux OS
• Type-C port output
• 1/2.8” 8.42 MP Sony sensor, high quality optical full glass lens
• 3840×2160@30 UHD resolution
• Build-in Sound Bar
• WDR, 3DNR, Mirror, Flip and Anti-flicker features
• 4x digital zoom, 120 degree view angle without distortion
• Built-in microphone array with 4 omni directional microphones, pick up distance 5m
• Single USB cable for video output, camera control and power supply
• Image flip for upside down installation
• Anti Flicker feature
• UVC control via USB port with virtually any video conferencing application
• PoE
• Works with Microsoft Teams, Zoom Rooms and Google Meet
• Remote control for menu, ePTZ functions, Presets and Auto framing on/off/trigger
• Versatile mount
• 3 year warranty

SPECIFICATIONS EVERET EVC410 ALL-IN-ONE HUDDLE ROOM CAMERA

Model	EVC410
Sensor	1/2.8 inch high quality, 8.42 megapixel SONY CMOS sensor
Video Format	YUY2, NV12: 1280*720@15; 1024*576@20; 640*480@30MJPG: 3840*2160@30; 2560*1440@30; 1920*1080@30; 1280*720@30; 1024*576@30; 640*[email protected], H.265: 3840*2160@20; 2560*1440@30; 1920*1080@30; 1280*720@30; 1024*576@30; 640*480@30
Digital Zoom	4x
FOV	120°
Sensor Resolution	8.42 megapixel
Control Port	USB2.0 (UVC/UAC)
Video Port	Type-C (USB2.0)
S/N Ratio	>50dB
Focal Length	F=2.20mm
Minimum Lux	0.1 lux
White Balance	Auto/Manual
Iris	F 2.2
Anti-Flicker	50HZ/60HZ/OFF
WDR	Supported
Edge Enhancement	Supported
Digital Noise Reduction	2D&3D
Image Flip	Supported
EPTZ	Supported
Auto Frame	Supported
Backlight Compensation	Supported
Voice Pickup Distance	3~5meters
USB Audio	Supported
Microphone	Omnidirectional microphone (100~16KHz)
Sensitivity	-26±2 dB RL=2.2 KΩ Vs=2.0 V
Input Voltage	DC+12V
Speaker	4Ω/8W 100-24KHz  2inch Anti-magnetic speaker
RJ45	POE (IEEE802.3af)
Dimension(L × W × H)	395mm × 113mm × 112mm
Net Weight	1kg (2.2LB)

INCLUDED BY DEFAULT

• Everet EVC410 All-in-one Conferencecam
• Mounting Kit
• Power Cable
• USB-C cable
• Remote Control
