Everet EVKB200N NDI / IP & SERIAL PTZ Camera Controller

Everet EVKB200N NDI / IP & SERIAL PTZ Camera Controller

With a dedicated NDI PTZ camera controller, robotic camera operators will have more control over camera adjustments, presets and smoother camera movements via a joystick, control buttons and shortcut channels.

The Everet EVKB200N is a professional NDI|HX Camera Controller with PoE for PTZ cameras. Fully compatible to use different protocols to control camera simultaneously with NDI/VISCA over IP/VISCA/ONVIF/IP.

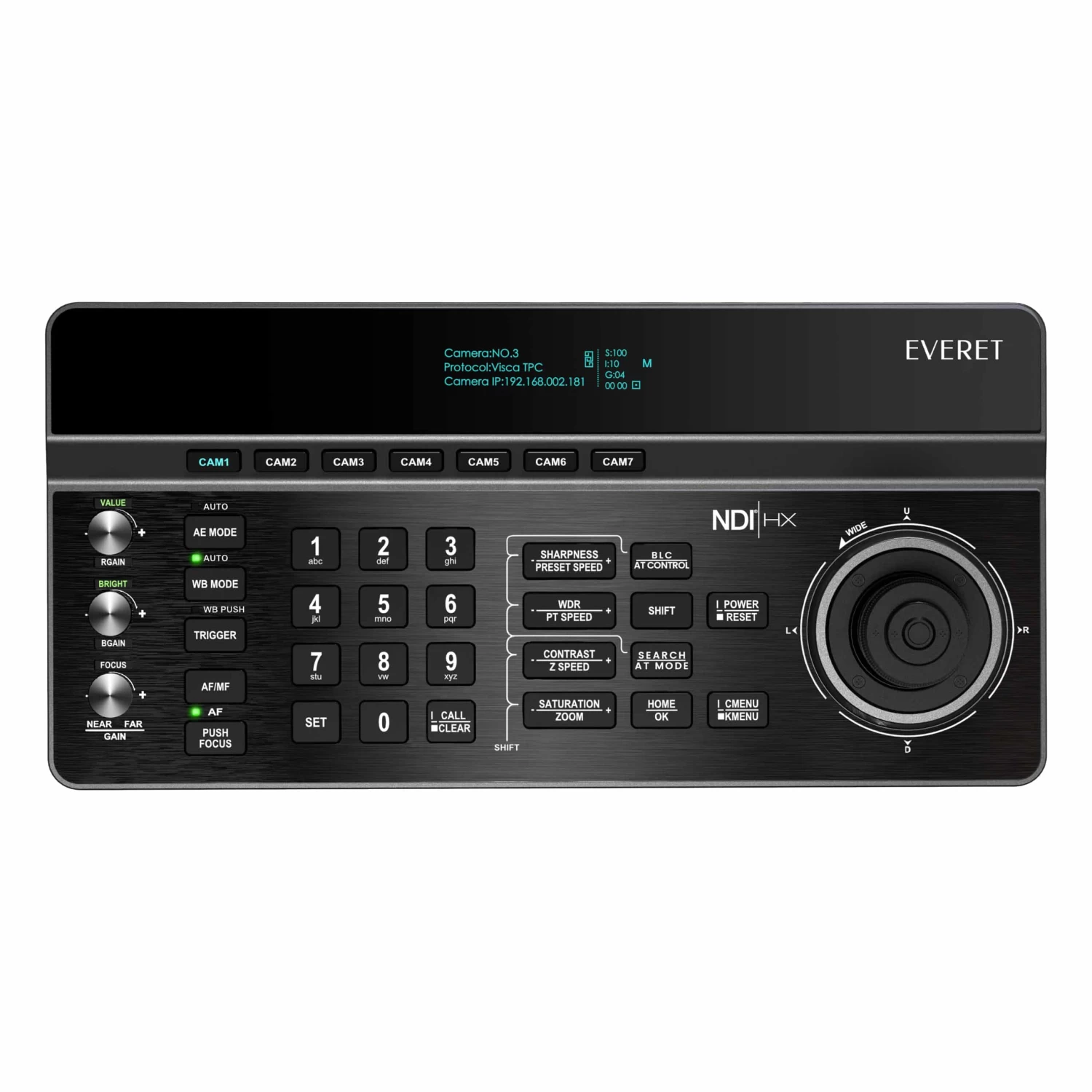

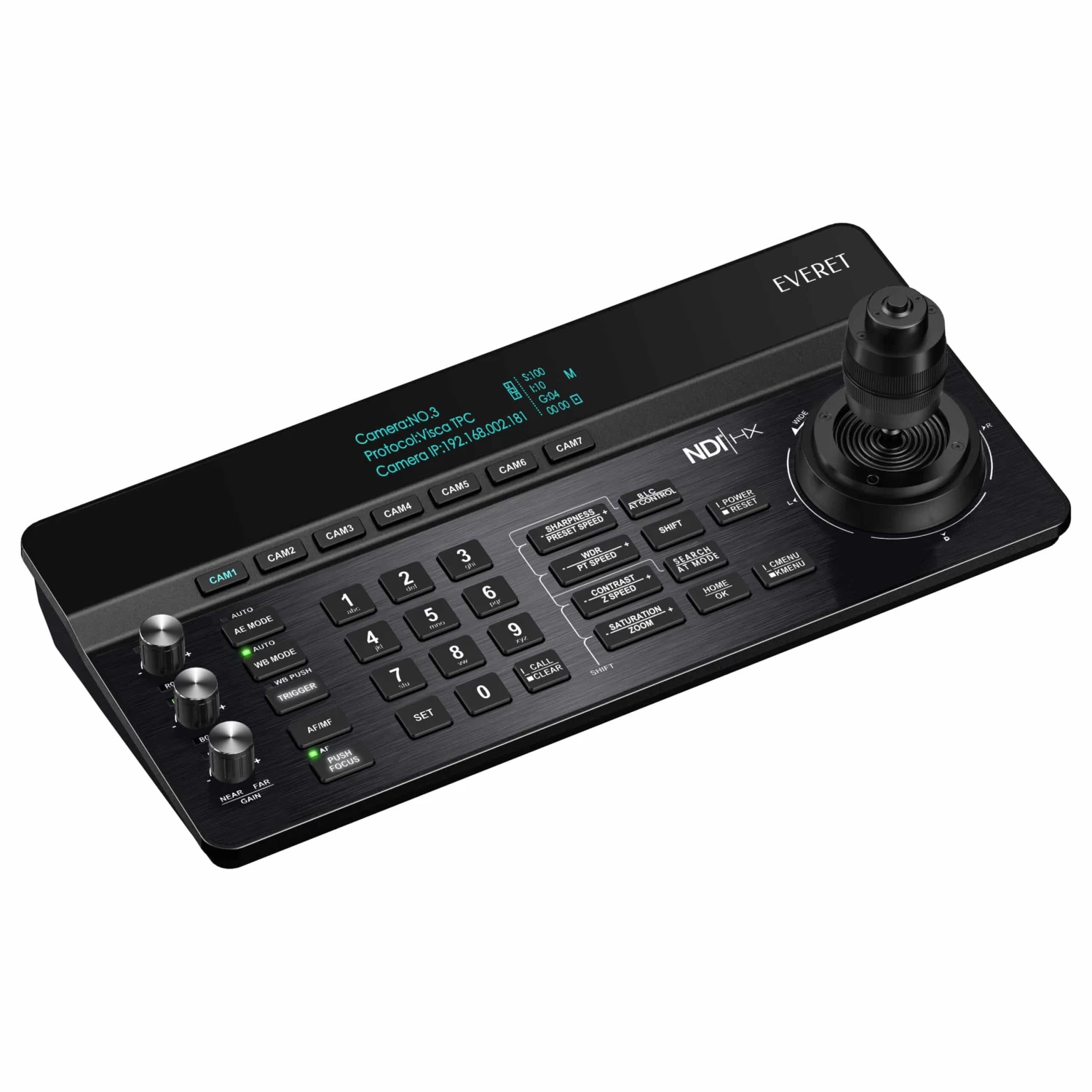

The four-dimensional joystick controller enables you to professionally control the camera’s rotation and zooming very smooth and precise.The high-definitionscreen shows detailed camera and control status information.

Intuitive control buttons and function knobs allow to set the camera’s exposure mode, white balance mode, and focus mode, as well as on-the-fly speed control and adjusting image parameters fast & convenient according to your preferences and scene applications. 128 preset positions can be set, recalled, and cleared via the numerical button area. The 7 camera shortcut channel control buttons will help you to focus on your production and easily switch control between multiple cameras.

The EVKB200N supports a variety of camera models and manufacturers. The unit comes with an 12V power supply or it can be powered using Power-over-Ethernet (PoE).

KEY FEATURES

• NDI®|HX, NDI®, IP & Serial Communication
• Auto Tracking on/off
• VISCA/VISCA-over-IP/Pelco-P & D Support
• 7 x Shortcut Channels, 128 Total Presets
• Power-over-Ethernet (PoE) Support
• Simultaneous Multi-Brand Camera Control
• OLED display blue for clear and easy operation
• Button backlightning
• Built-in speed rotation buttons so you can quickly and easily control the adjustment of the camera aperture, shutter, brightness and white balance
• OLED display for clear and easy operation
• 12 VDC Power Supply Inclu

SPECIFICATIONS EVERET EVKB200N NDI / IP & SERIAL PTZ Camera Controller

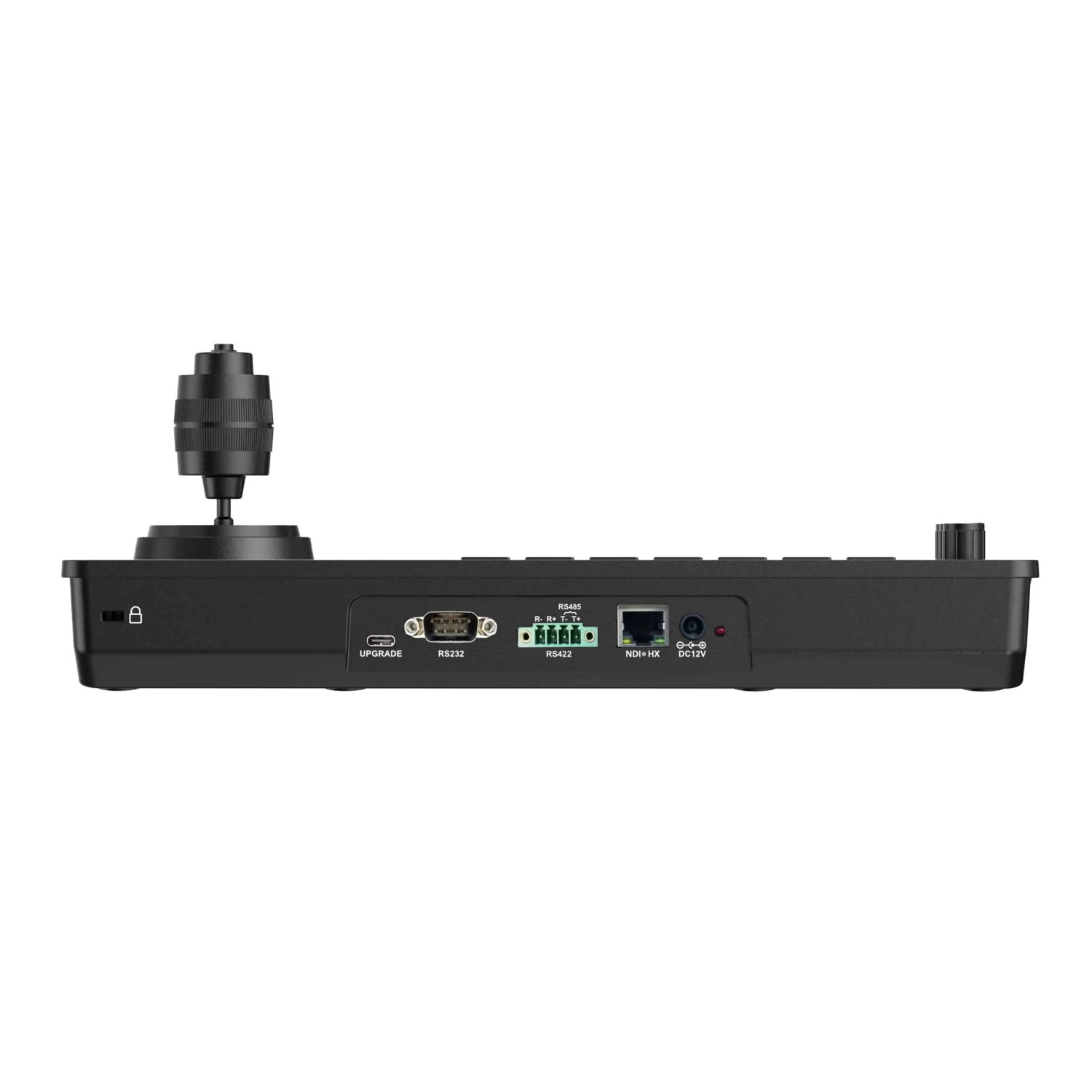

Control Ports	NDI®|HX, NDI®RS232, RS422, RS485
RJ45	Ethernet port, POE (IEEE802.3af)
RS232	DB9 Male
RS422	3.81 Spacing terminal, T＋, T－, R＋, R－
RS485	3.81 Spacing terminal ,T＋, T－
Protocols	NDI ®|HX, VISCA, VISCA over IP, VISCA TCP, VISCA UDP, ONVIF, PELCO-P, PELCO-D,
Upgrade Port	USB Type-C
Display	3.12-inch OLED screen, blue light, 256×64 pixel
Working Power	12V, 1A
Temperature	-10℃~50℃
Working Humidity	20%~80%
Dimensions	320.5mm×156.5mm×118mm
Net Weight	1.05KG

INCLUDED BY DEFAULT

• EVKB200N
• Power Adapter
• RS232 Cable
• Power Cable
