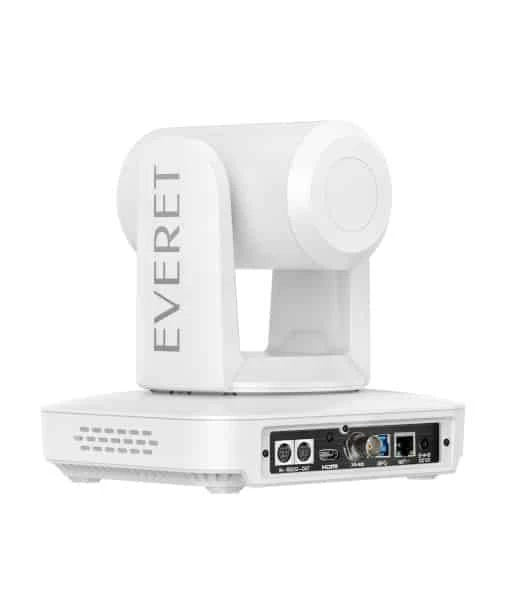

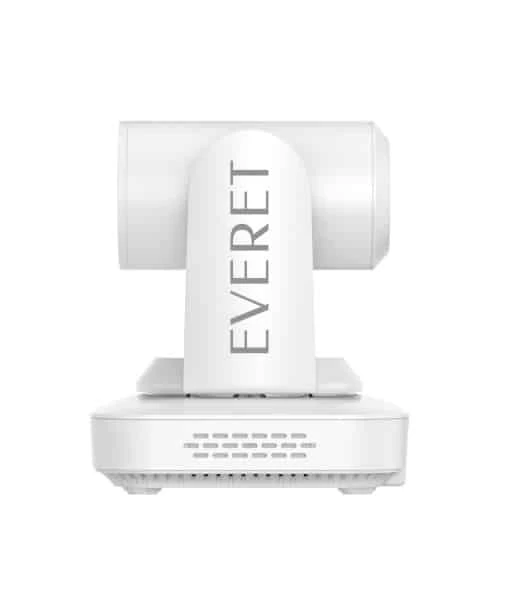

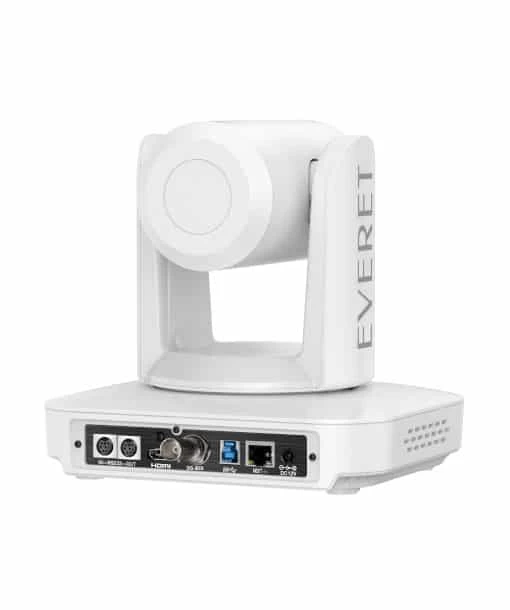

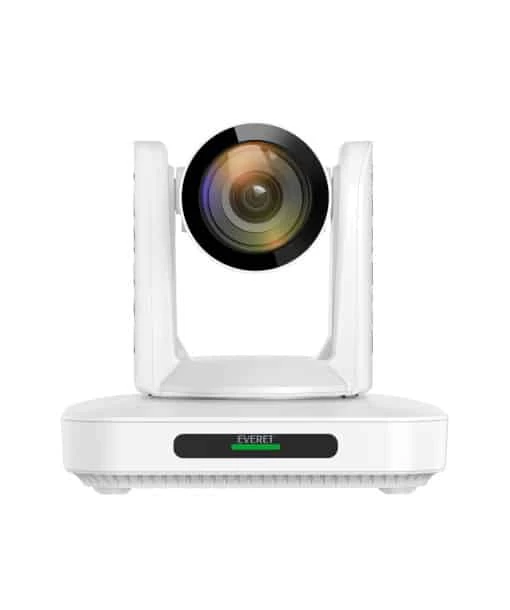

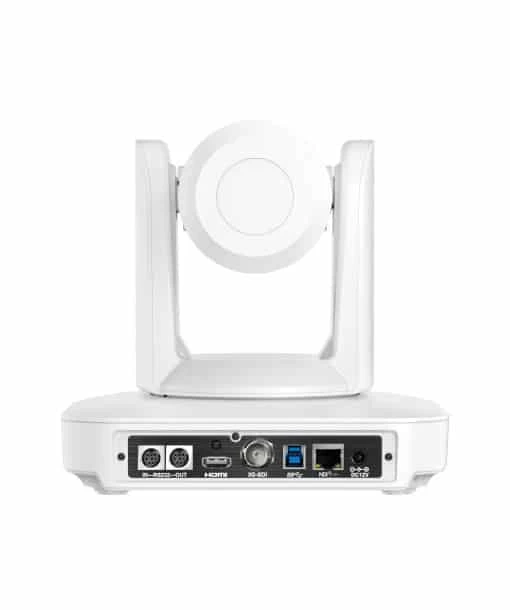

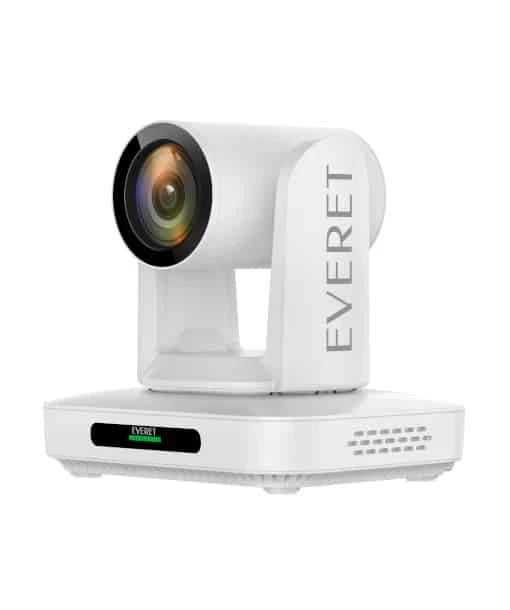

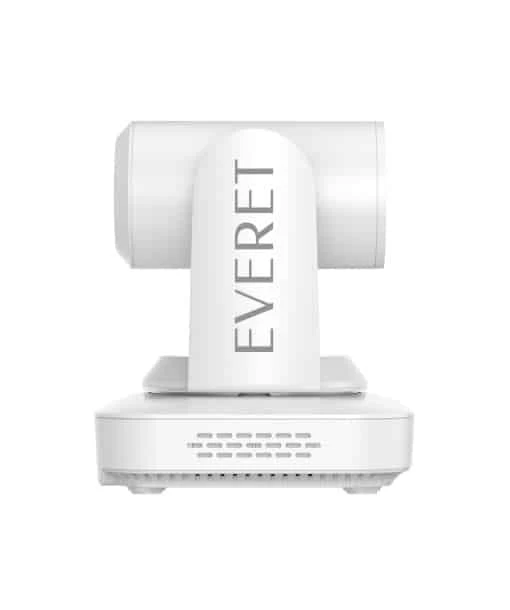

Everet EVP212NW FHD NDI|HX2 PTZ Camera POE 12x Zoom

Everet EVP212NW FHD NDI|HX2 PTZ Camera with POE

The Everet EVP212NW NDI PTZ camera is a professional full HD PTZ video camera with 12x optical zoom and NDI|HX 2. Simplifying setup supporting PoE, high quality video, tally light and control using a standard gigabit enabled network and native integration with all NDI compatible systems and software on your network. Everet PTZ cameras are Black Magic ATEM Television Studio Compatible.

KEY FEATURES

• Advanced ISP, high quality Panasonic 1/2.8 inch 5MP sensor
• 12x Optical Zoom + 2x Digital Zoom, with 72.5 degree field of view
• 1080P60 full HD video over NDI|HX2, SRT, 3G-SDI. HDMI, usb 3.0 output simultaneously
• 3G-SDI compatible with Blackmagic Design ATEM (e.g. 1080p50/1080p60)
• IP Video Streaming, includes both H.264, H.265 video encoding
• WDR, 3D Noise Reduction feature
• Power over Ethernet (PoE) support: get video, control, tally and power supply with one CAT5/6 cable
• Image Flip function, up to 128 user defined presets
• Built-in tally light
• Special Focusing Algorithm: fast and precise focusing performance when zooming or moving
• IP, SRT, HDMI, 3G-SDI, NDI|HX2, USB 3.0
• Whisper quiet PTZ design, accurate pan tilt motor control
• Standard IP VISCA, Serial VISCA, PELCO-P/D control protocol; IP VISCA over TCP/UDP
• Matte Black and White models (W)
• Supported vMix PTZ Camera
• 3 year warranty
• IR remote control

SPECIFICATIONS EVERET EVP212NW NDI PTZ CAMERA

Model	EVP212NW
Video format	HDMI	1920*1080P60/50/30/25 1920*1080I60/50 1280*720P60/50/30/25
	SDI	1920*1080P60/50/30/25 1920*1080I60/50 1280*720P60/50/30/25
	RJ45	1920*1080@1~30 //1280*720@1~30（Main Stream） 1280*720@1~30  / 1027*576@1~30 / 640*360@1~30 （Sub stream）
	NDI|HX2		1920*1080@3~60, 1280*720@3~60 1024*576@3~ 60640*360@30 (low bandwidth mode)
Video Interface	HDMI, SRT, 3G-SDI, NDI|HX2, USB 3.0
Audio input	not supported
Audio output	RTSP and RTMP
Sensor	1/2.8 inch, 5mega pixel high quality Panasonic sensor
Zoom	F4.9～98mm(20X) F1.5 – 3.0 View Angle: 72.5°(Far)-6.3°(Near)
Rotation Angle	Pan: -170° ~ +170°;      Tilt: -30° ~ +90°
Rotation Speed	Pan: 0°~120°/s ;         Tilt: 0°~80°/s
Preset:	Remote controller: 10; RS232: 128; Accuracy: 0.1°
Control Port	RS232、RS485(optional)、RJ45 (VISCA over IP)、USB3.0(UVC1.5)
Network Speed	1000M
Video encode	H.264/H.265(default: H.264)
Bit Rate Control	Variable Bit Rate, Constant Bit Rate
Video Bit Rate	1024Kbps~10240Kbps
IP Protocol	TCP/IP, SRT, HTTP, RTSP, DHCP , Onvif
POE	Supported
Daisy Chain	Support RS232 serial daisy chain
Minimum Lux	0.1lux
White Balance	Auto/Indoor/Outdoor/Manual/Outauto/Sodium Lamp Auto/Sodium Lamp
Exposure	Auto/Manual/Bright/Shutter/Iris
Focus	Auto / Manual
Iris	Auto / Manual
Electric Shutter	Auto / Manual
Gamma	Supported
WDR	Supported
BLC	Supported
2D Noise Reduction	Supported
3D Noise Reduction	Supported
Anti Flicker	OFF/50Hz/60Hz
PanTilt Flip	Supported
Input Voltage	DC12V/11W PoE+ recommended (IEEE802.3at)
Dimension	220mm×190mm×173mm
Net Weight	1.4KG（3.1LBS）

INCLUDED BY DEFAULT

• EVP212NW NDI|HX2 PTZ Camera
• Remote Control
• Power Adapter
• Power Cable
• RS232 Cable
