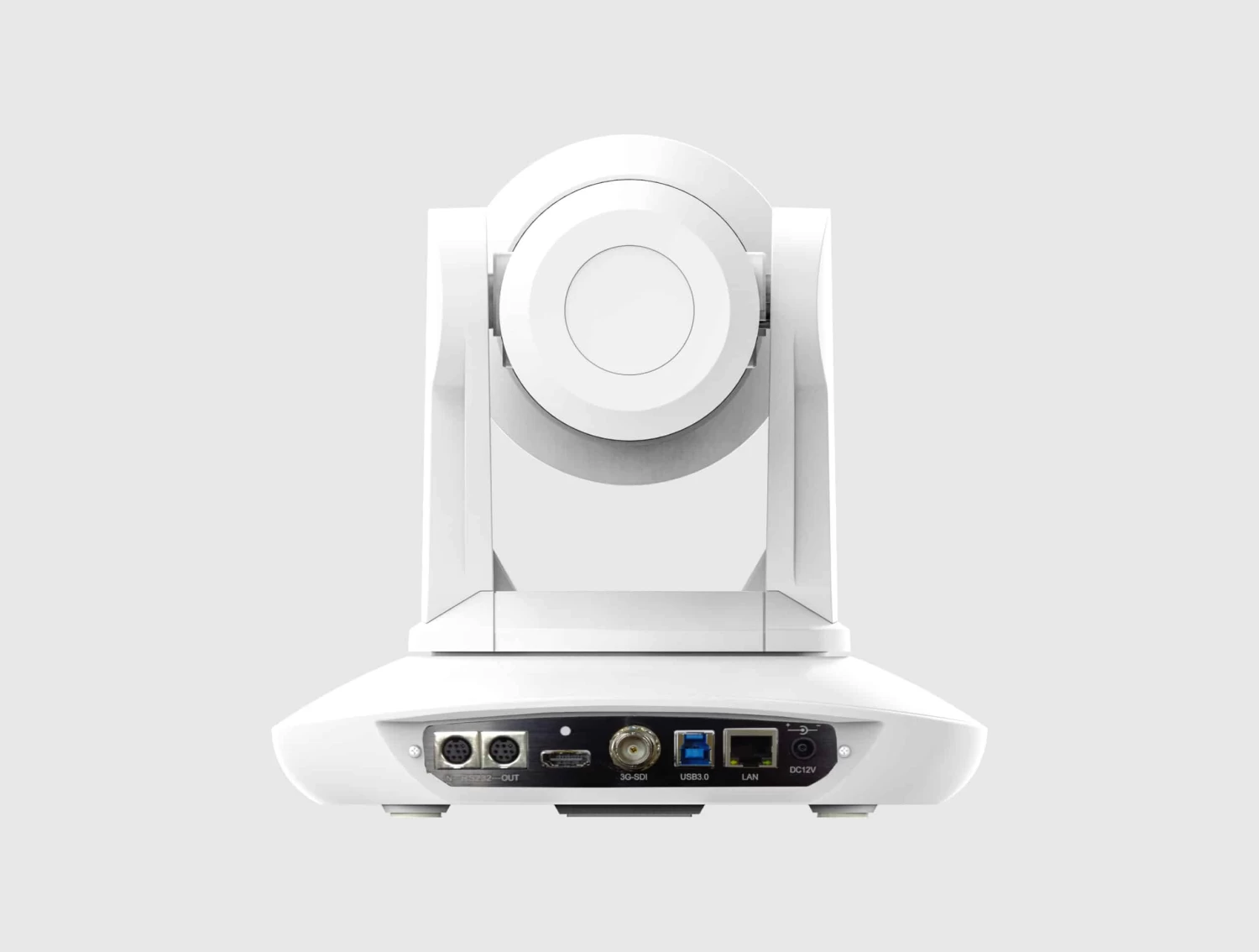

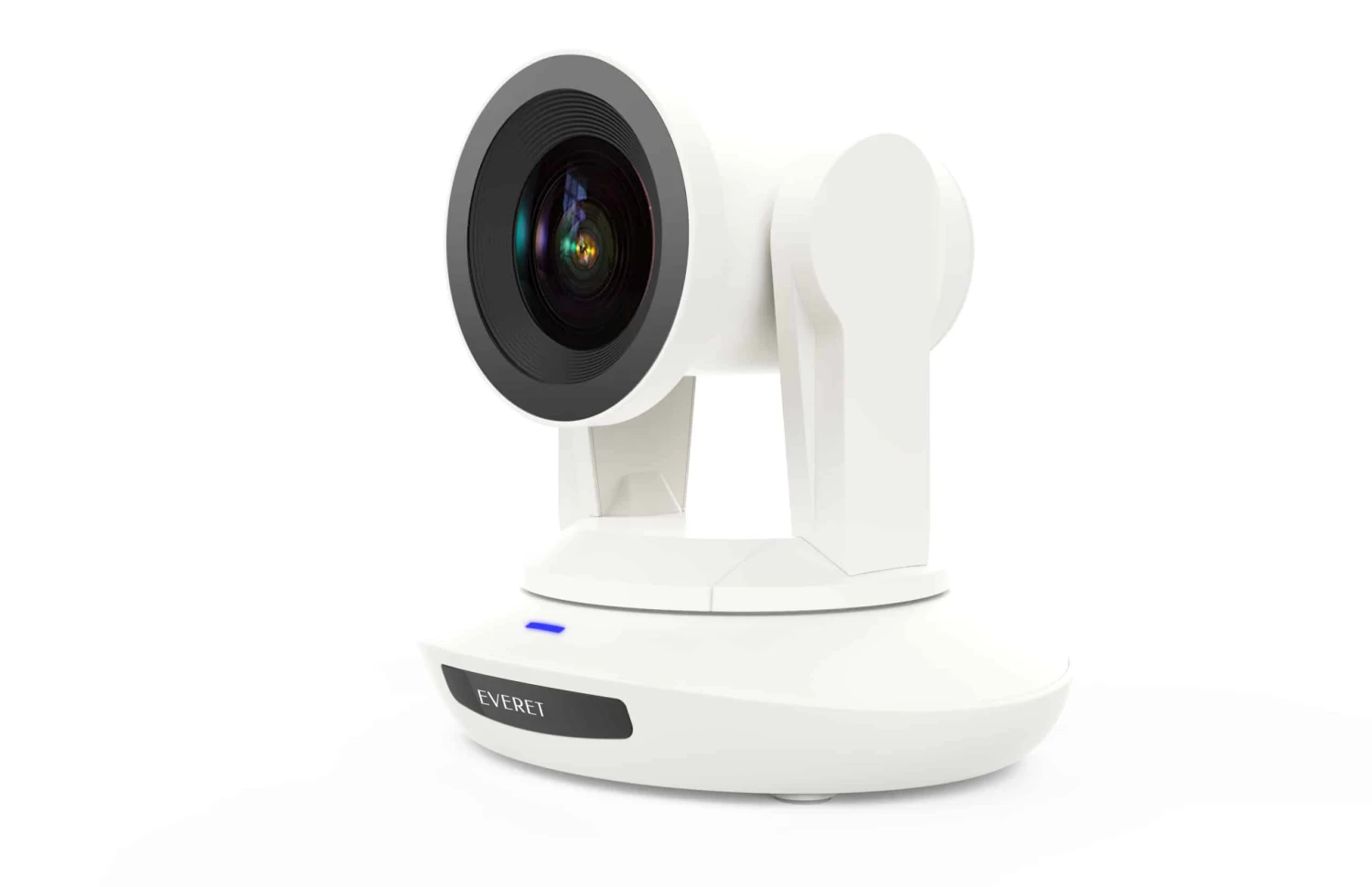

EVERET EVP230W – FHD IP PTZ Video Camera PoE 30x Zoom

Everet EVP230W FHD PTZ Camera with 30x Optical Zoom and POE

The EVERET EVP230W is a High Quality Full HD video camera, offering IP, HDMI, SDI and USB3.0 simultaneously output, with 30x optical zoom, ideal for live broadcasting, lecture capture and high end video conferenci

KEY FEATURES

• Sony 1/1.7 inch 12MP sensor, providing 1920x1080p30 Ultra HD video resolution
• 30x optical zoom and 2x digital zoom, with 60 degree field of view
• 1080P60 FHD video over HDMI, 3G-SDI and USB 3.0 and 1080P30 over IP, H.264, H.265 encoding
• IP, HDMI, 3G-SDI, USB outputs
• WDR, 3D Noise Reduction feature
• Support POE: one single CAT5/6 to get video, control and power supply
• Special Focusing Algorithm: fast and precise focusing performance when zooming or moving
• Whisper quiet PTZ design, accurate pan tilt motor control
• 128 presets
• Standard Sony VISCA, IP VISCA, PELCO-P, PELCO-D control protocol; IP VISCA over both TCP and UDP
• Daisy chain supported
• Image flip function, support upside-down installation
• Supplied with functional IR remote controller, can set IP address via OSD menu
• 3 years warranty

SPECIFICATIONS

Model Number	EVP230W
Sensor	1/1.7 inch, 12 MP high quality Sony CMOS sensor
Video Format	HDMI	IP	SDI	USB3.0
	1920*1080p60/59.94/50/30/29.97/25/24, 1920*1080i60/59.94/50, 1280*720p60/59.94/50/ 30/29.97/25	Main stream1920*1080p30-1,   Sub stream: 1280*720p30-1 1024*576p30-1 640*360p30-1	1920*1080p60/59.94/50/30/29.97/25/24,1920*1080i60/59.94/50, 1280*720p60/59.94/50/29.97/30/25	USB3.0： 1920*1080p60/50/30/25, 1280*720p60/50/30/25, 1024*576p30 USB2.0： 1280*720p25, 1024*576p30,960*540p30, 640*360p30,512*288p30
Zoom	30x optical zoom + 2x digital zoom
FOV	2.02° (near) ~ 60° (far)
Min. Focus Distance	Wide: 0.3m               Tele: 1.5m
Preset	10 via remote controller; 128 via serial port; preset precision:0.1°
Rotation Angle	Pan: -170° ~ +170°; Tilt: -30° ~ +90°
Rotation Speed	Pan: 0°~120°/s; Tilt: -0°~80°/s
Control Port	RS232 / RS485 / RJ45
Video Port	HDMI / RJ45 / SDI / USB3.0 / USB2.0
Noise Reduction	2D&3D
SNR	>50dB
Focal Length	f＝5.8(near)～203mm(far)
Minimum LUX	0.1 LUX
White Balance	Auto / Manual / Auto Tracking / OnePush / Indoor / Outdoor
Anti Flicker	50Hz/60Hz/OFF
D/N Mode	Supported
Gamma	Supported
Mirror Image	Supported
Image Flip	Supported
Iris	Auto / Manual
Shutter Speed	Auto / Manual
Backlight Compensation	Auto / Manual
Focus	Auto / Manual
Video Encoding	H.264/H.265
Bit Rate Control	Variable Bit Rate, Constant Bit Rate
Video Bit Rate	1024Kbps~30720Kbps
Frames	50HZ:1fps~50fps  60HZ:1fps~60fps  （3840×2160 max. 30fps）
Protocol	TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP
POE	Supported
Input Voltage	DC12V/12W PoE+ recommended (IEEE802.3at)
Dimensions	220mm×173mm×190mm
Net Weight	1.25KGS（2.8LBS）

INCLUDED BY DEFAULT

• EVERET EVP230W PTZ Camera
• DC12V Power Adapter
• Power Cable
• RS232 Cable
• IR Remote Controller
