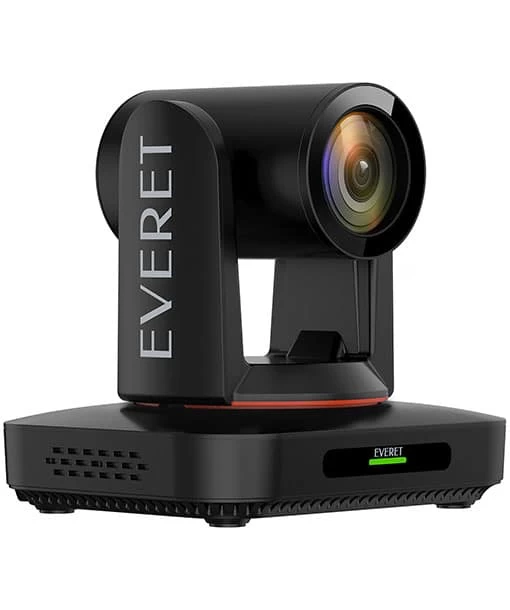

Everet EVP312 Full HD NDI|HX2 PTZ Auto Tracking Camera with 12x Optical Zoom

The EVERET EVP312 is a Full HD NDI® HX2  broadcast PTZ camera with 12x Zoom and wide angle 72.5° lens. Offering four simultaneous video outputs and also NDI|HX workflows over IP. The SDI, HDMI, and USB outputs can be set at resolutions up to 1080p60, the NDI streaming can output at separate resolutions with frame rates from 1 to 60 fps. The pan, tilt, and zoom functions of the camera can be controlled via serial control or by using the included remote control. Simplifying setup supporting PoE, superior video quality, tally light and control using a standard gigabit enabled network and native integration with all NDI® compatible systems and software on your network including Wirecast, xSplit, OBS, vMix, Livestream studio, Tricaster and more.

The PTZ camera is equipped with superior Ambarella ISP chipset, professional Panasonic 1/2.86″ 2.4MP CMOS sensor and 12x optical zoom lens to capture high quality imagery up to 1080p60. The camera offers also multiple simultaneous video output options including HDMI, 3G-SDI, UVC USB and IP streaming.

The EVP312 PTZ camera is an advanced AI tracking camera that automatically follows the speaker as they move around the stage. This ensures that the speaker is always in the center of the frame, making it easier for the audience to follow along with the presentation. With this feature, you can ensure that your audience is fully engaged and focused on your message.

With the Everet EVP312 you will have a flexible and scalable NDI PTZ camera that can be used in a wide range of applications, from live production to broadcast, and everything in between.

KEY FEATURES

• NDI|HX2 Support
• Panasonic 1/2.86 inch CMOS 2.4MP sensor
• Superior High Performance American Ambarella ISP chipset
• 12X Optical Zoom
• 72.5° Field of View
• Advanced AI Auto Tracking
• Simultaneous SDI, HDMI, USB, IP Outputs
• SDI (3G-SDI compatible with Blackmagic Design SDI Level-B)
• RS-232, VISCA over IP Control
• Smooth pan-tilt-zoom
• Automatic NDI® tally support
• Power over Ethernet (PoE) support: get video, control, tally and power supply with one CAT5/6 cable
• IP Streaming – RTSP/ RTMP/SRT/NDI|HX
• Support for FHD video formats up to 1080p 60
• Wide Dynamic Range, 3D Noise Reduction feature
• Flexible Mounting options
• Available in Black and White colors
• 3-Year Warranty
• Webbased UI for easy setup, preview and control
• One-click firmware upgrades
• Supported vMix PTZ NDI Camera

SPECIFICATIONS EVERET EVP312 NDI HX2 PTZ TRACKING CAMERA

Camera	EVP312
Sensor	Panasonic 1/2.86 inch 2.4 MP CMOS sensor
Color Space	8bit RGB 4:4:4; ISP RAW (12bit)
Video
Video interface	HDMI / 3G-SDI* / USB 3.0 (type-B) / RJ45 (IP)   *Level A and B
Video Encoding	H.264/H.265
Streaming Protocols	NDI®|HX2  / RTMP / SRT / RTSP
Bitrate control	Variable or Constant
Video Bitrate	1024Kbps ~ 16384Kbps
I-Frame Interval	3 – 120
Audio
Interface	3.5mm Line-in
Samplerate	AAC: 16000Hz – 48000Hz LPCM: 11025Hz – 48000Hz
Bitrate for AAC	32000Kbps – 128000Kbps
Volume	1-100
Video format
HDMI	1920x1080P60/50/30/25/59.94/29.97/24/23.98 1920x1080I60/50/59.94 1280x720P60/50/30/25/59.94/29.97
3G-SDI	1920x1080P60/50/30/25/59.94/29.97/24/23.98 1920x1080I60/50/59.94 1280x720P60/50/30/25/59.94/29.97
USB 3.0 (type-B)	USB 3.0 1920*1080P60/50/30/25 1280*720P60/50/30   USB 3.0 & USB 2.0 1280*720P25 1024*576P30   USB 2.0 960*540P30 640*360P30 512*288P30
NDI®|HX2 / RTMP / SRT / RTSP	Main Stream 1920×1080@15~60 1280×720@15~60 1024×576@15~60 Sub Stream 1280*720@3~60 1024*576@3~60 640*360@3~60
Lens
Optical Zoom	12x
Digital Zoom
Aperture	F1. 8(Wide) – F2.8(Tele)
Focal Length	f=3.92 ~ 47.32mm
Horizontal Viewing Angle	72.5° (Wide) ~ 6.3°(Tele)
Vertical Viewing Angle	42.72° (Wide) ~ 3.66 (Tele)
Diagonal Viewing Angle	78.58° (Wide) ~ 7.42° (Tele)
PTZ
Speed by Zoom	ON/OFF
Pan/Tilt rotation range	Pan: -170° ~+170° Tilt: 30°~+90°
Pan/Tilt rotation speed	Pan: 0.1°~120°/s Tilt: 0.1°~80°/s
PTZ Freeze	Yes
Pan & Tilt Speed	5 – 24
Zoom Speed	1 – 7
Presets	IR Remote : 10 WebUI: 128 EVKB200N: 128 Serial: 128
Save AE & WB settings in preset	ON/OFF
Preset Speed Pan & tilt	5 – 24
Preset Speed Zoom	1 – 7
Shutter Speed	1/1 – 1/10000s
Iris	F1.8 – F14
Minimum Object distance	Wide: 1m～INF; Tele：1.5m～INF
Video S/N Ratio	>50dB
Minimum Illumination	0.01 lux
Focus	Auto / Manual / One Push Auto Focus
Gain Level	0-30Db
White Balance Modes	Auto / Manual / Auto Tracking / One Push / Indoor / Outdoor / Color Temperature
Exposure Modes	Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority
Wide Dynamic Range Level	Levels 1-6
Gamma	Levels 0-8
Anti-Flicker	OFF / 50Hz / 60Hz
3D NR	OFF / Auto / Level 1-4
2D NR	Yes
Image Flip	Yes
Image Mirror	Yes
Back Light Compensation	Yes
Tally Light	Yes
Control
Network (RJ45)	NDI / HTTP / ONVIF / VISCA over IP (TCP&UDP) / HTML5 (WebUI)
Serial	RS232 / RS422 / RS485 / PELCO P/D
IR Remote	Yes
Daisy Chain	Yes, up to 7 cameras
USB	USB2.0(UVC1.1)
Visca over IP Port	52381
NDI Port	5961
Network
Default IP	192.168.1.188
Port Speed	1 Gb/s
PoE	POE+(IEEE802.3at)
DHCP	Yes
Multicast	Yes
NDI Discovery server	Yes
HTTP Port	80
RTSP Port	554
RTSP Encrypt	Yes
General
Environment	Indoor
Operating Temperature	-10℃~50℃
Operating Humidity	≤80%
Power input	DC12V/POE+(IEEE802.3at)
Power Consumption	PoE+ : 9W DC in: 9W
Dimensions (LxWxH)	205mm×165mm×191,8mm
Weight	1.8 KG
Color	Black/White

INCLUDED BY DEFAULT

• EVERET EVP312 PTZ Tracking Camera
• DC12V Power Adapter
• Power Cable
• RS232 Cable
• IR Remote Controller
