Everet EVP412 4K UHD PTZ Camera POE 12x Zoom HDMI IP 3G-SDI USB3

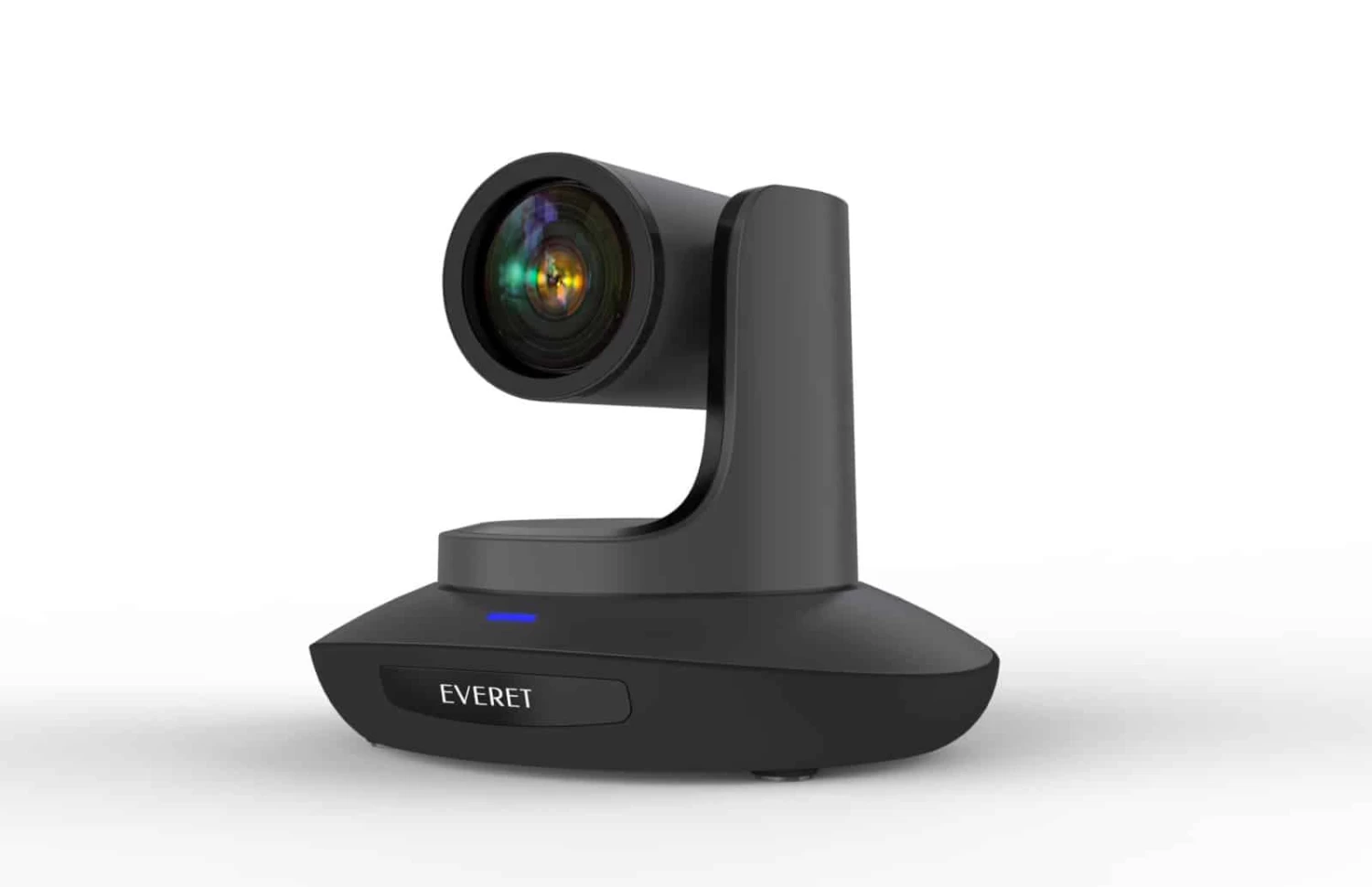

Everet EVP412 4K UHD IP PTZ Camera with PoE

The Everet EVP412 is a professional  4K Ultra HD PTZ camera that supports IP, HDMI, 3G-SDI, USB3.0 output and PoE. It has an 12x optical zoom lens which makes it ideal for AV solutions, high end video conference meetings and live streaming.

KEY FEATURES

• Professional 1/2.5 inch 8MP Sony sensor and high quality 12x 4K optical lens, to provide ultra high definition video with full details
• 12x optical zoom and 2x digital zoom, 72.5 degree field of view
• 3840x2160p30 Ultra HD video resolution
• IP, HDMI, 3G-SDI, USB3.0 video output simultaneously. 4K video over IP or HDMI optional
• 3G-SDI compatible with Blackmagic Design ATEM (e.g. 1080p50/1080p60)
• 4K video over IP, H.264, H.265 encoding
• WDR (wide dynamic range), 3D noise reduction adjusted via OSD menu, and IP address setting via OSD menu
• Whisper quiet PTZ design, accurate pan tilt motor control
• Standard Serial VISCA, IP VISCA, PELCO-P/D control protocol, IP VISCA over TCP and UDP
• 128 presets
• Support POE: one single CAT5/6 to get video, control and power supply
• Support image flip function, camera can be installed up or upside down
• Matte Black and White models (W)
• Supported by vMix
• 3 year warranty
• IR remote control

SPECIFICATIONS EVERET EVP412 4K PTZ CAMERA

Camera	EVP412
Sensor	Sony IMX247 1/2.5 inch 8.5 MP CMOS Sensor
Color Space	8bit 4:2:2; ISP RAW (12bit)
Video

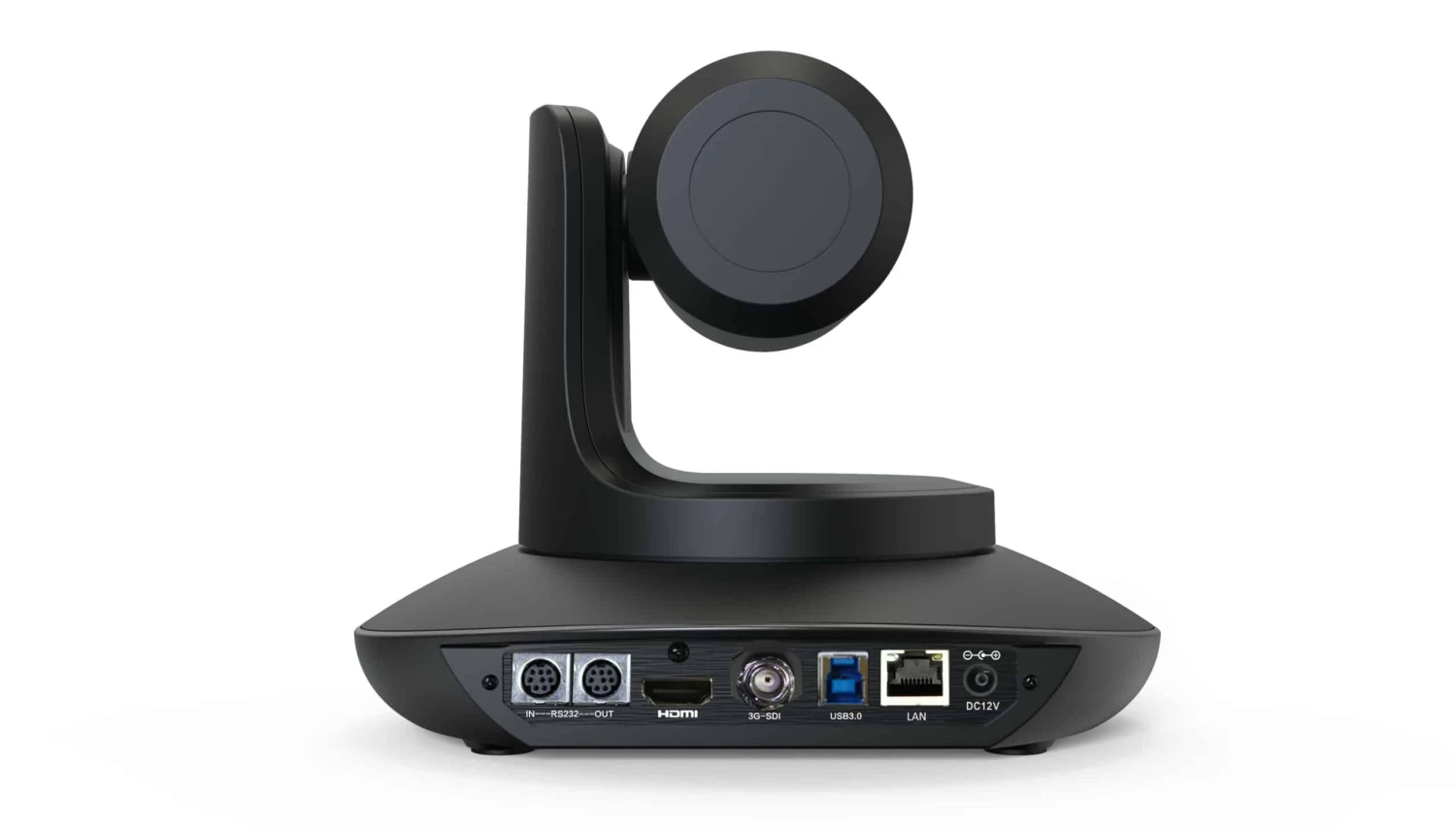

Video interface	HDMI / 3G-SDI* / USB 3.0 (type-B) / RJ45 (IP)   *Level A and B
Video Encoding	H.264/H.265
Streaming Protocols	RTMP / RTSP
Bitrate control	Variable or Constant
Video Bitrate	1024Kbps ~ 51200Kbps
I-Frame Interval	3 – 120
Video format
HDMI	3840x2160P30/25 1920x1080P60/50/30/25/59.94/29.97/24 1920x1080I60/50/59.94 1280x720P60/50/30/25/59.94/29.97
3G-SDI	1920x1080P60/50/30/25/59.94/29.97/24 1920x1080I60/50/59.94 1280x720P60/50/30/25/59.94/29.97
USB 3.0 (type-B)	USB 3.0 1920*1080P60/50/30/25 1280*720P60/50/30   USB 3.0 & USB 2.0 1280*720P25 1024*576P30   USB 2.0 960*540P30 640*360P30 512*288P30
RTMP / RTSP	Main Stream 3840×2160@15~301920×1080@15~301280×720@15~301024×576@15~30Sub Stream1280×720@15~301024×576@15~30640×360@15~30
Lens
Optical Zoom	12x
Digital Zoom	2x
Aperture	F1. 8(Wide) – F2.8(Tele)
Focal Length	f=3.92～47.32mm
Horizontal Viewing Angle	72.5° (Wide) – 6.3°(Tele)
Vertical Viewing Angle	42.72° (Wide) – 3.66 (Tele)
Diagonal Viewing Angle	78.58° (Wide) – 7.42° (Tele)
PTZ
Speed by Zoom	ON/OFF
Pan/Tilt rotation range	Pan: -170° ~+170° Tilt: 30°~+90°
Pan/Tilt rotation speed	Pan: 0.1°~120°/s Tilt: 0.1°~80°/s
PTZ Freeze	Yes
Pan & Tilt Speed	5 – 24
Zoom Speed	1 – 7
Presets	IR Remote : 10 WebUI: 128 EVKB200N: 128 Serial: 128
Save AE & WB settings in preset	Not supported
Preset Speed Pan & tilt	5 – 24
Preset Speed Zoom	1 – 7
Shutter Speed	1/1 – 1/10000s
Iris	F1.8 – F14
Minimum Object distance	Wide: 1m～INF; Tele：1.5m～INF
Video S/N Ratio	>50dB
Minimum Illumination	0.1 lux
Focus	Auto / Manual / One Push Auto Focus
Gain Level	0-30Db
White Balance Modes	Auto / Manual / Auto Tracking / One Push / Indoor / Outdoor /
Exposure Modes	Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority
Wide Dynamic Range Level	Levels 1-6
Gamma	Levels 0-8
Anti-Flicker	OFF / 50Hz / 60Hz
3D NR	OFF / Auto / Level 1-4
2D NR	Yes
Image Flip	Yes
Image Mirror	Yes
Back Light Compensation	Yes
Tally Light	Yes
Control
Network (RJ45)	HTTP / ONVIF / VISCA over IP (TCP&UDP) / HTML5 (WebUI)
Serial	RS232 / RS422 / RS485 / PELCO P/D
IR Remote	Yes
Daisy Chain	Yes, up to 7 cameras
USB	USB3.0(UVC1.5), USB2.0(UVC1.1)
Visca over IP Port	52381
Network
Default IP	192.168.1.188
Port Speed	1 Gb/s
PoE	POE+(IEEE802.3at)
DHCP	Yes
HTTP Port	80
RTSP Port	554
RTSP Encrypt	Yes
General
Environment	Indoor
Operating Temperature	-10℃~50℃
Operating Humidity	≤80%
Power input	DC12V/POE+(IEEE802.3at)
Power Consumption	PoE+ : 9W DC in: 9W
Dimensions (LxWxH)	220mm×190mm×173mm
Weight	1.4 KG
Color	Black/White

INCLUDED BY DEFAULT

• EVP412 PTZ Camera
• Remote Control
• Power Adapter
• Power Cable
• RS232 Cable
• USB3.0 Cable
