Everet EVP412N – 4K UHD NDI PTZ Camera POE 12x Zoom NDI|HX

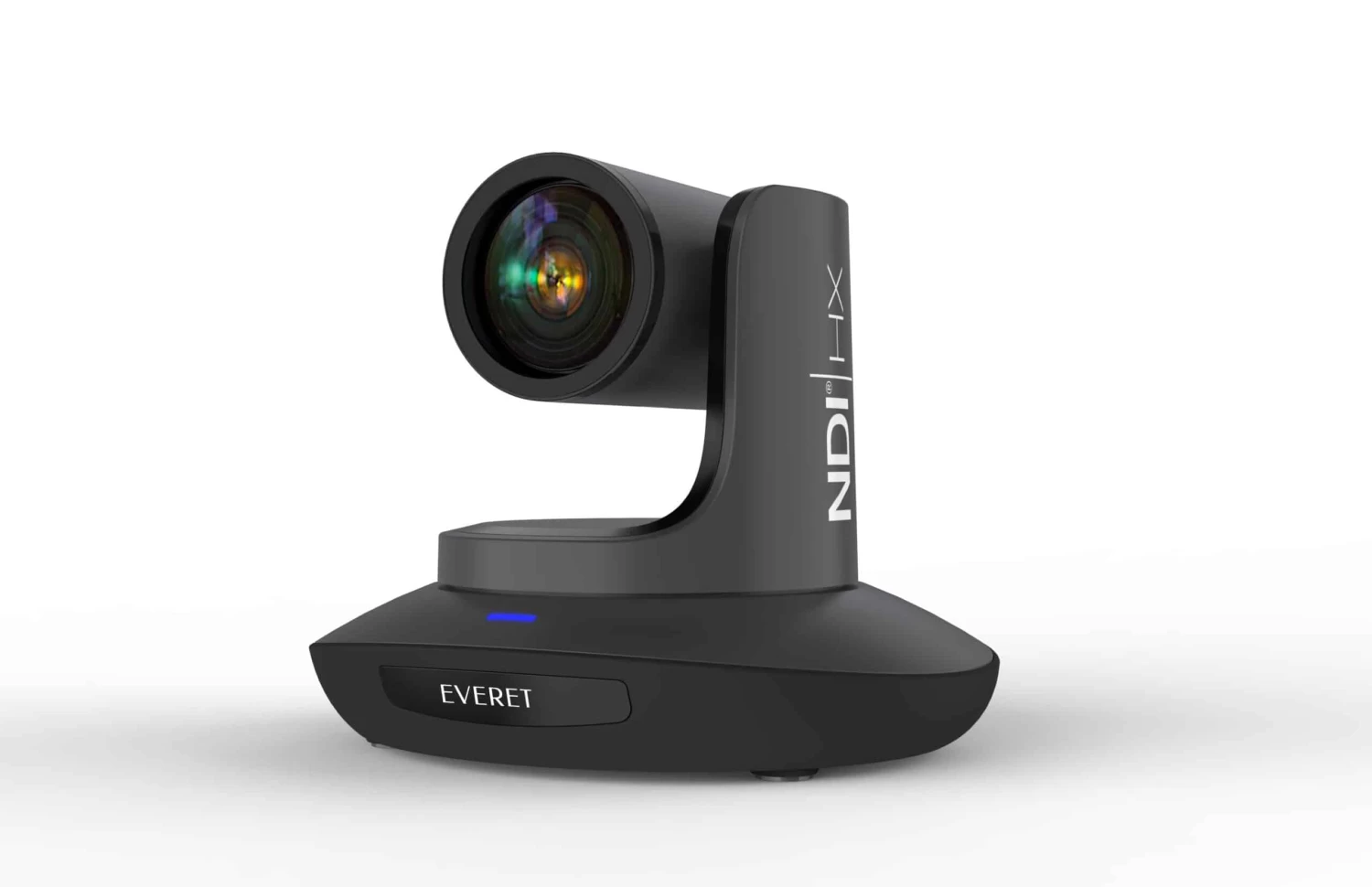

Everet EVP412N 4K UHD NDI PTZ Camera with POE

The Everet EVP412N 4K UHD PTZ camera with NDI® is a professional grade 4K Ultra HD video camera with NDI|HX 2, HDMI, 3G-SDI, IP and USB 3.0 output interface. Simplifying setup for live streaming systems supporting PoE, high quality 4K video, tally and control using a standard gigabit enabled network and native integration of industry standard video software including Wirecast, xSplit, OBS, vMix, Livestream studio, Tricaster and more. With the 4K wide angle optical lens, 12x optical zoom, 0.1lux minimum illumination and low latency, ideal for broadcasting, lecture capture and video conferencing.

KEY FEATURES

• Advanced ISP, 1/2.5 inch 8MP Sony Sensor
• 4K lens with 12x Optical Zoom + 2x Digital Zoom, with 72,5 degree field of view
• NDI|HX 5, 3G-SDI, HDMI,  USB 3.0 output video simultaneously
• 4K video over NDI|HX 2 and HDMI
• IP Video Streaming, includes both H.264, H.265 video encoding
• 3G-SDI compatible with Blackmagic Design ATEM (e.g. 1080p50/1080p60)
• WDR, 3D Noise Reduction feature
• Power over Ethernet (PoE) support: get video, control, tally and power supply with one CAT5/6 cable
• Image Flip function, up to 128 user defined presets, built-in tally light
• Special Focusing Algorithm: fast and precise focusing performance when zooming or moving
• IP, HDMI, 3G-SDI, USB3.0 outputs
• Whisper quiet PTZ design, accurate pan tilt motor control
• Standard IP VISCA, Serial VISCA, PELCO-P/D control protocol; IP VISCA over TCP/UDP
• Black Matte and White models (W)
• NDI|HX 5 compatible with H265
• Supported vMix PTZ NDI Camera
• 3 years warranty
• IR remote control

SPECIFICATIONS EVERET EVP412N 4K NDI PTZ CAMERA

Model Number	EVP412N
Sensor	1/2.5 inch 8MP high quality Sony sensor
Video Format	HDMI	NDI|HX 2	3G-SDI	USB
	3840*2160p30/25, 1920*1080p60/59.94/50/30/29.97/25/24 1920*1080i60/59.94/50, 1280*720p60/59.94/50/30/29.97/25	Main stream 1920*1080@30, 3840*2160@30 Sub stream: 1280*720@30 1024*576@30 640*360@30	1920*1080p60/59.94/50/30/29.97/25/24, 1920*1080i60/59.94/50, 1280*720p60/59.94/50/30/29.97/25	USB3.0: 1920*1080p60/50/30/25, 1280*720p60/50/30/25, 1024*576p30USB2.0: 1024*576p30,960*540p30,640*360p30, 512*288p30
Zoom	12x optical zoom + 2x digital zoom
FOV	6.3°（Tele）~72.5°（Far）
Min. Focus Distance	Wide: 0.3m Tele: 1m
Preset	10 via remote controller; 128 via serial port; preset precision:0.1°
Rotation Angle	Pan: -170° ~ +170°; Tilt: -30° ~ +90°
Rotation Speed	Pan: 0°~120°/s; Tilt: -0°~80°/s

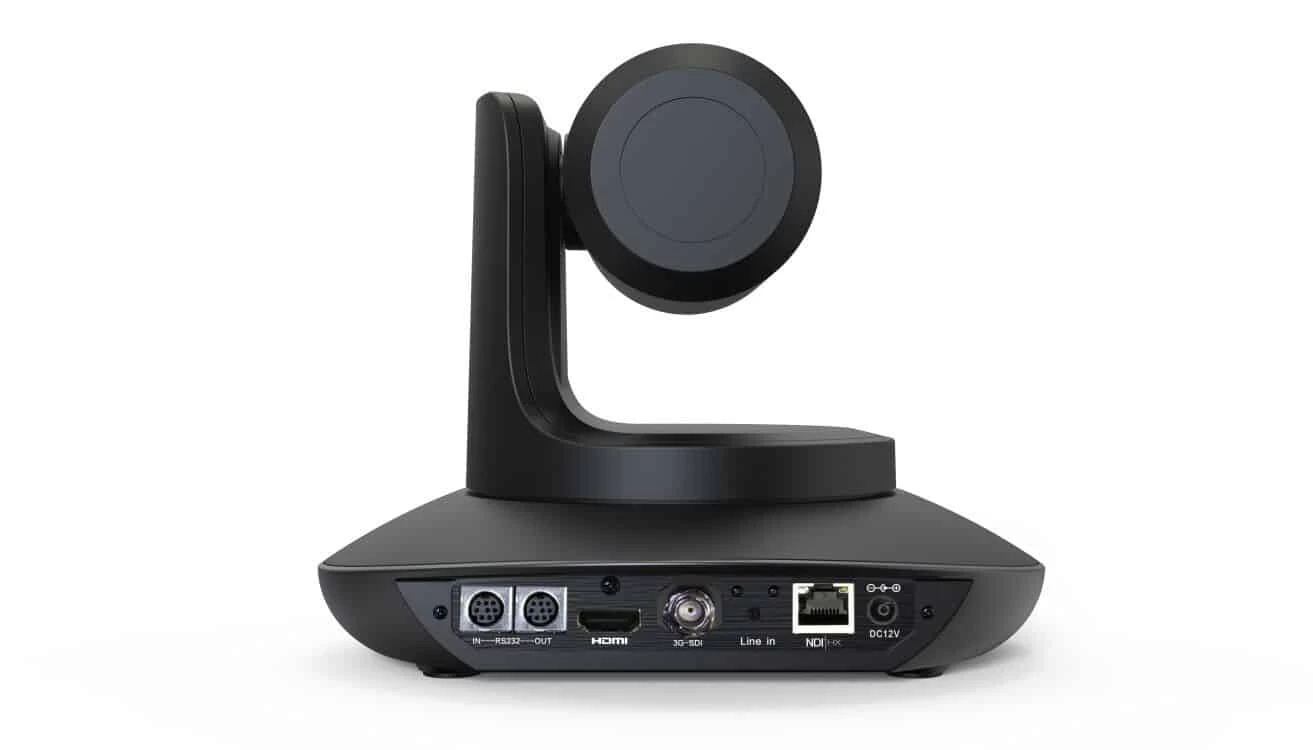

Control Port	RJ45 / RS232 / RS485 /
Video Port	HDMI / NDI|HX 5 / 3G-SDI / USB 3,.0
Audio input	not supported
Noise Reduction	2D&3D
SNR	>50dB
Focal Length	f＝3.92(near)～47.32mm(far)
Minimum LUX	0.1 LUX
White Balance	Auto / Manual / Auto Tracking / OnePush / Indoor / Outdoor
Anti Flicker	50Hz/60Hz/OFF
Iris	Auto / Manual
Shutter Speed	Auto / Manual
Backlight Compensation	Auto / Manual
Focus	Auto / Manual
Image Flip	Supported
Video Freeze	Optional
Video Encoding	H.264 / H.265
Bit Rate Control	Variable Bit Rate, Constant Bit Rate
Video Bit Rate	1024Kbps~20480Kbps
Frames	50HZ:1fps~30fps  60HZ:1fps~30fps  （3840*2160 max 30fps）
Protocol	TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, VISCA over IP (TCP&UDP), HTML5
POE	Supported
Input Voltage	DC12V
Dimensions W x H x W）	220mm×173mm×117mm
Net Weight	1.25KG（2.8LBS）

INCLUDED BY DEFAULT

• EVERET EVP412N 4K NDI PTZ Camera
• DC12V Power Adapter
• Power Cable
• RS232 Cable
• IR Remote Controller
