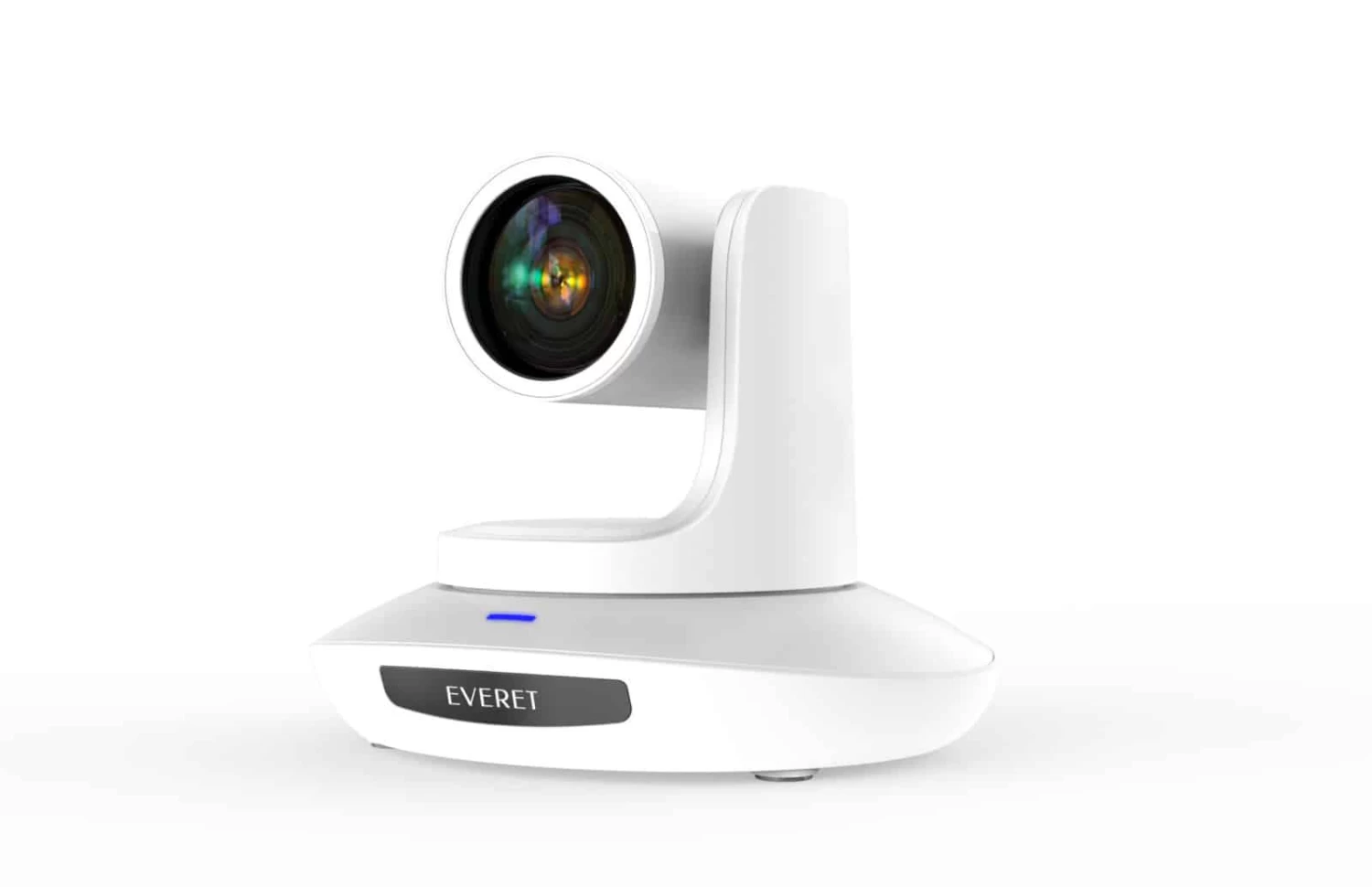

Everet EVP412W 4K UHD PTZ Camera POE 12x Zoom HDMI IP 3G-SDI USB3

Everet EVP412 4K UHD IP PTZ Camera with PoE

The Everet EVP412W is a professional  4K Ultra HD PTZ camera that supports IP, HDMI, 3G-SDI, USB3.0 output and PoE. It has an 12x optical zoom lens which makes it ideal for AV solutions, high end video conference meetings and live streaming. Everet PTZ cameras are Black Magic ATEM Television Studio Compatible.

KEY FEATURES

• Professional 1/2.5 inch 8MP Sony sensor and high quality 12x 4K optical lens, to provide ultra high definition video with full details
• 12x optical zoom and 2x digital zoom, 72.5 degree field of view
• 3840x2160p30 Ultra HD video resolution
• IP, HDMI, 3G-SDI, USB3.0 video output simultaneously. 4K video over IP or HDMI optional
• 3G-SDI compatible with Blackmagic Design ATEM (e.g. 1080p50/1080p60)
• 4K video over IP, H.264, H.265 encoding
• WDR (wide dynamic range), 3D noise reduction adjusted via OSD menu, and IP address setting via OSD menu
• Whisper quiet PTZ design, accurate pan tilt motor control
• Standard Serial VISCA, IP VISCA, PELCO-P/D control protocol, IP VISCA over TCP and UDP
• 128 presets
• Support POE: one single CAT5/6 to get video, control and power supply
• Support image flip function, camera can be installed up or upside down
• Matte Black and White models (W)
• Supported by vMix
• 3 year warranty
• IR remote control

SPECIFICATIONS EVERET EVP412W UHD PTZ CAMERA

Camera	EVP412W
Sensor	Sony IMX415 1/2.8 inch 8.42 MP CMOS Sensor
Color Space	8bit 4:2:2; ISP RAW (12bit)
Video

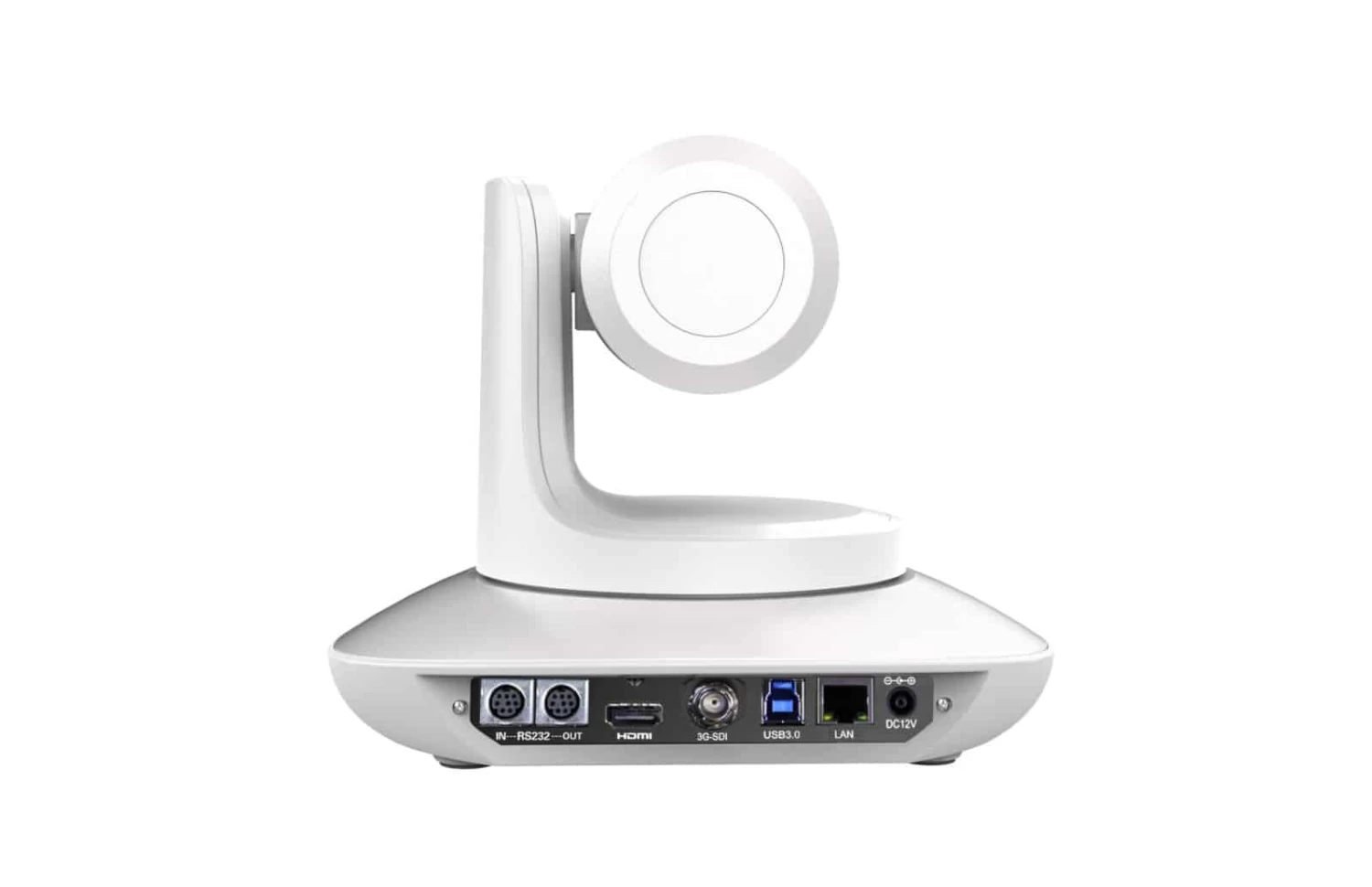

Video interface	HDMI / 3G-SDI* / USB 3.0 (type-B) / RJ45 (IP)   *Level A and B
Video Encoding	H.264/H.265
Streaming Protocols	RTMP / RTSP / SRT
Bitrate control	Variable or Constant
Video Bitrate	1024Kbps ~ 51200Kbps
I-Frame Interval	3 – 120
Video format
HDMI	3840x2160P30/25 1920x1080P60/50/30/25/59.94/29.97/24 1920x1080I60/50/59.94 1280x720P60/50/30/25/59.94/29.97
3G-SDI	1920x1080P60/50/30/25/59.94/29.97/24 1920x1080I60/50/59.94 1280x720P60/50/30/25/59.94/29.97
USB 3.0 (type-B)	USB 3.0 1920*1080P60/50/30/25 1280*720P60/50/30   USB 3.0 & USB 2.0 1280*720P25 1024*576P30   USB 2.0 960*540P30 640*360P30 512*288P30
RTMP / RTSP / SRT	Main Stream 3840×2160@15~301920×1080@15~601280×720@15~601024×576@15~60Sub Stream1280×720@15~301024×576@15~30 640×360@15~30
Lens
Optical Zoom	12x
Digital Zoom	2x
Aperture	F1. 8(Wide) – F2.8(Tele)
Focal Length	f=3.92～47.32mm
Horizontal Viewing Angle	72.5° (Wide) – 6.3°(Tele)
Vertical Viewing Angle	42.72° (Wide) – 3.66 (Tele)
Diagonal Viewing Angle	78.58° (Wide) – 7.42° (Tele)
PTZ
Speed by Zoom	ON/OFF
Pan/Tilt rotation range	Pan: -170° ~+170° Tilt: 30°~+90°
Pan/Tilt rotation speed	Pan: 0.1°~120°/s Tilt: 0.1°~80°/s
PTZ Freeze	Yes
Pan & Tilt Speed	5 – 24
Zoom Speed	1 – 7
Presets	IR Remote : 10 WebUI: 128 EVKB200N: 128 Serial: 128
Save AE & WB settings in preset	Not supported
Preset Speed Pan & tilt	5 – 24
Preset Speed Zoom	1 – 7
Shutter Speed	1/1 – 1/10000s
Iris	F1.8 – F14
Minimum Object distance	Wide: 1m ～INF; Tele：1.5m～INF
Video S/N Ratio	>50dB
Minimum Illumination	0.1 lux
Focus	Auto / Manual / One Push Auto Focus
Gain Level	0-30Db
White Balance Modes	Auto / Manual / Auto Tracking / One Push / Indoor / Outdoor /
Exposure Modes	Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority
Wide Dynamic Range Level	Levels 1-6
Gamma	Levels 0-8
Anti-Flicker	OFF / 50Hz / 60Hz
3D NR	OFF / Auto / Level 1-4
2D NR	Yes
Image Flip	Yes
Image Mirror	Yes
Back Light Compensation	Yes
Tally Light	Yes
Control
Network (RJ45)	HTTP / ONVIF / VISCA over IP (TCP&UDP) / HTML5 (WebUI)
Serial	RS232 / RS422 / RS485 / PELCO P/D
IR Remote	Yes
Daisy Chain	Yes, up to 7 cameras
USB	USB3.0(UVC1.5), USB2.0(UVC1.1)
Visca over IP Port	52381
Network
Default IP	192.168.1.188
Port Speed	1 Gb/s
PoE	POE+(IEEE802.3at)
DHCP	Yes
HTTP Port	80
RTSP Port	554
RTSP Encrypt	Yes
General
Environment	Indoor
Operating Temperature	-10℃~50℃
Operating Humidity	≤80%
Power input	DC12V/POE+(IEEE802.3at)
Power Consumption	PoE+ : 9W DC in: 9W
Dimensions (LxWxH)	220mm×190mm×173mm
Weight	1.4 KG
Color	Black/White

INCLUDED BY DEFAULT

• EVP412 PTZ Camera
• Remote Control
• Power Adapter
• Power Cable
• RS232 Cable
• USB3.0 Cable
