Everet EVP435N 4K UHD NDI PTZ Camera POE 35x Zoom NDI|HX

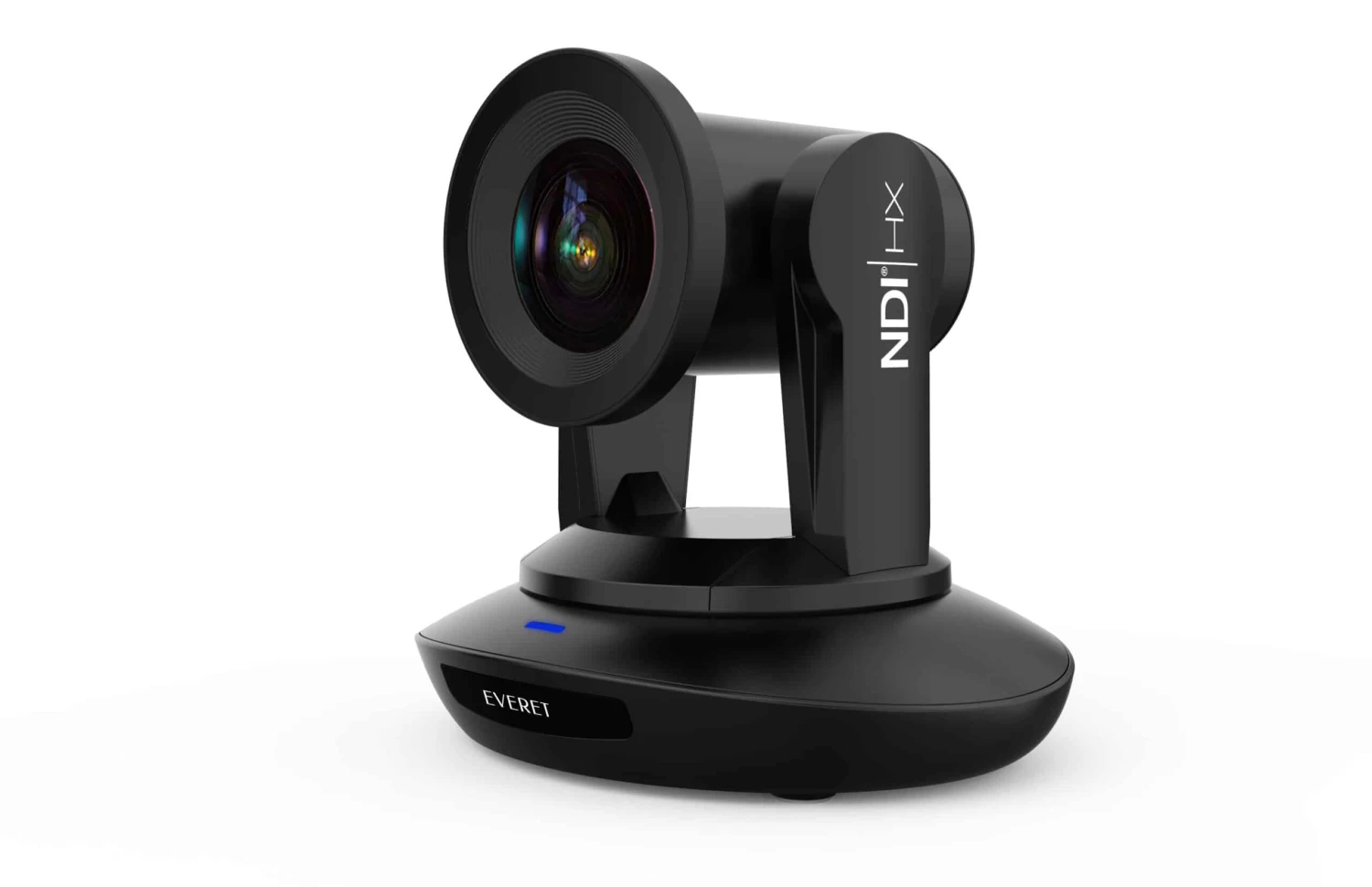

Everet EVP435N 4K UHD NDI PTZ Camera with POE

The Everet EVP435N 4K UHD PTZ camera with NDI® is a professional grade 4K Ultra HD video camera with NDI|HX 2, HDMI, 3G-SDI, IP output interface. Simplifying setup for live streaming systems supporting PoE, high quality 4K video, tally and control using a standard gigabit enabled network and native integration of industry standard video software including Wirecast, xSplit, OBS, vMix, Livestream studio, Tricaster and more. With the 4K wide angle optical lens, 35x optical zoom, 0.1lux minimum illumination and low latency, ideal for broadcasting, lecture capture and video conferencing.

KEY FEATURES

• Advanced ISP, high quality 1/1.7 inch 12MP Sony sensor, providing 3840×2160 p30 Ultra HD video resolution
• 4K lens with 35x Optical Zoom + 2x Digital Zoom, with 60 degree field of view
• NDI|HX, 3G-SDI, HDMI USB 3.0 output video simultaneously
• 4K video over NDI|HX and HDMI
• NewTek NDI v4.5 video transmission and control
• IP Video Streaming, includes both H.264, H.265 video encoding
• 3G-SDI compatible with Blackmagic Design ATEM SDI level-B  (e.g. 1080p50/1080p60)
• WDR, 3D Noise Reduction feature
• Power over Ethernet (PoE) support: get video, control, tally and power supply with one CAT5/6 cable
• Image Flip function, up to 128 user defined presets, built-in tally light
• Special Focusing Algorithm: fast and precise focusing performance when zooming or moving
• IP, HDMI, 3G-SDI, USB3.0 outputs
• Whisper quiet PTZ design, accurate pan tilt motor control
• Standard IP VISCA, Serial VISCA, PELCO-P/D control protocol; IP VISCA over TCP/UDP
• Matte Black and White models (W)
• NDI|HX compatible with H265
• Supported vMix PTZ NDI Camera
• 3 years warranty
• IR remote control

SPECIFICATIONS EVERET EVP435N 4K NDI PTZ CAMERA

Video Format	HDMI (v1.4)	3840*2160P30/25 1920*1080P60/50/30/25/59.94/29.97/24 1920*1080i60/50/59.94 1280*720P60/50/30/25/59.94/29.97
	SDI	1920*1080P60/50/30/25/59.94/29.97/24 1920*1080I60/50/59.94 1280*720P60/50/30/25/59.94/29.97
	NDI | HX 2 (v4.5 SDK)	3840*2160P30/25 1920*1080@3~30, 1280*720@3~30, 1024*576@3~30, 640*360@30 (low bandwidth mode)
	IP	Main Stream: 3840*2160P30/25, 1920*1080@3~30, 1280*720@3~30, 1024*576@3~30; Sub Stream: 1280*720@3~30, 1024*576@3~30, 640*360@3~30.
	USB 3.0	1920*1080P60/50/30/25 1280*720P60/50/30 1280*720P25 1024*576P30 960*540P30 640*360P30 352*288P30
Video Interface	HDMI (V1.4), 3G-SDI, NDI|HX, USB 3.0
Sensor	Sony CMOS sensor 1/7” 12.4MP
Zoom	F5.8～203mm(35X), F1.5 – 4.8. View Angle:60°(Far)-2.02°(Near)
Rotation Angle	Pan: -170° ~ +170°;      Tilt: -30° ~ +90°
Rotation Speed	Pan: 0°~120°/s ;            Tilt: 0°~80°/s
Preset:	Remote controller: 10; RS232: 128; Accuracy: 0.1°
Control Port	RS232, RS485,RJ45
Network Speed	1000M
Video encode	H.264/H.265(default: H.264)
Bit Rate Control	Variable Bit Rate, Constant Bit Rate
Video Bit Rate	1024Kbps~16384Kbps
IP Protocol	TCP/IP, HTTP, RTSP, DHCP ,RTMP, Onvif(2.4), NDI(V4.5) Visca over IP(TCP&UDP), HTML5, Visca, Pelco P, Pelco D
POE	Supported
Daisy Chain	Support RS232 serial daisy chain
Minimum Lux	0.1 lux
White Balance	Auto/Indoor/Outdoor/Manual/One Push/ATW
Exposure	Auto/Manual/Shutter Priority /Iris Priority/Bright
Focus	Auto / Manual
Iris	Auto / Manual
Electric Shutter	Auto / Manual
Gamma	Supported
WDR	Supported
BLC	Supported
2D/ 3D Noise Reduction	Supported
Anti Flicker	OFF/50Hz/60Hz
Pan Tilt Flip	Supported
Input Voltage	DC12V/12W/2A PoE+ recommended (IEEE802.3at)
Dimension	220mm×190mm×173mm
Net Weight	1.5KG

INCLUDED BY DEFAULT

• EVERET EVP435N 4K NDI PTZ Camera
• DC12V Power Adapter
• Power Cable
• RS232 Cable
• IR Remote Controller
