EVERET EVP435NW 4K UHD PTZ Camera POE 35x Zoom HDMI IP 3G-SDI USB3 (B-STOCK)

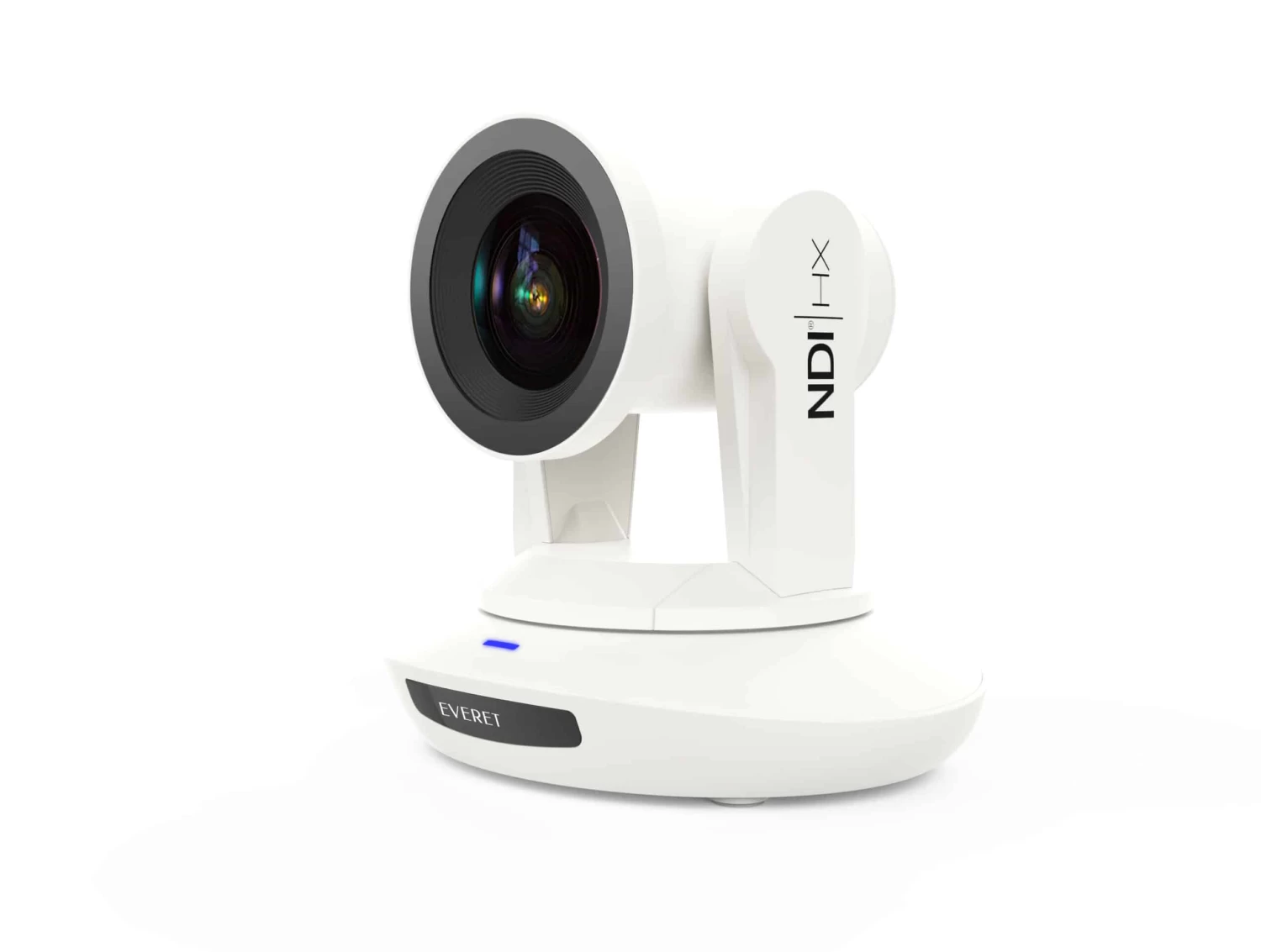

Everet EVP435NW 4K UHD IP PTZ Camera POE 35x zoom

The Everet EVP435NW is a professional 4K Ultra HD PTZ camera that supports NDI®|HX2, IP, HDMI, 3G-SDI, USB3.0 output and PoE. It has an with 35x optical zoom lens which makes it ideal for broadcast level AV solutions, high end video conference meetings and live streaming. The EVP435NW is Black Magic ATEM Television Studio Compatible also SDI at 1080p60 and 1080p60 1080p59.94.

KEY FEATURES

• Advanced Sony ISP, 1/1.7 inch 12MP sensor, providing 3840x2160p30 Ultra HD video resolution
• NDI®|HX2
• 4K wide angle optical lens: 35x optical zoom and 2x digital zoom
• 60 degree field of view;
• IP, HDMI, 3G-SDI, USB 3.0 interface
• 3G-SDI compatible with Blackmagic Design ATEM (1080p50/1080p60)
• WDR, 3D Noise Reduction
• Power over Ethernet
• 128 presets;
• Sony VISCA, IP VISCA, PELCO-P, PELCO-D control protocol
• Daisy chain supported.
• Image flip function
• Supported by vMix
• 3 years warranty

SPECIFICATIONS EVERET EVP435W

Model Number	EVP435NW PTZ Camera
Sensor	1/1.7 inch, 12 MP high quality Sony CMOS sensor
Video Format	HDMI	IP	SDI	USB3.0
	3840*2160p30/25,1920*1080p60/59.94/50/ 30/29.97/25/24, 1920*1080i60/59.94/50, 1280*720p60/59.94/50/ 30/29.97/25	Main stream1920*1080p30-1, 3840*2160p30-1 Sub stream: 1280*720p30-1 1024*576p30-1 640*360p30-1	1920*1080p60/59.94/50/30/29.97/25/24,1920*1080i60/59.94/50, 1280*720p60/59.94/50/29.97/30/25	USB3.0： 1920*1080p60/50/30/25, 1280*720p60/50/30/25, 1024*576p30 USB2.0： 1280*720p25, 1024*576p30,960*540p30, 640*360p30,512*288p30
Zoom	35x optical zoom + 2x digital zoom
FOV	2.02° (near) ~ 60° (far)
Min. Focus Distance	Wide: 0.3m               Tele: 1.5m
Preset	10 via remote controller; 128 via serial port; preset precision:0.1°
Rotation Angle	Pan: -170° ~ +170°; Tilt: -30° ~ +90°
Rotation Speed	Pan: 0°~120°/s; Tilt: -0°~80°/s
Control Port	RS232 / RS485 / RJ45
Video Port	HDMI / RJ45 / SDI / USB3.0 / USB2.0
Noise Reduction	2D&3D
SNR	>50dB
Focal Length	f＝5.8(near)～203mm(far)
Minimum LUX	0.1 LUX
White Balance	Auto / Manual / Auto Tracking / OnePush / Indoor / Outdoor
Anti Flicker	50Hz/60Hz/OFF
D/N Mode	Supported
Gamma	Supported
Mirror Image	Supported
Image Flip	Supported
Iris	Auto / Manual
Shutter Speed	Auto / Manual
Backlight Compensation	Auto / Manual
Focus	Auto / Manual
Video Encoding	H.264/H.265
Bit Rate Control	Variable Bit Rate, Constant Bit Rate
Video Bit Rate	1024Kbps~30720Kbps
Frames	50HZ:1fps~50fps  60HZ:1fps~60fps  （3840×2160 max. 30fps）
Protocol	TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP
POE	Supported
Input Voltage	DC12V/12W/2A PoE+ recommended (IEEE802.3at)
Dimensions	220mm×173mm×190mm
Net Weight	1.25KGS（2.8LBS）

INCLUDED BY DEFAULT

• EVP435NW PTZ Camera
• Remote Control
• Power Adapter
• Power Cable
• RS232 Cable
• USB3.0 Cable
