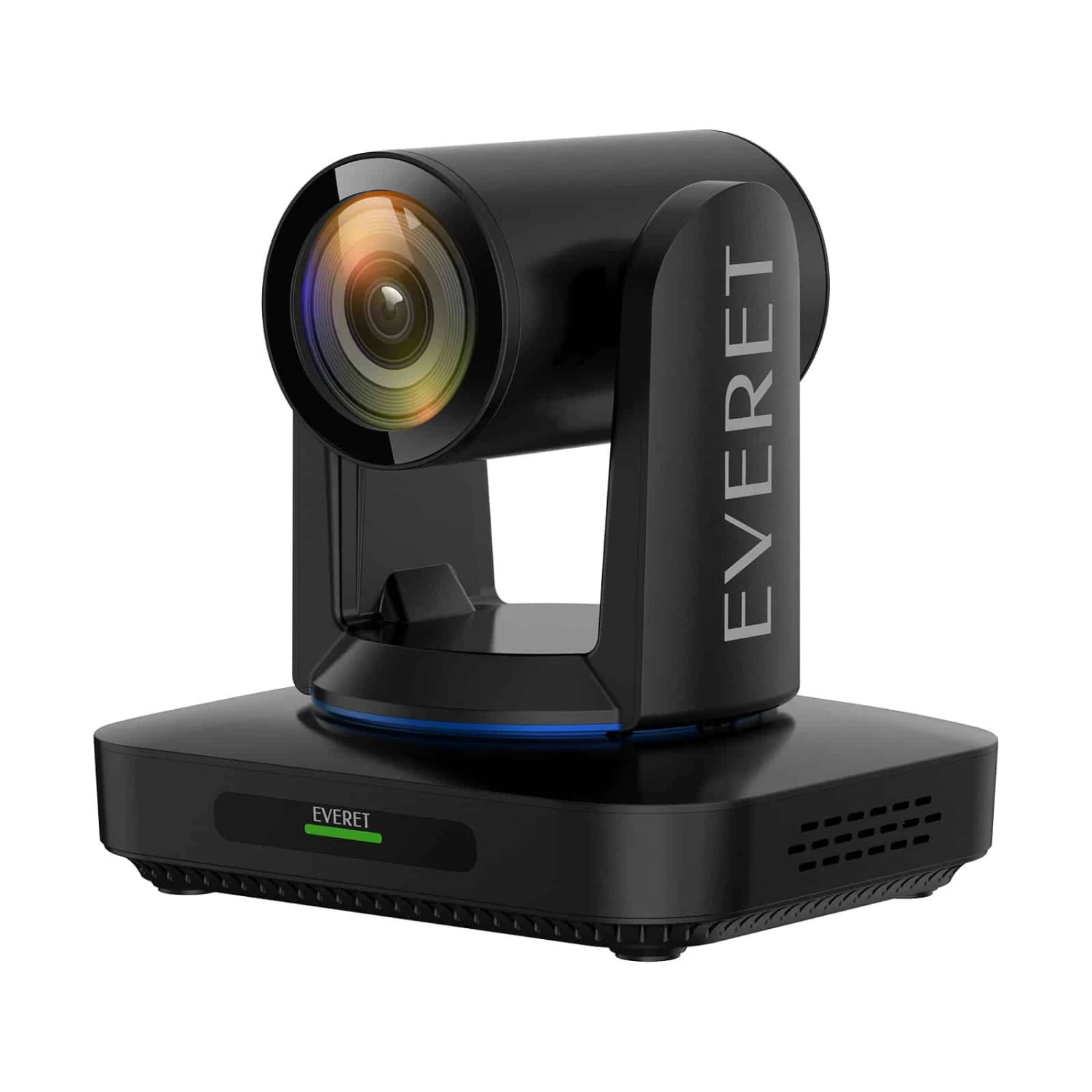

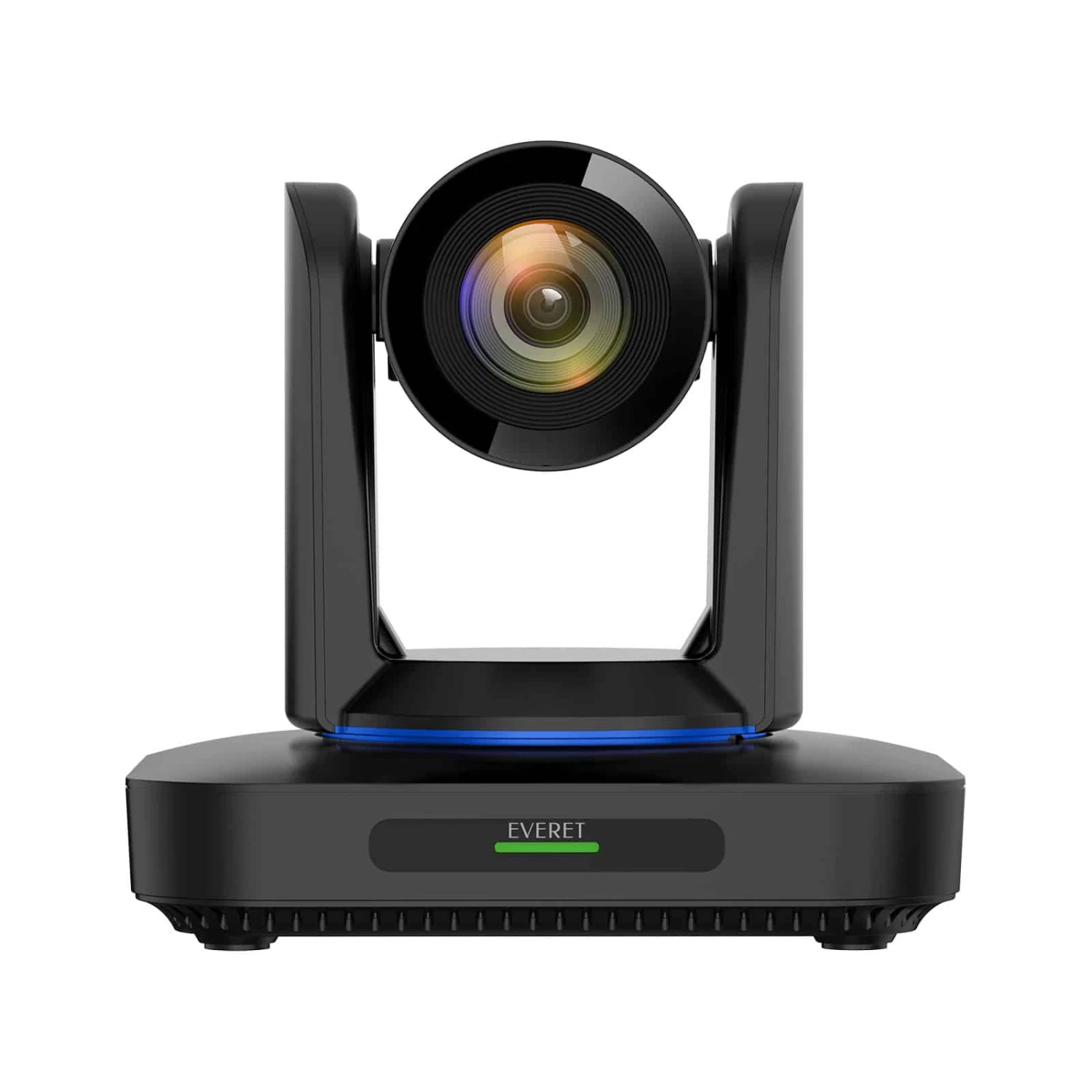

Everet EVX220 Premium Low Bandwidth NDI|HX3 PTZ Camera

The Everet EVX220 is a premium NDI^®|HX3 full HD remotely controllable PTZ camera with 20x Zoom. Simplifying setup supporting PoE, superior video quality, tally light and control using a standard gigabit enabled network and native integration with all NDI^® compatible systems and software on your network including Wirecast, xSplit, OBS, vMix, Livestream studio, Tricaster and more. NDI|HX3, offers both low bandwidth and low latency options, the NDI^®|HX3 encoding is visually lossless, even in bandwidth constrained environments.

The PTZ camera features resolutions up to 1080p60, a Panasonic 1/2.86″ 2.4MP CMOS sensor, and an integrated 20x optical zoom lens to capture high quality imagery. The camera offers also multiple simultaneous video output options including HDMI, 3G-SDI, UVC USB and IP streaming.

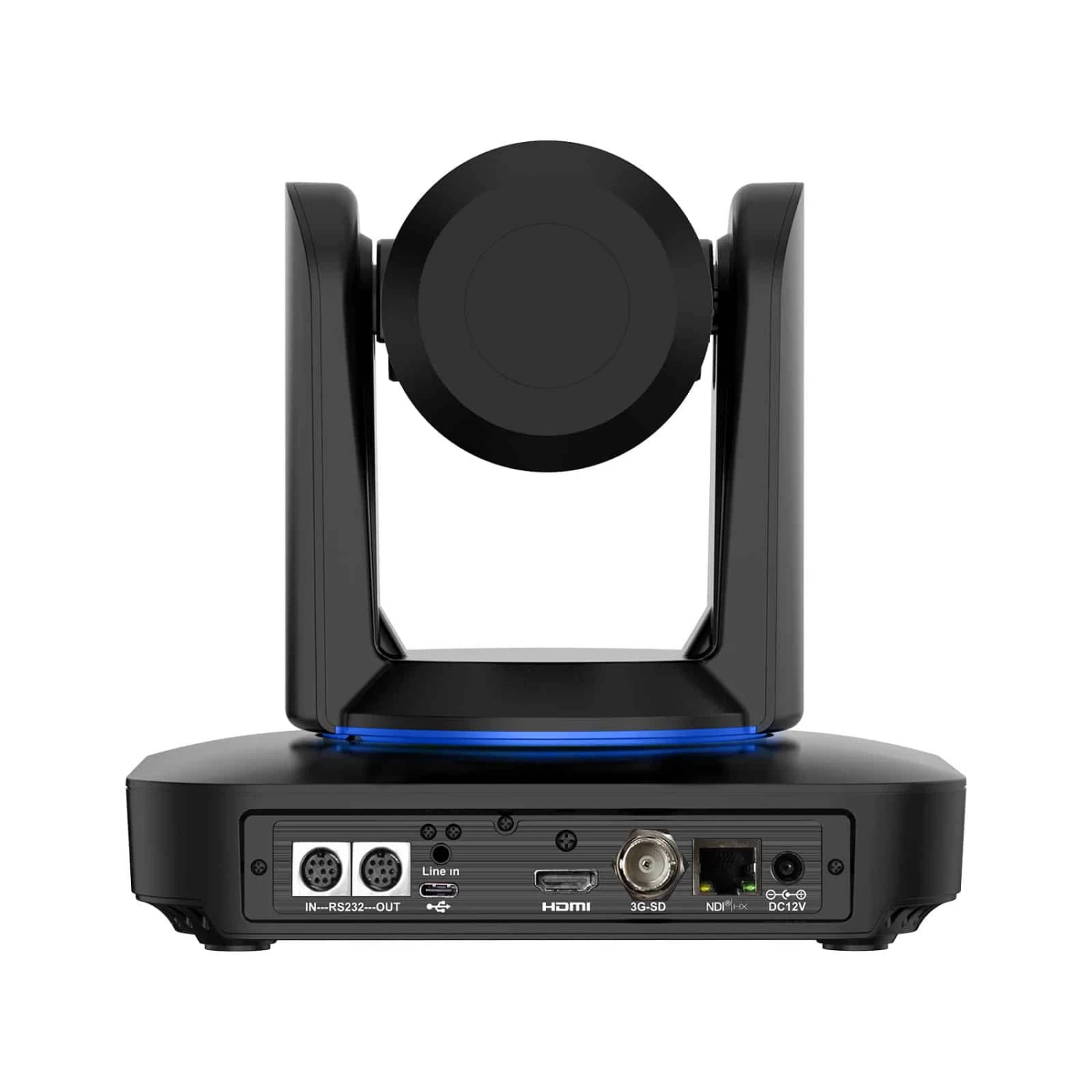

In addition to HDMI, 3G-SDI, and USB2.0 output up to 1080p60, the camera supports H.264/H.265 HEVC compression and it transmits IP video streams using NDI^®|HX3, SRT, RTSP, RTMP, and HTTP protocols. SRT enables the delivery of high-quality and secure, low-latency video across the public Internet. You can remote control the camera using IP RS-485, or RS-232 with separately available serial controllers, or you can utilize the included IR remote control.

With the Everet EVX series WebUI, it is easy to setup, upgrade, preview and operate the control of the camera from your browser without any plug-in. The camera is easy to install setting the IP address via OSD menu and powered using the included power adapter, or using PoE on selected networks with one RJ45 cable to get high quality video, tally light, control and power supply. Use the optional ceiling bracket to mount the camera upside-down and flip the camera image with the build-in feature.

KEY FEATURES

• NDI HX3 Certified
• 20X Optical Zoom
• Get video, PTZ control, tally and power supply with one CAT5/6 cable
• Compatible via NDI version 5
• Smooth pan-tilt-zoom
• Automatic NDI® tally support
• Support for HD video formats up to 1080p 60
• Superior Video Quality
• Efficient Bandwidth
• Low Latency
• Panasonic 1/2.86 inch CMOS 2.4MP sensor
• 60° Field of View
• HDMI, UVC USB, 3G-SDI compatible with Blackmagic Design SDI Level-B
• IP Streaming – RTSP/ RTMP/SRT/NDI®|HX
• Audio in connector
• Flexible Mounting options
• Available in Black and White colors
• 3-Year Warranty
• Webbased UI for easy setup, preview and control
• One-click firmware upgrades
• Supported vMix PTZ NDI Camera

SPECIFICATIONS EVERET EVX220 NDI HX3 PTZ CAMERA

Model Number	EVX220/EVX220W
Video Output	NDI®|HX3, 3G-SDI*, HDMI, USB2.0
Sensor	Panasonic 1/2.86″ CMOS 2.4 MP
Video Formats	HDMI	NDI®|HX3	3G-SDI	USB
	1920*1080P60/50/30/25/59.94/29.97/24/23.98;   1920*1080I60/50/59.94;  1280*720P60/50/30/25/59.94/29.97	Main Stream：1920*1080@15~60; 1280*720@15~60; 1024*576@15~60 Sub Stream： 640*360@15~60	1920*1080P60/50/30/25/59.94/29.97/24/23.98;   1920*1080I60/50/59.94;  1280*720P60/50/30/25/59.94/29.97	NV12 :1920*1080p5;1280*720p15;1024*576P25;800*448P30; YUY2:1920*1080p5;1280*720p10;1024*576P15;800*448P30; MJPG:1920*1080P30; 1280*720P30; 1024*576P30; 800*448P30 H.264/HEVC: 1920*1080P30; 1280*720P30; 1024*576P30; 800*448P30
Lens	20x Optical & 4x Digital Zoom
Shutter Speed	1/30 to 1/10,000 sec
Panning Angle	-170° to +170°
Tilting Angle	30° to +90°
Audio Input	3.5mm stereo audio input (line)
Horizontal Viewing Angle	60°(Far)-3,2°(Near)
Focal Length	4.9~98mm
Aperture	F1 ~ F14
Min. Object Distance	(Tele) 1.5M
Min. Illumination	0.1 lux
Tally	Automatic NDI® Tally support
User Interface	Webbased UI for easy setup, preview and control or NewTek NDI® Studio Monitor applications for remote configuration, control, and monitoring
Networking	1 Gigabit Ethernet
Video Encoding	H.264/H.265
Protocols	TCP/IP，NDI®|HX, SRT, HTTP，RTSP，DHCP，RTMP，ONVIF，VISCA over IP(TCP&UDP)，HTML5，VISCA，PELCO P/D
Control	RS232, RS422, RS485, NDI®|HX, RJ45 (VISCA over IP)、USB2.0(UVC1.1)
Power	POE+ (IEEE 802.3 at) or DC12V Power Supply
Colors	Black/White
Physical	Dimensions: 8.66 x 7.48 x 6.41 in (220 x 190 x 173 mm) Weight: 2.97lbs (1.35 kg)
EAN	8720387387113(B) 8720387387144(W)
	Subject to change without notice

INCLUDED BY DEFAULT

• EVERET EVX220 PTZ Camera
• DC12V Power Adapter
• Power Cable
• RS232 Cable
• IR Remote Controller
