Everet EVZ220 POV NDI|HX2 Box Camera – SRT SDI HDMI 20X Optical Zoom

Everet EVZ220 POV NDI|HX2 Box Camera – SRT SDI HDMI 20X Optical Zoom

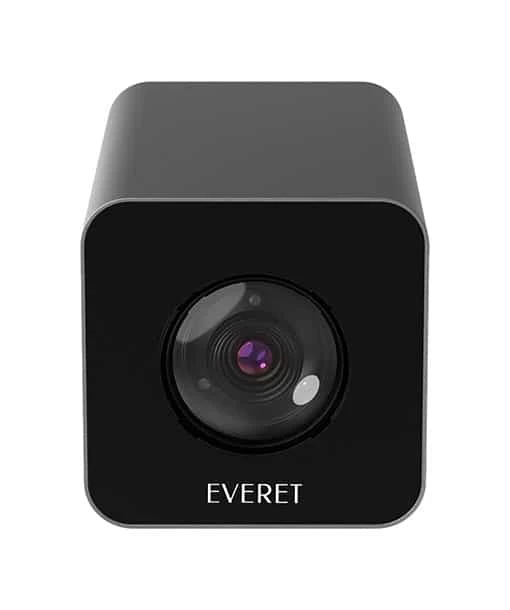

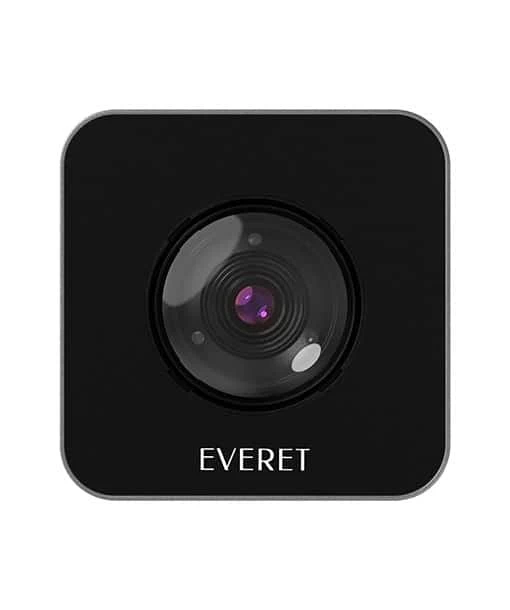

The EVERET EVZ220 is a is a professional grade Full HD POV video camera with NDI|HX, SRT, 3G-SDI (Level A and B), HDMI and Audio Line-in, 20x optical zoom and 60 degree wide field of view. Simplifying setup supporting PoE and simultaneous live NDI, 3G-SDI and HDMI outputs.

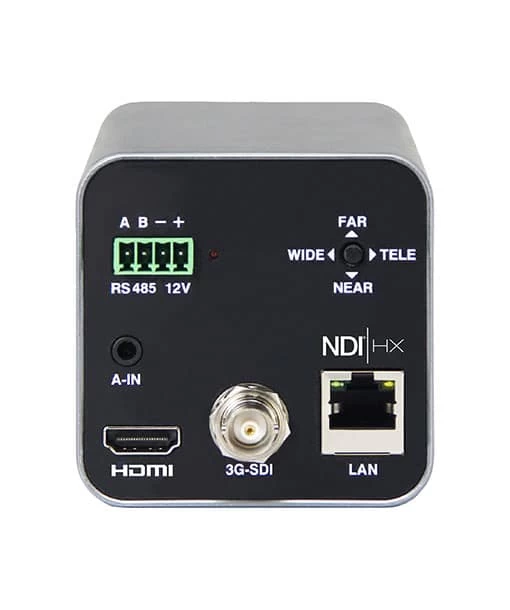

Control the camera via NDI, using the directional button on the back, and it also features a 4-pin terminal block that provides RS-485 control support using a separately available controller or software such as vMix. Perfect for enterprise live streaming, events and supplements of PTZ cameras.

KEY FEATURES

• Box POV Camera
• High-Quality 1/2.8″ 3.2MP CMOS sensor
• Up to 1920 x 1080p60 resolution
• NDI|HX2, SRT, HDMI, 3G-SDI (Level A and B) Output
• H.265/H.264 encoding
• IP Streaming (RTSP,RTMP,RTMPS,NDI|HX2,SRT)
• 20x Optical Zoom, PoE Support
• Capture up to 1080p60 Video
• 3.5mm Audio Line Input
• vMix Support
• Small form factor for tight installations
• Control via Visca, Pelco P/D, Onvif
• On screen display menu
• Communication interface RS485/RJ45 IP

SPECIFICATIONS EVZ220 POV Box Camera

Camera	EVZ220
Sensor	1/2.8″ Exmor CMOS Sensor 3.27 Megapixel
Video
Video interface	3G-SDI / HDMI / RJ45
Video Encoding	H.264 / H.265 / MJPEG
Streaming Protocols	NDI®|HX2/ RTSP/ RTMP/ RTMPS/SRT
Bitrate control	Variable or Constant
Video Bitrate	32Kbps ~ 16384Kbps
I-Frame Interval	1 – 120
Audio
Input	3.5mm Line-in / Mic-in
Output	HDMI+SDI+IP
Encoding	G.711A / G.711U / AAC_LC
Input gain	1-10
Video format
3G-SDI	1080P60/59.94/50/30/29.97/25 1080I60/59.94/50 720P60/59.94/50
HDMI	1080P60/59.94/50/30/29.97/25 1080I60/59.94/50 720P60/59.94/50
NDI®|HX2 / RTMP(S) / RTSP	1080P60/59.94/50/30/29.97/25 1080I60/59.94/50 720P60/59.94/50/30/25
Lens
Optical Zoom	20x
Aperture	F1. 6(Wide) – F3.5(Tele)
Focal Length	f=4.7mm～94mm
Horizontal Viewing Angle	60.2° (Wide
Presets	WebUI: 128 EVKB200N: 128 Serial: 128
Shutter Speed	1/1 – 1/10000s
Iris	F1.6 – F32
Minimum Object distance	30cm
Video S/N Ratio	>50dB
Minimum Illumination	0.5Lux(Day) 0.1Lux(Night) 0.005Lux(DSS)
Focus	Auto / Manual / One Push
Focus limit	10cm, 30cm, 1m, 2m, 3m, 6m, 10m, 50m, inf
Gain Level	-3 ~ +28Db
HLC (Highlight Compensation)	Off, 1 ~ 15
White Balance Modes	Auto / Manual / ATW / One Push / Indoor / Outdoor / 3000K / 4000K / 5000K / 6500K
Exposure Modes	Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority
Gamma	Levels 0-6
ICR (Infrared Cutfilter Removal)	Auto / Day / Night
Anti-Flicker	OFF / 50Hz / 60Hz
3D NR	OFF / Level 1-5
2D NR	Yes
Image Flip	Yes
Image Mirror	Yes
Back Light Compensation	Yes
Control
Network (RJ45)	ONVIF / VISCA over IP (TCP&UDP) / HTML5 (WebUI)
Serial	RS485 / PELCO P/D
IR Remote	Yes
Visca over IP Port	52381
Network
Default IP	192.168.1.162
Port Speed	1 Gb/s
PoE	Yes
DHCP	Yes
Multicast	Yes
HTTP Port	80
RTSP Port	554
Visca over IP Port	52381
General
Environment	Indoor
Operating Temperature	-10℃~50℃
Storage Temperature	-10℃~60℃
Power input	JEITA type (DC IN 12V @1A) / POE
Power Consumption	PoE+ : 12W DC in: 12W
Dimensions (LxWxH)	70mm × 70mm × 116mm
Weight	0.5KG

INCLUDED BY DEFAULT

• EVZ220 POV Box Camera
• Power Adapter
